19
USM-100H User Manual
When you place the USM-100 upright on the desktop, its front panel
appears as shown in Figure 4.1.
4.1.1
Front View

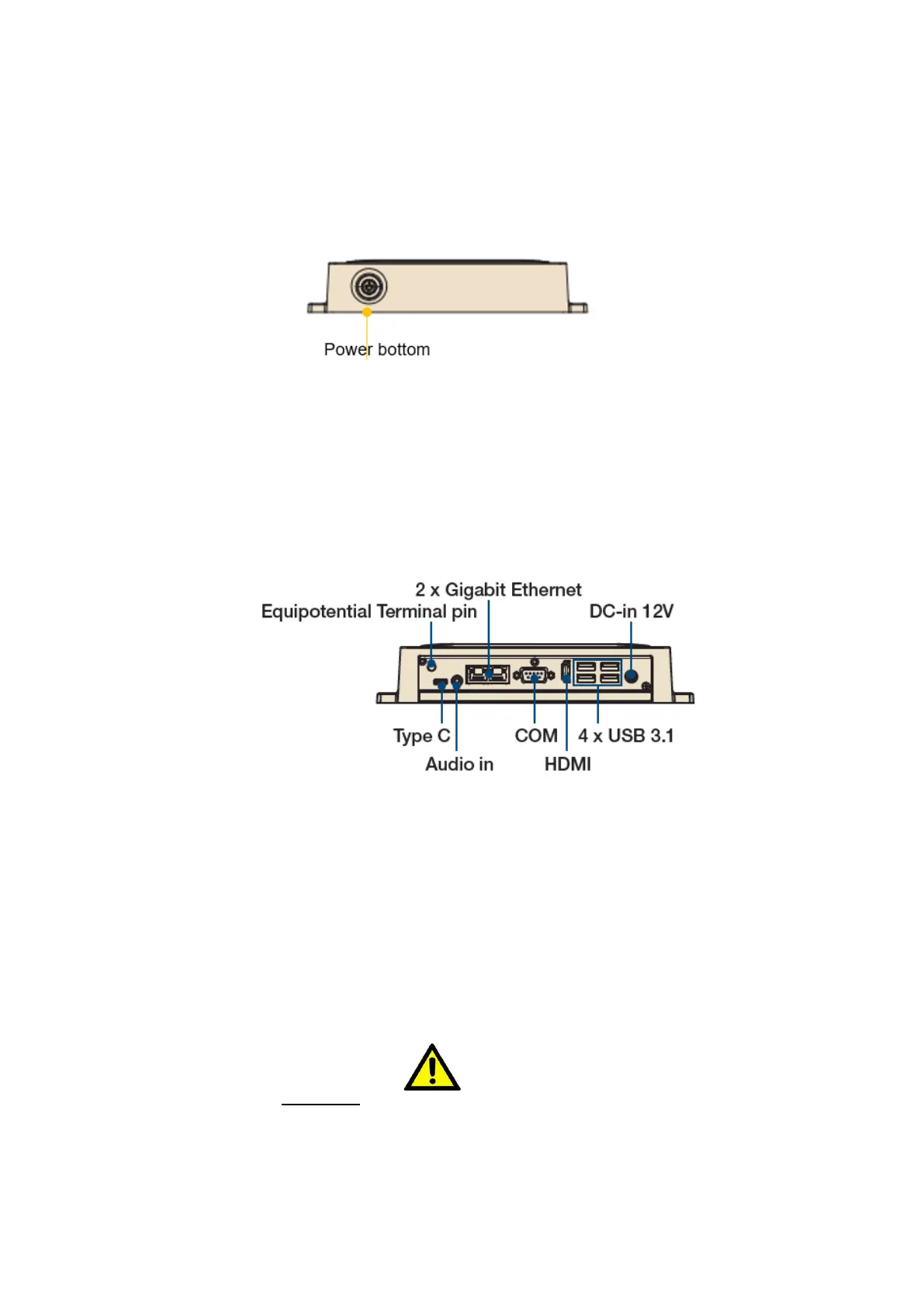

Figure 4-1 Front View of the USM-100H
4.1.2
Rear View
Most of I/O ports of USM-100H are located at the rear cover, including D,
COM port, HDMI port, Ethernet ports, USB ports, USB-C and so on.
Apart from the I/O ports shown in below fig 4.2,
Figure 4-2 Rear View of the USM-100
NOTE: Equipotential terminal need link to hospital ground/earth system
before system boot to protect operator and system.
CAUTION!
Please ensure that sufficient space is available around the USM-100H for heat convection. Do not
stack the USM-100H.
The mains coupler is used as “disconnect device”, and must be available as such, or the socket outlet
must be installed near the equipment and must be easily accessible, or an appropriate external
disconnect device must be externally added in the installation.
