3 USB-5800 User Manual
Chapter 1 Introduction
Redundant Power
USB-5800 modules feature two power input terminals, an input power range of +10
to +30 V
DC, and power redundancy support. For modules connected to two power
input sources, if one source is inactive or interrupted, the other power source is capa-
ble of taking over immediately. The USB-5800 modules can operate as normal with
only a single power source.
(If not using the USB hub function, the module can be powered via a USB 3.0port.)
BoardID Switch
The USB-5800 series modules feature a built-in DIP switch (BID) that is used to
define each module’s board ID. When multiple modules are integrated on the same
system, the board ID switch is useful for identifying each module’s device number.
After setting all the USB-5800 modules, users can identify each module in the system
using their device numbers. The default Board ID value is 0.
1.2 Installation Guide
Before USB-5800 module installation, please ensure you have the following neces-
sary components:
USB-5800 module
USB-5800 user manual
Advantech DAQNavi driver software (available on the accompanying DVD-
ROM)
Personal computer or workstation with a USB interface (running the
Windows 10/8/7/XP operating system)
10 ~ 30 V power supply (96PS-A40WDIN optional)
Other optional components are also available for enhanced operation:
DAQ Navi, LabView, and other third-party software
Once you have the necessary components and any additional accessories for

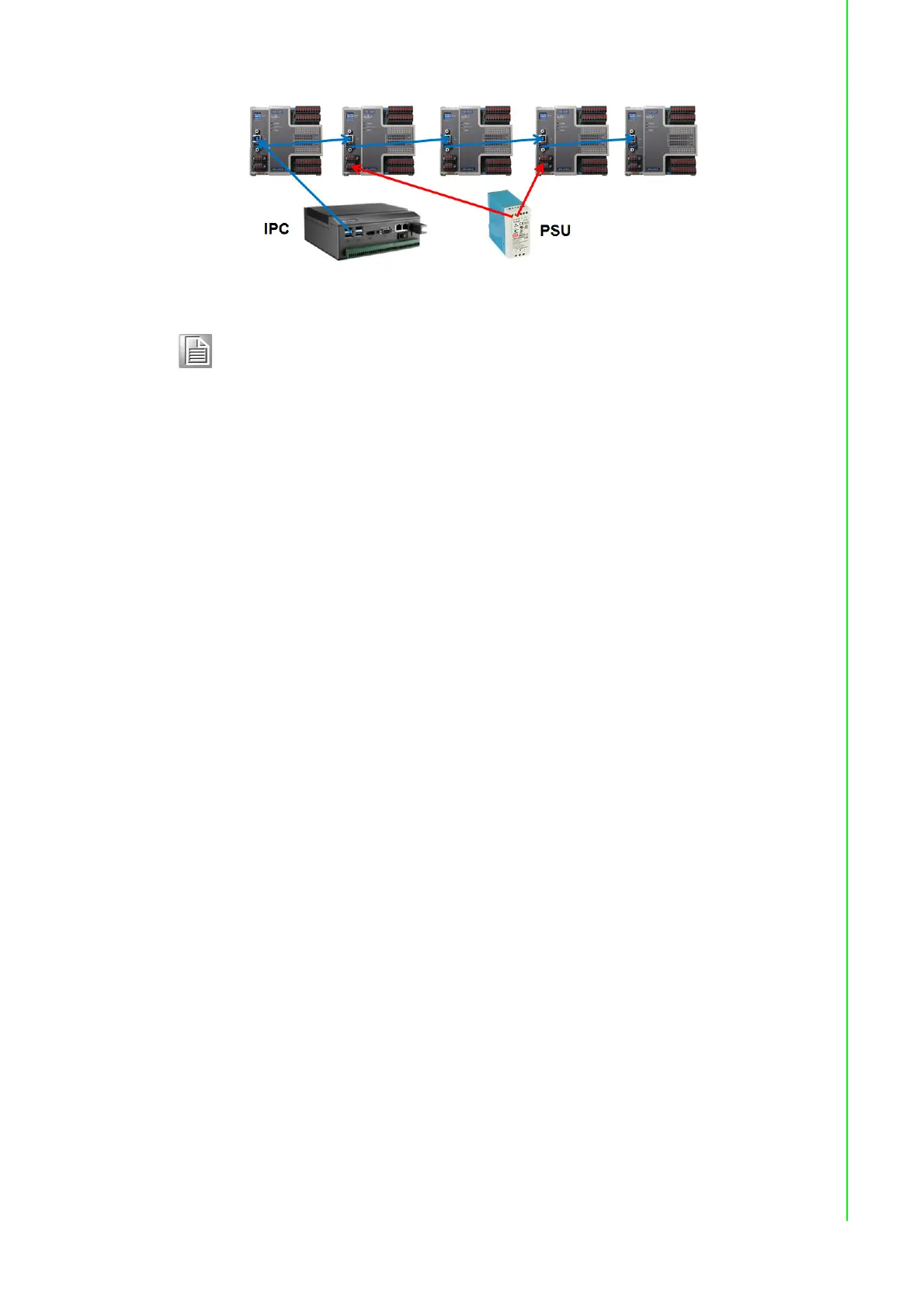

enhanced operation, you can begin installing your USB-5800 module. Figure 1.1 is a
flowchart that provides a broad overview of the software and hardware installation
procedures.
Note! The USB host (system) can support up to five levels of hubs. If more
than five levels are cascaded, the USB modules may malfunction.
