USB-4716 User Manual 8
3.1 Overview
Maintaining good signal connections is one of the most important factors in ensuring
that your application system is sending and receiving data correctly. A good signal
connection can avoid unnecessary and costly damage to your PC and other hard-
ware devices.
3.2 I/O Connectors
USB-4716 is equipped with plug-in screw-terminal connectors that facilitate connec-
tion to the module without terminal boards or cables.
3.2.1 Pin Assignment
Figure 3.1 on next page shows the pin assignments for the five 10-pin I/O connectors
on USB-4716.

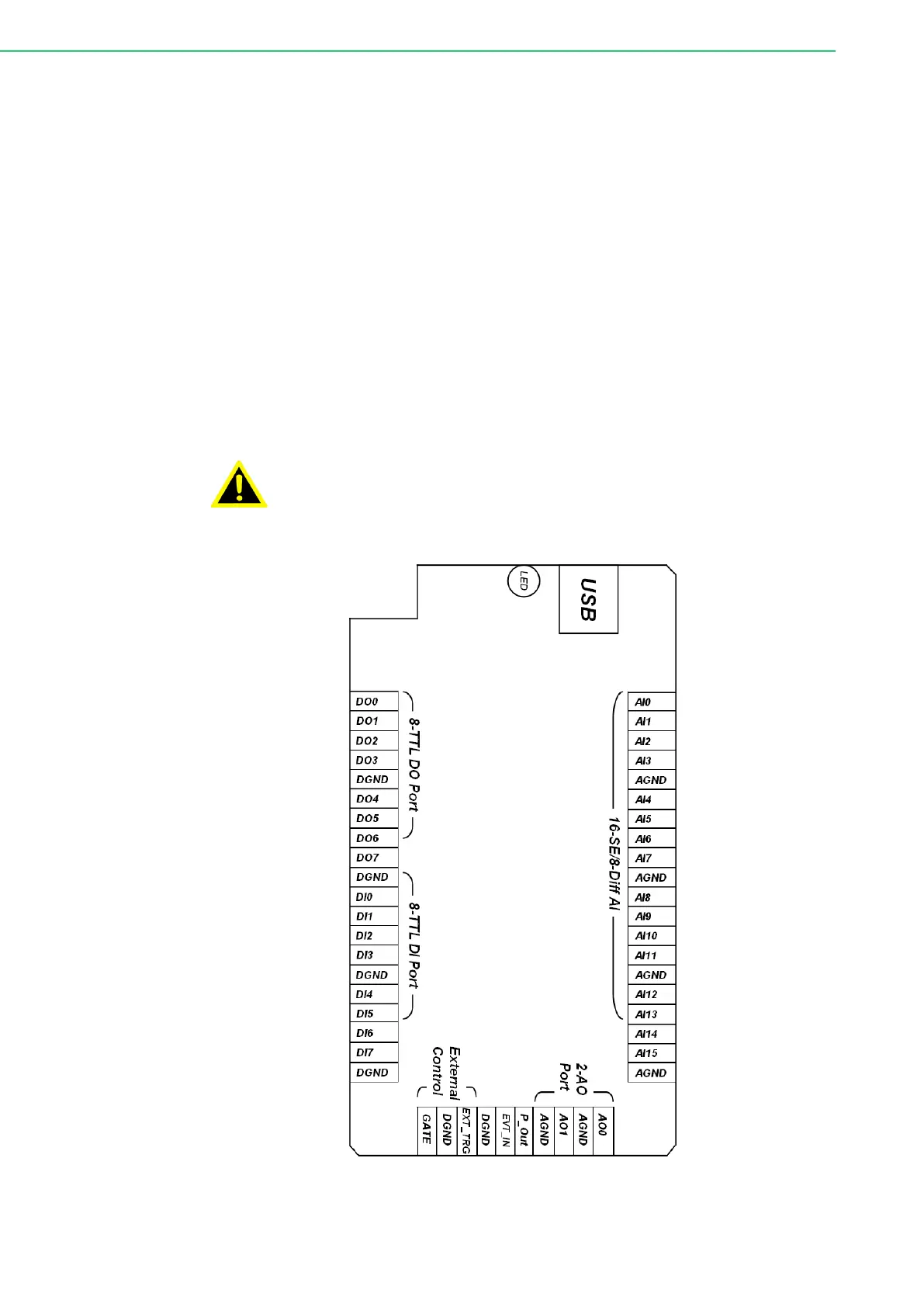

Figure 3.1 I/O Connector Pin Assignment
Warning! The two ground references AGND and DGND should be used sepa-
rately for their designated purpose. Do not connect them together.
