15 UNO-430 User Manual
Chapter 2 H/W Installation
2.3.1.6 SIM Slot
There’s one standard SIM Slot for supporting LTE function, labeled “CN5” on I/O
board. In addition to install SIM card on “CN5”, users are required to install a LTE
Module on“CN7” M.2 B Key to enable the functionality.
2.3.1.7 M.2 Connector
There are 3 x M.2 connector for M.2 cards including M.2 (Type 2242) key B (storage)
labeled “CN8” on motherboard, M.2 (Type 3052/3042) key B (5G/LTE) labeled “CN7”
on I/O board and M.2 (Type 2230) key E (WIFI/Bluetooth) labeled “CN8” on I/O
board.
You can find detailed installation in Chapter 2.4.3.

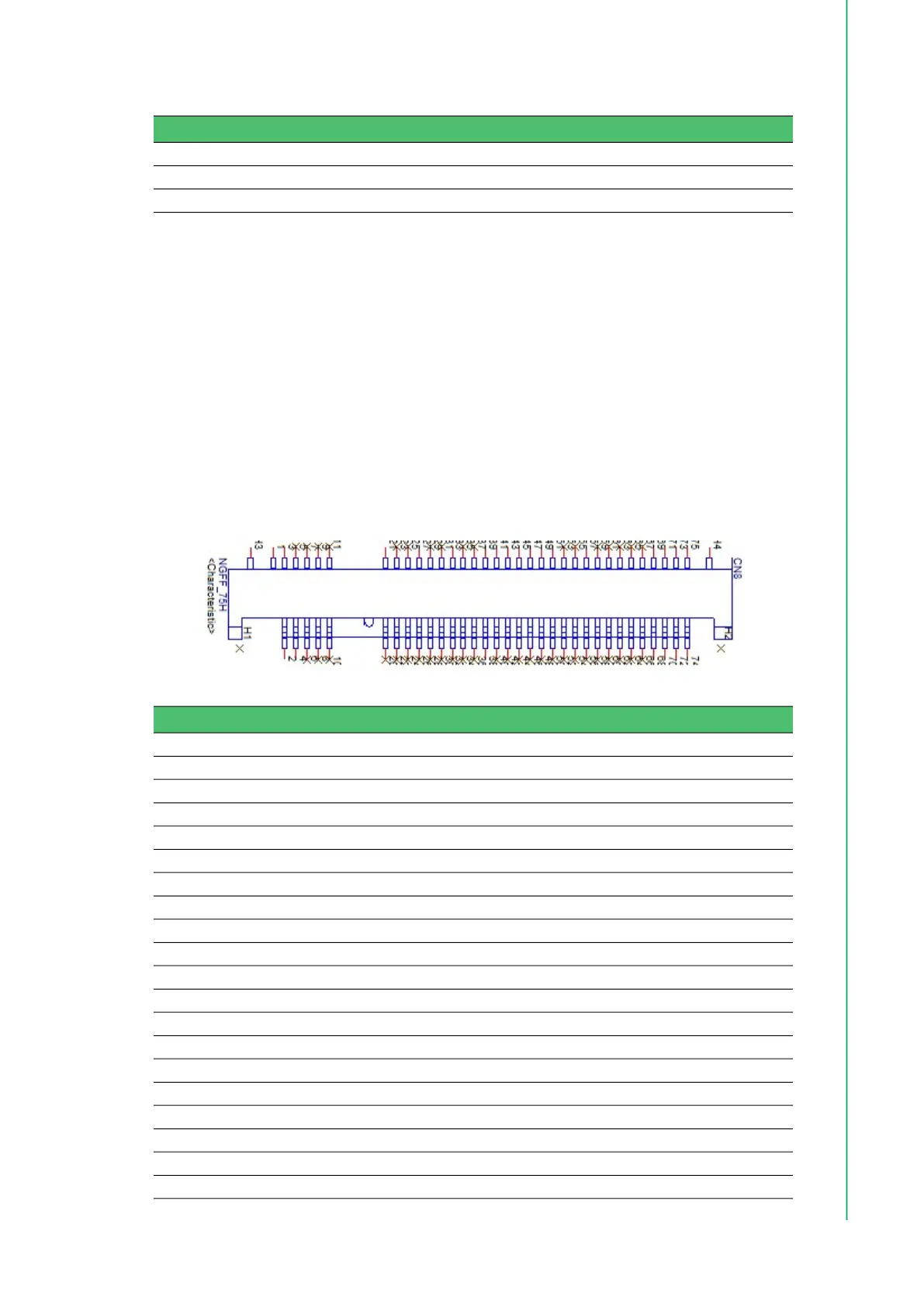

MB M.2 B-Key 2242 Storage Connector (CN8)
Table 2.5: LED Indicators
Left LED Right LED
10 Link 100 Left 1000 Link Active
Off Orange Green Orange
Table 2.6: M.2 B Key Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 GND 2 +V3.3
3 GND 4 +V3.3
5 NC 6 NC
7 NC 8 NC
9 NC 10 NC
11 GND 12 Mechanical notch B
13 Mechanical notch B 14 Mechanical notch B
15 Mechanical notch B 16 Mechanical notch B
17 Mechanical notch B 18 Mechanical notch B
19 Mechanical notch B 20 NC
21 GND 22 NC
23 NC 24 NC
25 NC 26 NC
27 GND 28 NC
29 NC 30 NC
31 NC 32 NC
33 GND 34 NC
35 NC 36 NC
37 NC 38 DEVSLP
