UNO-430 User Manual 12

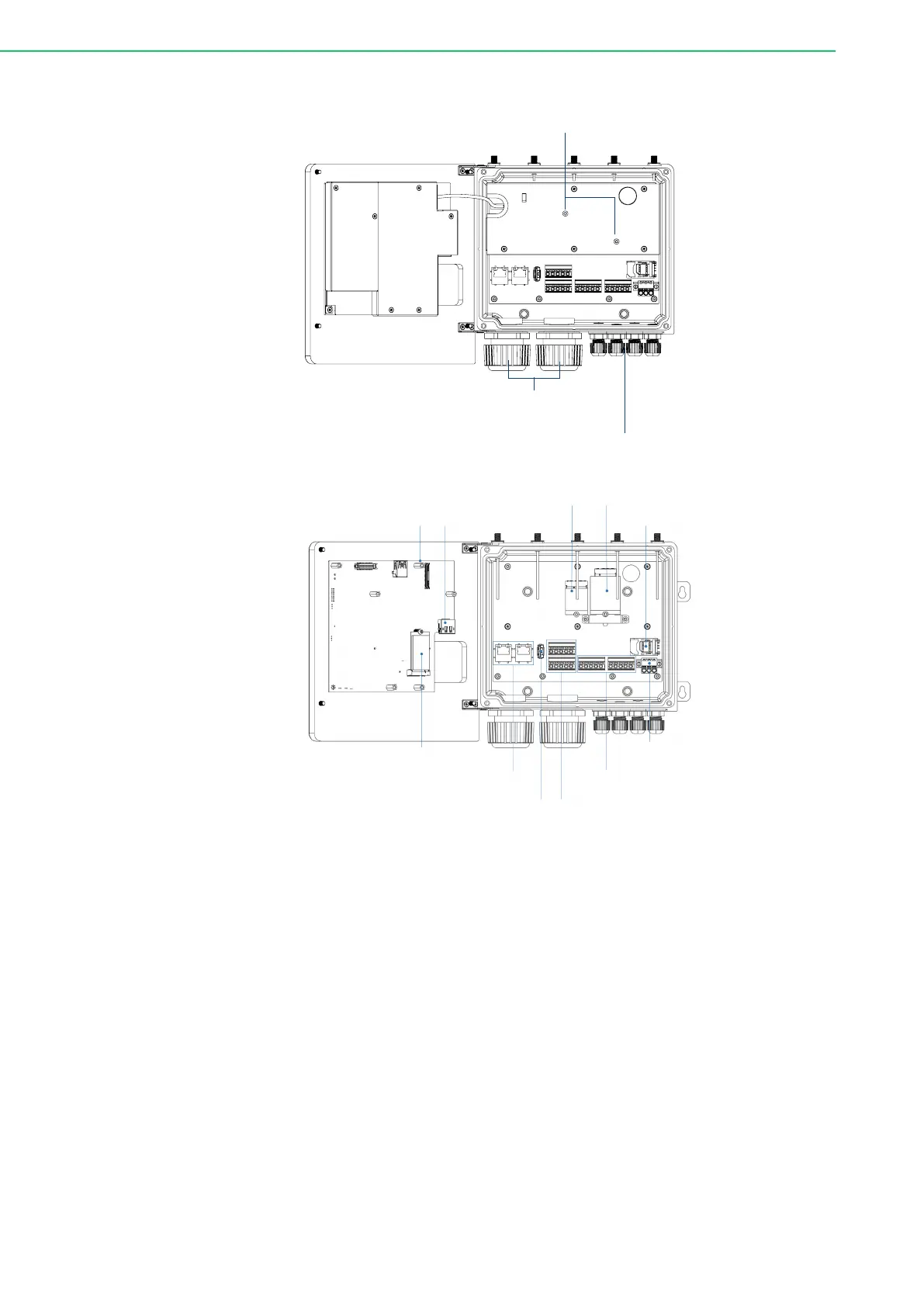

Figure 2.7 UNO-430 Box open I/O View
2.3.1.1 SMA Connector
UNO-430 provides five SMA connectors that supports to connect WiFi/BT, LTE and
GPS Antenna when install those modules onto the board.
2.3.1.2 Cable Gland
UNO-430 provides four M12 cable glands (COM A / COM B / COM C / Power) and
two M32 cable glands (LAN A / LAN B) to support easy wiring/connecting to the inner
terminal block and RJ45 connectors.
COM A is use for CN20/CN21 to offer RS-232 (console). COM B/COM C is use for
CN18/CN19 to offer RS-422/485 (isolated) serial communication interface ports.
LAN A / LAN B is use for RJ45 LAN cable. The cable gland on the far right is use for
CN25 to support DC power source.
You can find detailed cable gland installation in Chapter 2.4.1.
Screws reserved for MultiTech Dragonfly
TM
card
M32 cable gland
M12 cable gland
USB 3.0
M.2 E-key for Wi-Fi
M.2 B-key for storage
RS-422/485
DP 1.2
Standard SIM card slot
M.2 B-key for LTE/5G
RS-232 (console)
RJ45 LAN
Power connector
USB 2.0
