UNO-430-E1H User Manual 14

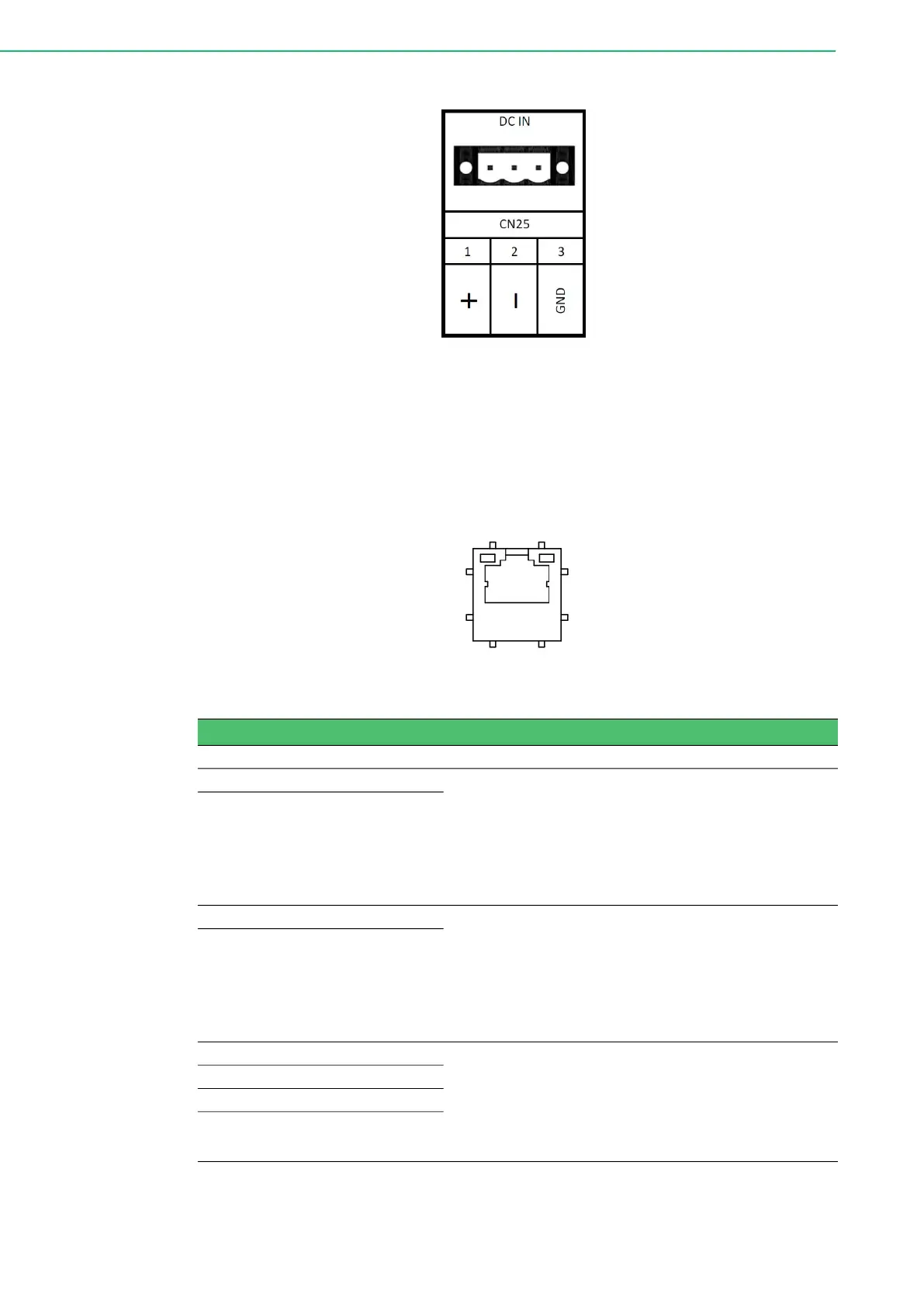

Figure 2.11 Power Connector Pin Assignments
2.3.1.4 LAN Connector
UNO-430 is equipped with two Gigabit LAN controllers. An Intel® i210 Ethernet con-
troller that complies with IEEE 802.3u 10/100/1000 Base-T is used as the controller
chip. The Ethernet port is a standard RJ-45 jack. Additionally, LED indicators are pro-
vided on the front of the device to indicate the system's Link (off/green/orange) and
Active (green) status.
Figure 2.12 LAN Connector
Table 2.4: Ethernet Connector Pin Assignments
Pin Signal Name Description
1 MDI0+ In BASE-T: Media Dependent Interface[0]:
1000BASE-T: In MDI configuration, MDI[0]+/- cor-
responds to BI_DA+/- and in MDI-X configuration
MDI[0]+/- corresponds to BI_DB+/-.
10BASE-T and 100BASE-TX: In MDI configuration,
MDI[0]+/- is used for the transmit pair and in MDIX
configuration MDI[0]+/- is used for the receive pair.
2 MDI0-
3 MDI1+ In BASE-T: Media Dependent Interface[1]:
1000BASE-T: In MDI configuration, MDI[1]+/- cor-
responds to BI_DB+/- and in MDI-X configuration
MDI[1]+/- corresponds to BI_DA+/-.
10BASE-T and 100BASE-TX: In MDI configuration,
MDI[1]+/- is used for the receive pair and in MDI-X
configuration MDI[1]+/- is used for the transmit pair.
4 MDI1-
5 MDI2+ In BASE-T: Media Dependent Interface[3:2]:
1000BASE-T: In MDI and in MDI-X configuration,
MDI[2]+/- corresponds to BI_DC+/- and MDI[3]+/-
corresponds to BI_DD+/-.
100BASE-TX: Unused.
10BASE-T: Unused.
6 MDI2-
7 MDI3+
8 MDI3-
