UNO-430-E1H User Manual 12

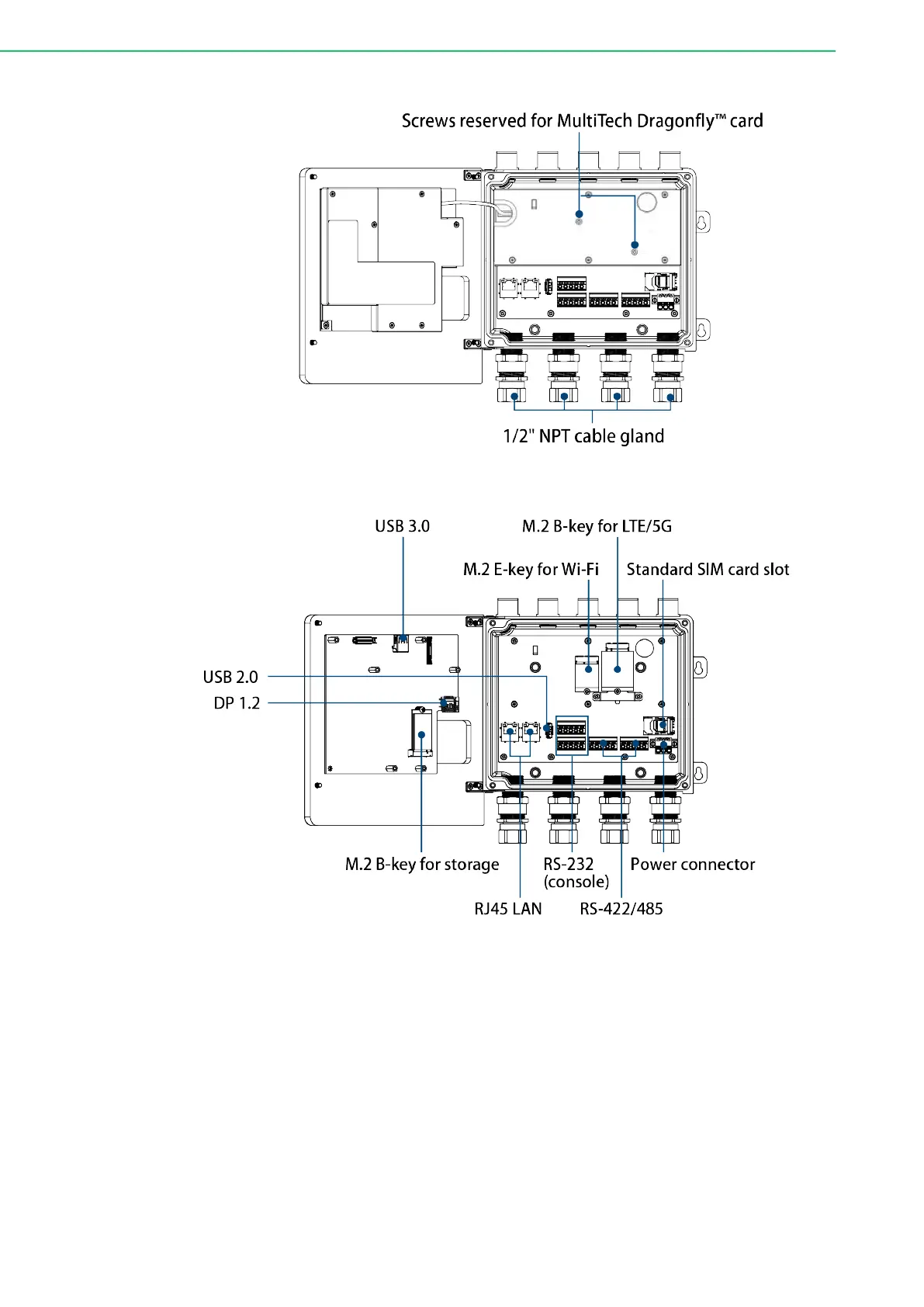

Figure 2.7 UNO-430 Box open I/O View
2.3.1.1 Cable Gland
UNO-430 provides four 1/2"NPT cable glands (I/O-A / I/O-B / I/O-C / Power) to sup-
port easy wiring/connecting to the inner terminal block and RJ45 connectors.
I/O-A is use for RJ45 LAN cable. I/O-B is use for CN20/CN21 to offer RS-232 (con-
sole). I/O-C is use for CN18/CN19 to offer RS-422/485 (isolated) serial communica-
tion interface ports. The cable gland on the far right is use for CN25 to support DC
power source. You can find detailed cable gland installation in Chapter 2.5.1.
