9 UNO-430-E1H User Manual
Chapter 2 H/W Installation

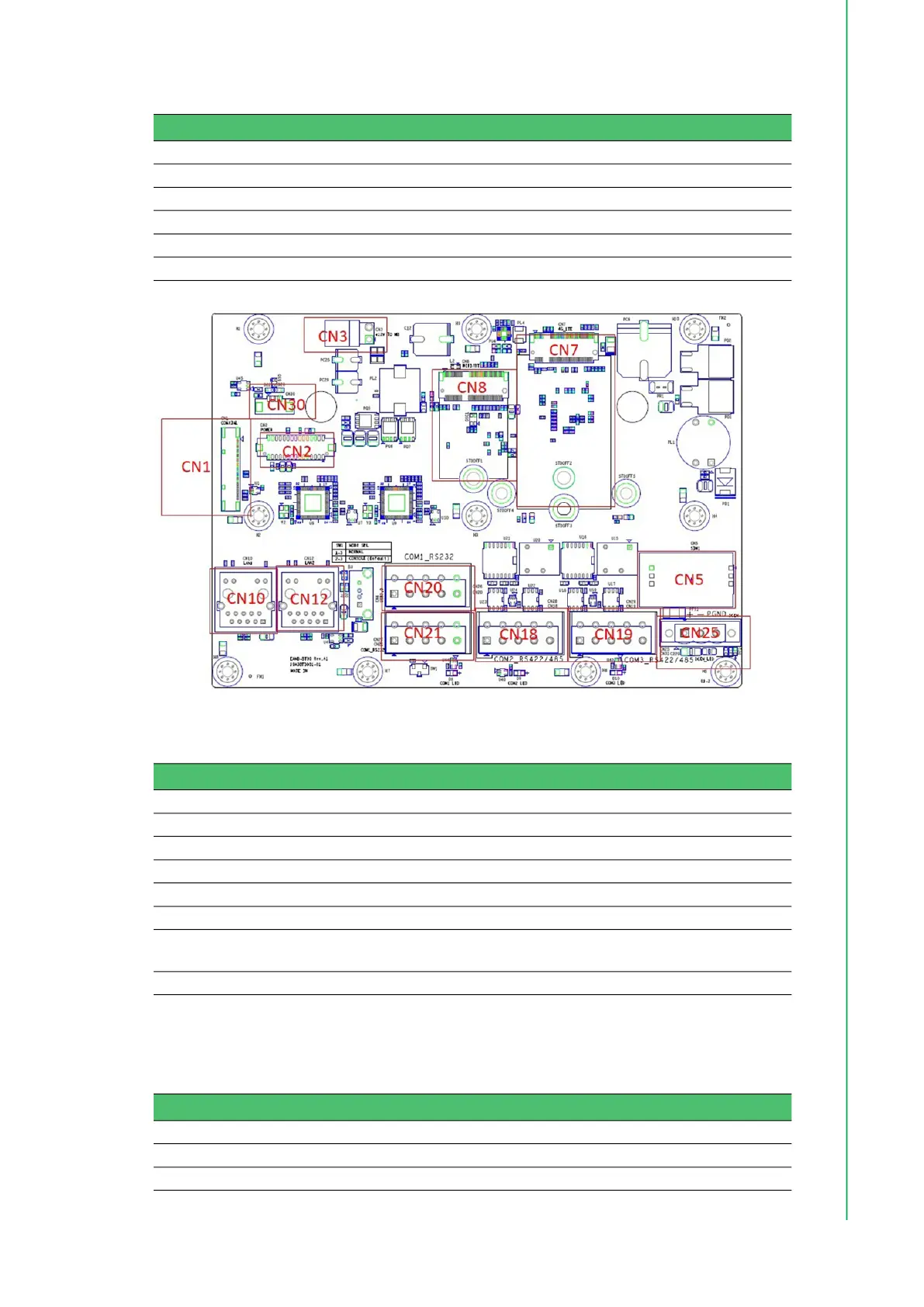

Figure 2.3 IO board connector locations
2.2 Jumper and Switch
Table 2.1: Motherboard Connector
Location Function Location Function
CN2 Memory slot CN9018 Debug port
CN9 Displayport CN9020 12V DC Input
CN27 USB3.0 CN9935 DC Output
CN8 M.2 B key for 2242 storage CN9028 Coaxial PCIe signal
CN19 RTC
Table 2.2: IO Board Connector
Location Function Location Function
CN1 Coaxial PCIe signal CN20/21 RS-232
CN2 MB DC Input CN18 RS-422/485
CN3 12V DC Output CN19 RS-422/485
CN10 LAN CN5 SIM slot
CN12 LAN CN7 M.2 B key 3042/3052 for LTE/5G
CN30 Internal USB (reserved for
MultiTech module)
CN8 M.2 E key 2230 for WiFi
CN25 DC Power Input
Table 2.3: Jumper and Switch List
Location Function
CN1(motherboard) Clear CMOS
SW1 (I/O board) RS-232 console mode function setting
