UNO-3483G User Manual 26
A.1 System I/O Address and Interrupt Assignment
A.2 Board Connectors and Switches
There are several connectors and switches on the inside board. The following sec-
tions tell you how to configure the hardware setting. Figure A.01 & A.02 show the
locations of the connectors and switches.

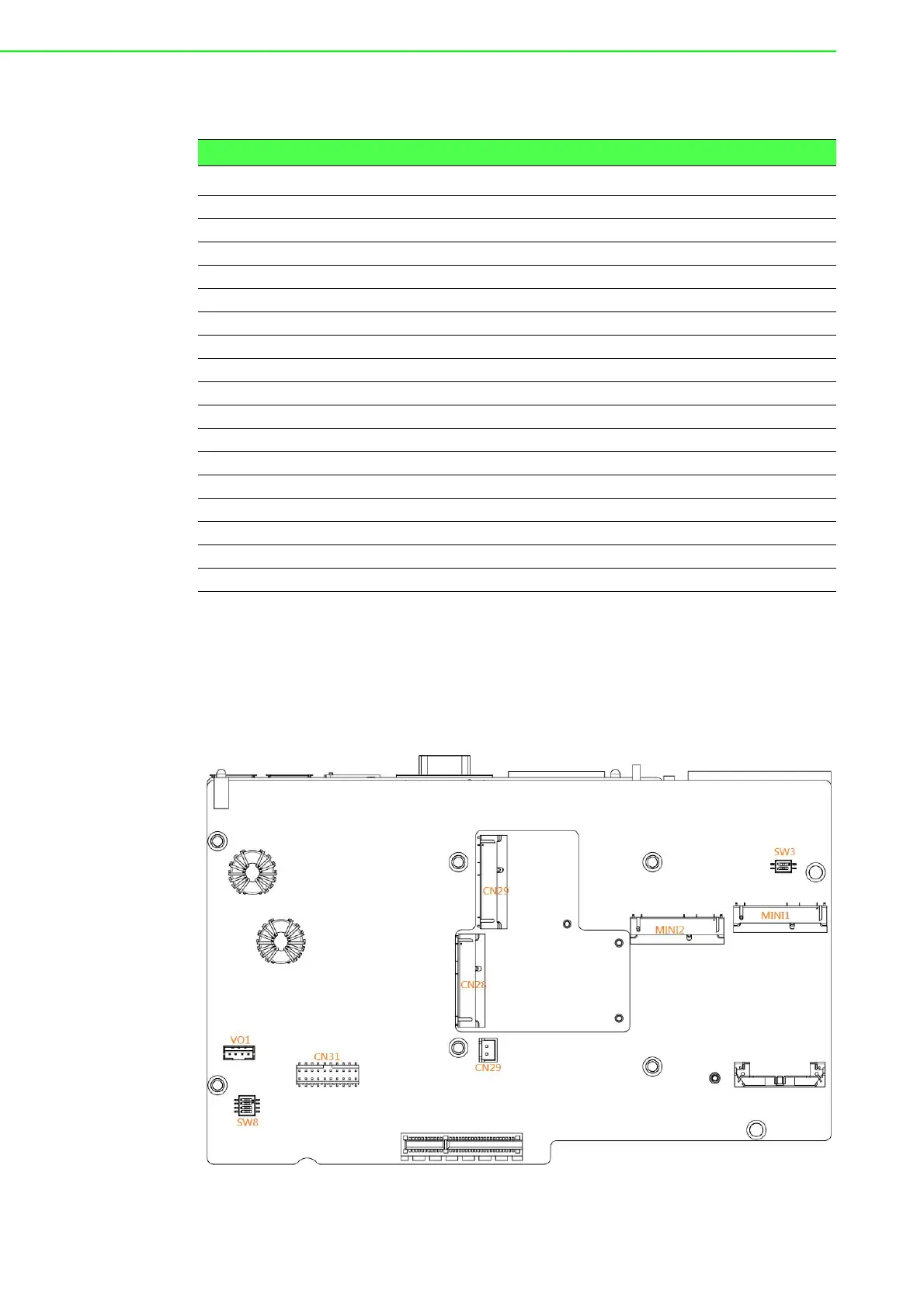

Figure A.1 Bottom view of System board
Table A.1: Interrupt Assignments
Interrupt# Interrupt source
NMI Parity error detected
IRQ0 System timer
IRQ1 Standard 101/102-Key or Microsoft Natural PS/2 Keyboard
IRQ2 Interrupt from controller 2 (cascade)
IRQ3 Communications Port (COM2)
IRQ4 Communications Port (COM1)
IRQ5 Available
IRQ6 Available
IRQ7 EC Watch DOG
IRQ8 System CMOS/real time clock
IRQ9 Microsoft ACPI-Compliant System
IRQ10 Available
IRQ11 Available
IRQ12 PS/2 Compatible Mouse
IRQ13 Numeric data processor
IRQ14 Primary IDE
IRQ15 Secondary IDE
