UNO-247 User Manual 8
2.1 Introduction
The following sections show the internal jumper settings and the external connectors
and pin assignments.

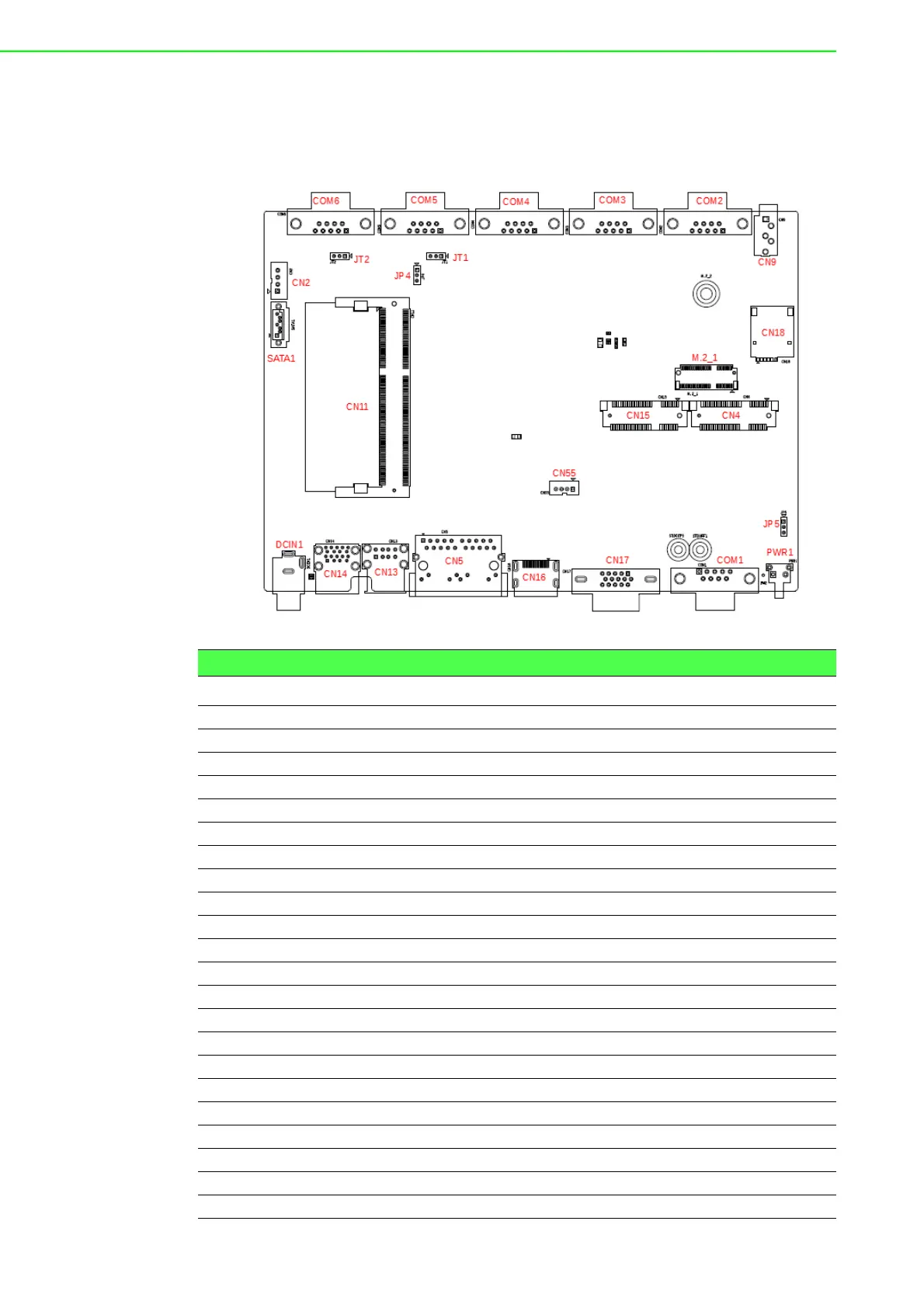

Figure 2.1 Connector and jumper locations (Top side)
Table 2.1: Connectors and Jumpers
Label Function
DCIN1 Power-in connector / 12V
CN14 USB 3.0 connector
CN13 USB 2.0 connector
CN5 RJ45 connector
CN16 HDMI connector
CN17 VGA connector
PWR1 Power button
COM1/COM2/COM3/COM4 COM port connector / RS232
COM5/COM6 COM port connector / RS485
CN9 Audio line-out
CN11 DIMM slot
CN4 PCI Express mini card socket /mPCIe
CN15 mSATA
CN18 Micro SIM card socket
CN2 SATA power connector
CN55 Internal USB 2.0 pin header
M.2_1 M.2 card socket
SATA1 SATA connector
JP4 Clear COMS pin header
JP5 AT/ATX mode switch
JT1 COM5 RS485 Termination Resistor pin header
JT2 COM6 RS485 Termination Resistor pin header
