UNO-247 V2 User Manual 14
3.1 Chassis Grounding
UNO-247 V2 provides good EMI protection and a stable grounding base. There is an
easy-to-connect chassis grounding point to use.

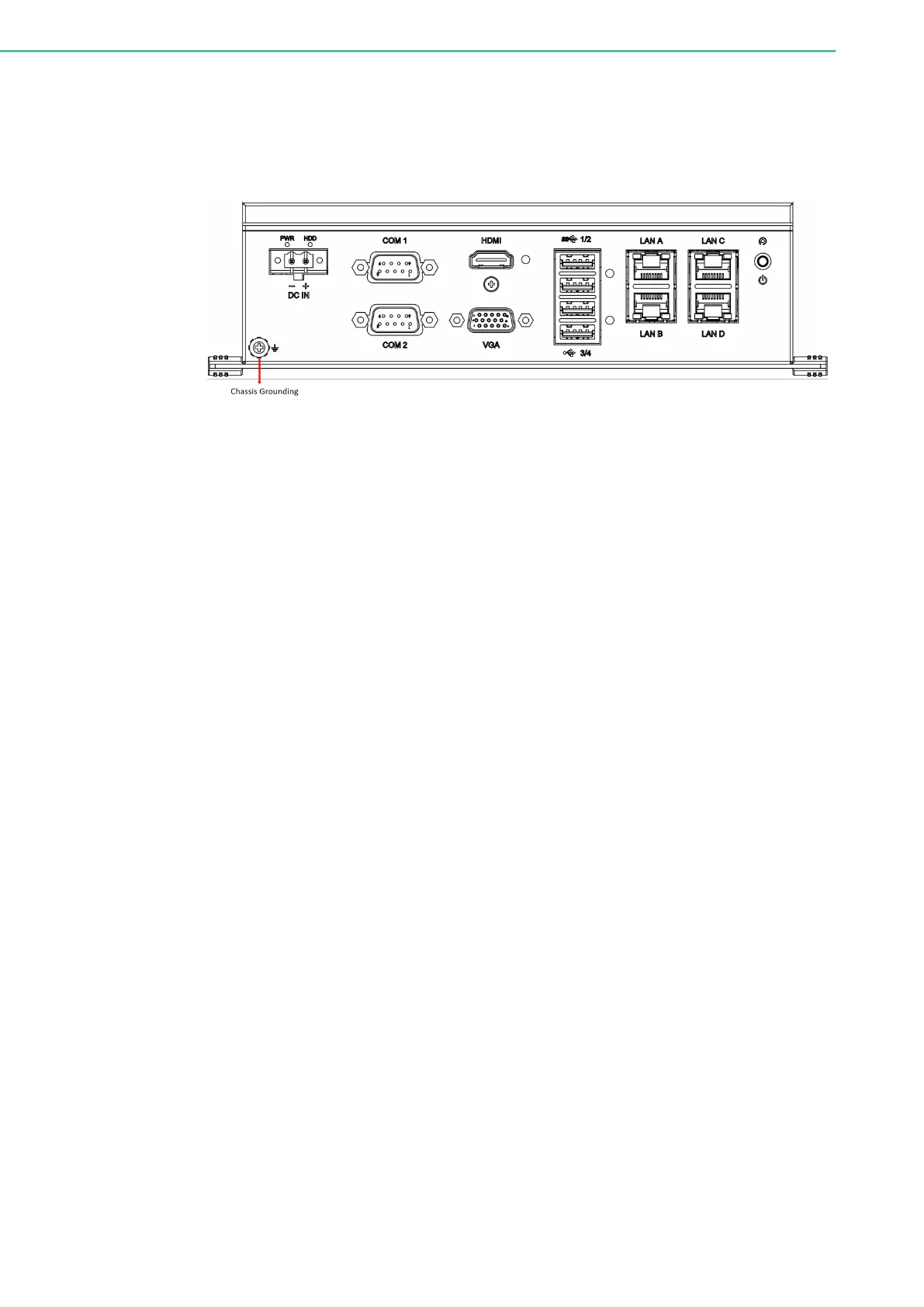

Figure 3.1 Chassis grounding connection
Use the Earth-Ground cable (16 AWG) from accessory bag to connect the chassis
ground with the Earth ground.
3.2 Connecting Power
This product is intended to be supplied by an approved power adapter rated at 12-
24V, 5A-2.5A and Tmax 60 degree C, if you need further assistance, please contact
Advantech for further information.
3.3 M.2 LTE/5G Module Installation (Optional)
Please refer to UNO-247 V2 Startup Manual.
3.4 SIM Card Installation
Please refer to UNO-247 V2 Startup Manual.
