UNO-148 User Manual 50
3.8 Remote Power & Reset Settings via DIO
UNO-148 supports remote power & reset functions through a DI connector with the
switch setting (SW8) on the motherboard. The default setting is for DI6/DI7 function-
ality. If you want to configure UNO-148 for remote control functions, configure SW8-
Bit 2 to “on”, then DI6 can be used for remote power settings, and DI7 can be used
for remote reset setting.
3.9 BIOS Setting
With the BIOS Setup program, you can modify BIOS settings and control the special
features of your computer. The Setup program uses a number of menus for making
changes and turning special features on or off.
Press the “ESC” key upon the first boot up to enter the BIOS Setup screen, then,
press the “Delete” key during the Power On Self Test (POST) process to enter the
BIOS Setup screen, otherwise the system will continue the POST process.
(Please refer to User Manual- Appendix A.11~A.15 for more settings)
3.9.1 BIOS setup for Remote function
Enter BIOS setup and disable ErP Control feature:

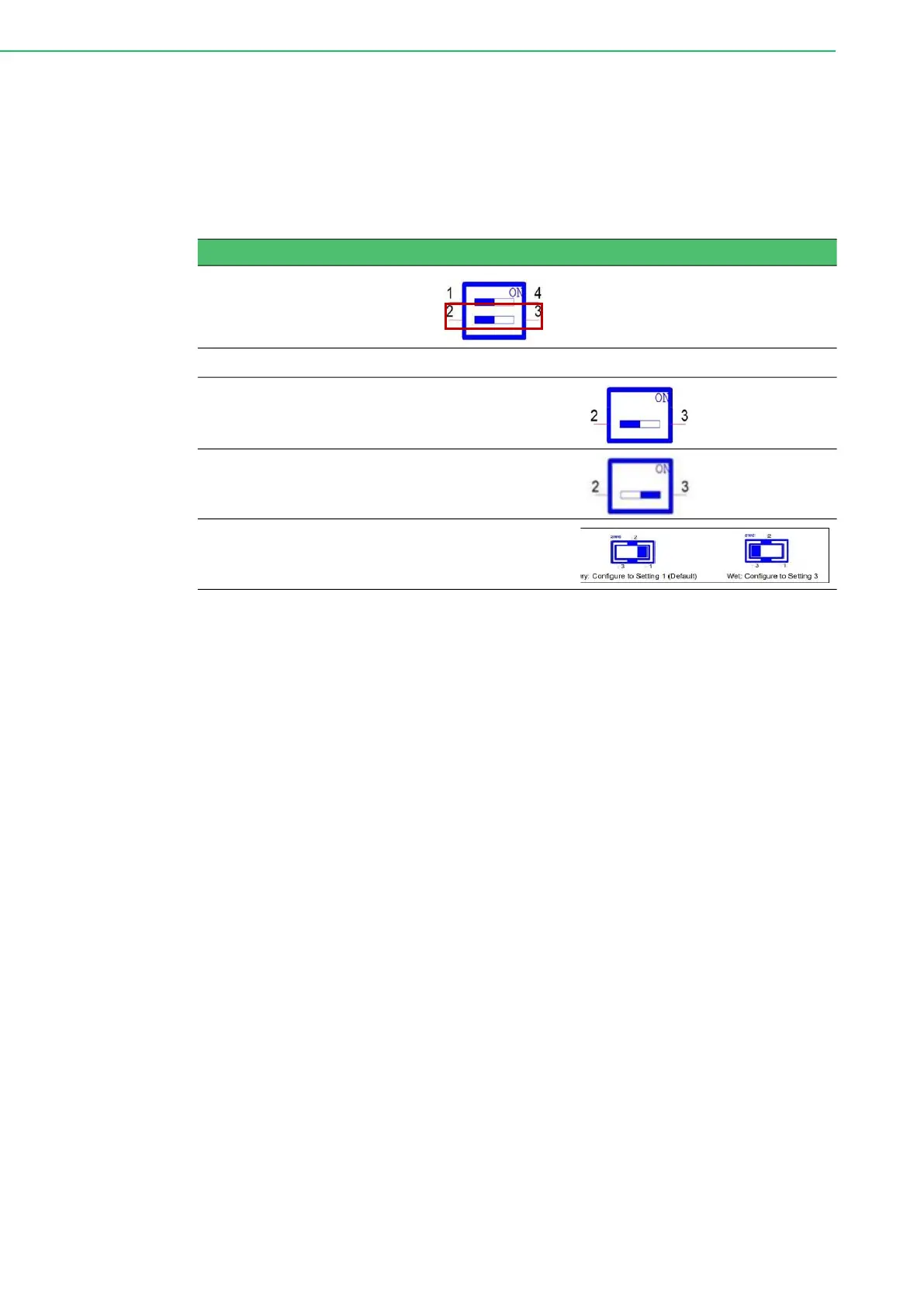

Table 3.1: Remote Power/On & Reset Settings
SW8 Default
Description Instruction SW8
DI function for DI6/DI7 (Default) Bit 2 off
Remote Setting Function (man-
datory requirement for remote
setting function)
Bit 2 on
Wet contact and dry contact for
digital input setting switch
Dry Configuration
