UNO-148 User Manual 22
2.3.1 M.2 Connector
There is one M.2 B-Key connector for M.2 cards, labeled “CN14” on the board. This
M.2 interface is an SATA signal co-lay with a USB signal. It will automatically detect
which device you installed and determine the appropriate SATA or USB signal to use.
Therefore, it supports the installation of M.2 2242 (w/SATA signal) or 3042/3052 mod-
ule (w/ USB Signal).
2.3.2 mPCIe Connector
There is one socket for a full-size Mini PCI Express card, labeled “MINI1” on the
board. It supports the iDoor module for diversified applications such as isolated COM
port, Profibus, WLAN GPRS, LTE, and MRAM. Users can install iDoor easily with the
optional extension kit.
2.3.3 Nano SIM Slot
There’s one Nano SIM Slot for supporting LTE functionality, labeled “CN14-1” on the
board. In addition to installing a SIM card in “CN14-1”, users are required to install an
LTE Module on “CN14” M.2 B-Key to enable the functionality.
2.4 Others

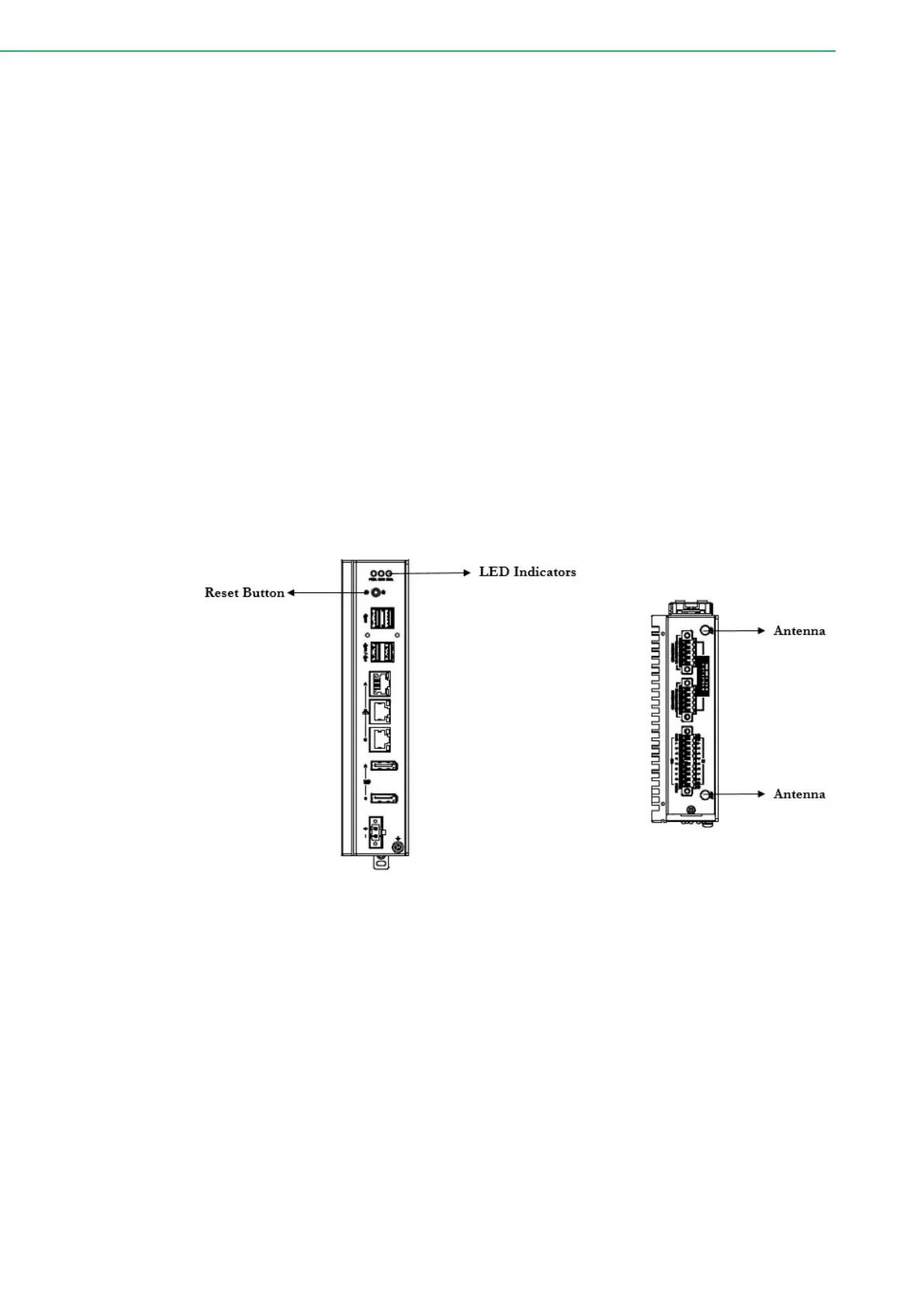

Figure 2.15 Indicators, Reset Buttons, and Antenna Holes
2.4.1 LED Indicators
Three LEDs indicate the status of the system’s power, RTC battery, and programma-
ble LED for user configurations.
PWR (Power): Green indicates “normal” and orange indicates “standby”.
BTR (RTC Battery): Red indicates a low RTC battery. Check the RTC battery.
RUN (Programmable): Users can configure the LED indicator’s behavior
through GPO signal controls. Green indicates programmed operation.
2.4.2 Reset Buttons
Press the “Reset” button to initiate a hardware reset.
