19 UNO-148 User Manual
Chapter 2 Hardware Functionality
Input Channels 8
Input Voltage (Wet Contact), Configure SW3 to Setting 3
– Logic 0: 10 ~ 30 V
DC
– Logic 1: 0 ~ 3 V
DC
Input Voltage (Dry Contact), Configure SW3 to Setting 1
– Logic 0: Shorted to GND
– Logic 1: Open
Isolation Protection 2,500 V
DC
Over-voltage Protection 30 V
DC
Opto-Isolator Response 50 μs
Digital Output
Output Channels 8
Output Voltage: 5 ~ 30 V
DC
Output Capability Sink: 500 mA max./channel
Opto-Isolator Response 50 μs
Isolated Digital Input
Each of the 8 x isolated digital input channels accept voltages from 0 to 30 V. The fol-
lowing figure shows how to connect an external input source to the isolated inputs of
UNO- 148.

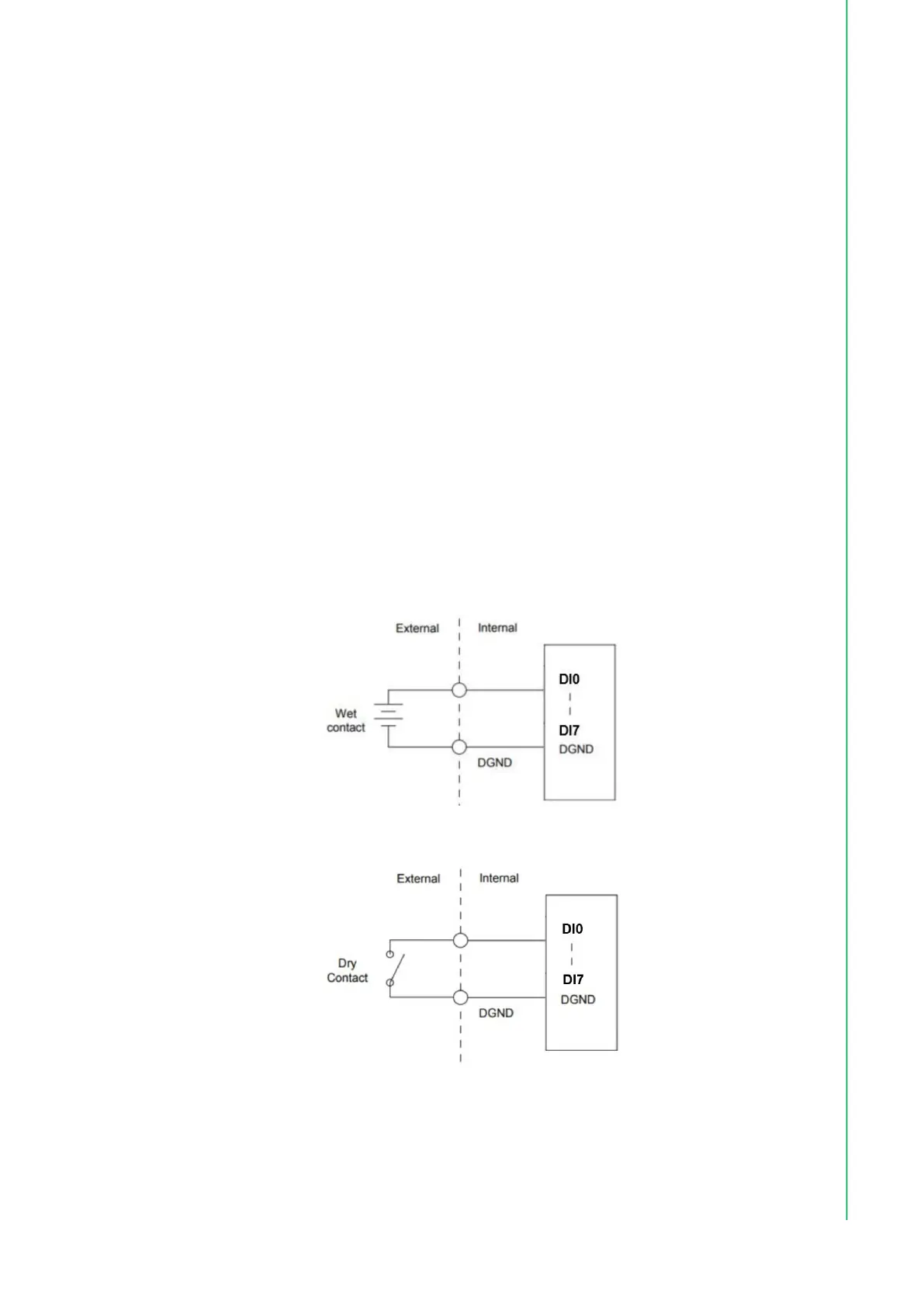

Figure 2.11 Isolated DI Wet Connection Diagram
Figure 2.12 Isolated DI Dry Connection Diagram
Isolated Digital Output
