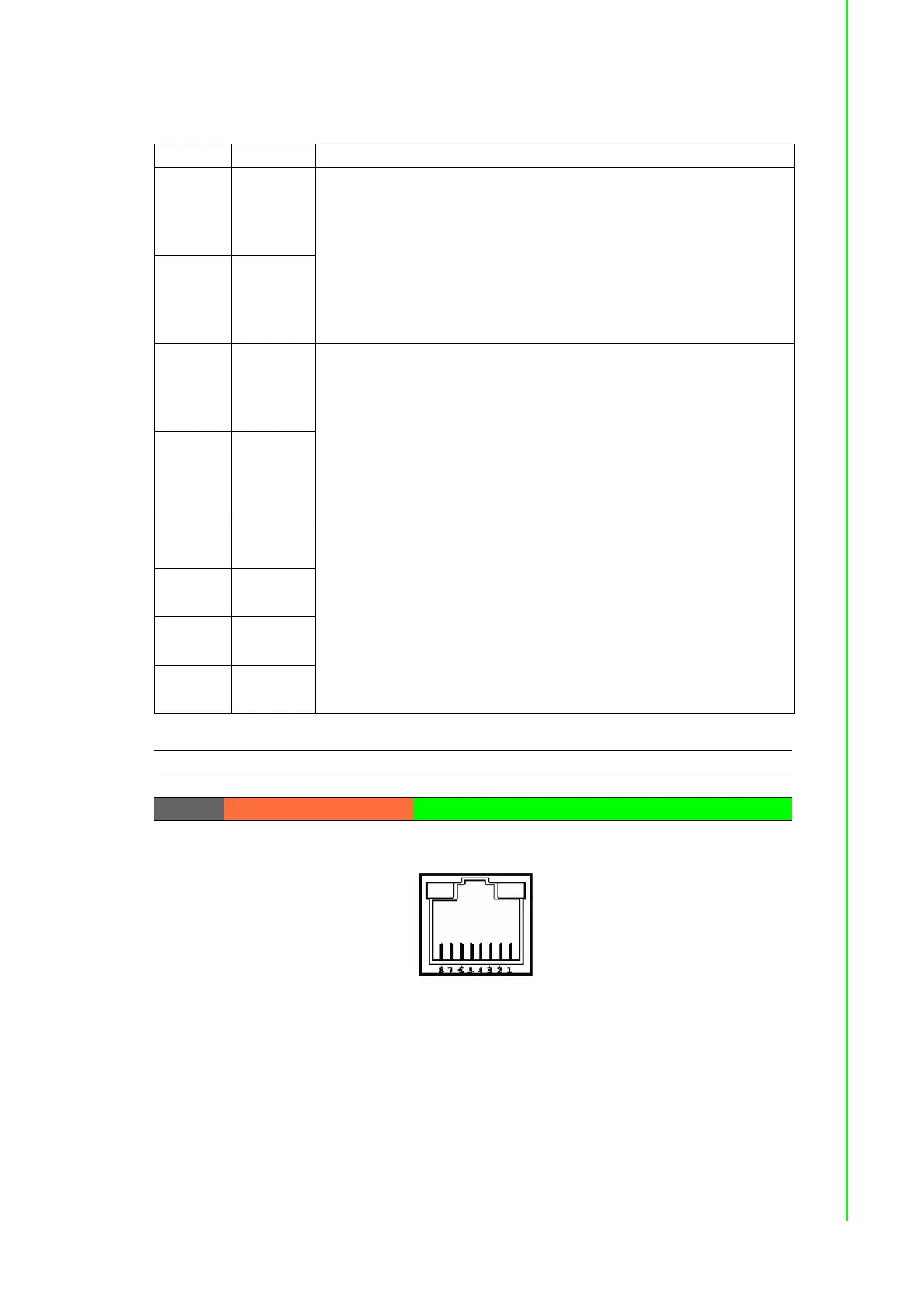

29 UNO-1372G-J User Manual
Appendix A System Settings
/
Pin Assignments
A.10 LAN RJ45 connector
RJ45 Pin Signal Description
1 MDI0+
In BASE-T: Media Dependent Interface[0]:
1000BASE-T: In MDI configuration, MDI[0]+/- corre-
sponds to BI_DA+/- and in MDI-X configuration MDI[0]+/-
corresponds to BI_DB+/-.
10BASE-T and 100BASE-TX: In MDI configuration,
MDI[0]+/- is used for the transmit pair and in MDIX
configuration MDI[0]+/- is used for the receive pair.
2 MDI0-
3 MDI1+
In BASE-T: Media Dependent Interface[1]:
1000BASE-T: In MDI configuration, MDI[1]+/- corre-
sponds to BI_DB+ and in MDI-X configuration MDI[1]+/-
corresponds to BI_DA+/-.
10BASE-T and 100BASE-TX: In MDI configuration,
MDI[1]+/- is used for the receive pair and in MDI-X
configuration MDI[1]+/- is used for the transmit pair.
6 MDI1-
4MDI2+
In BASE-T: Media Dependent Interface[3:2]:
1000BASE-T: In MDI and in MDI-X configuration,
MDI[2]+/- corresponds to BI_DC+/- and MDI[3]+/- corre-
sponds to BI_DD+/-.
100BASE-TX: Unused.
10BASE-T: Unused.
5MDI2-
7MDI3+
8MDI3-
Left LED Right LED
10Link 100Link 1000 Link Active
Off Orange Green Green
