19 UNO-1372G-J User Manual
Appendix A System Settings
/
Pin Assignments

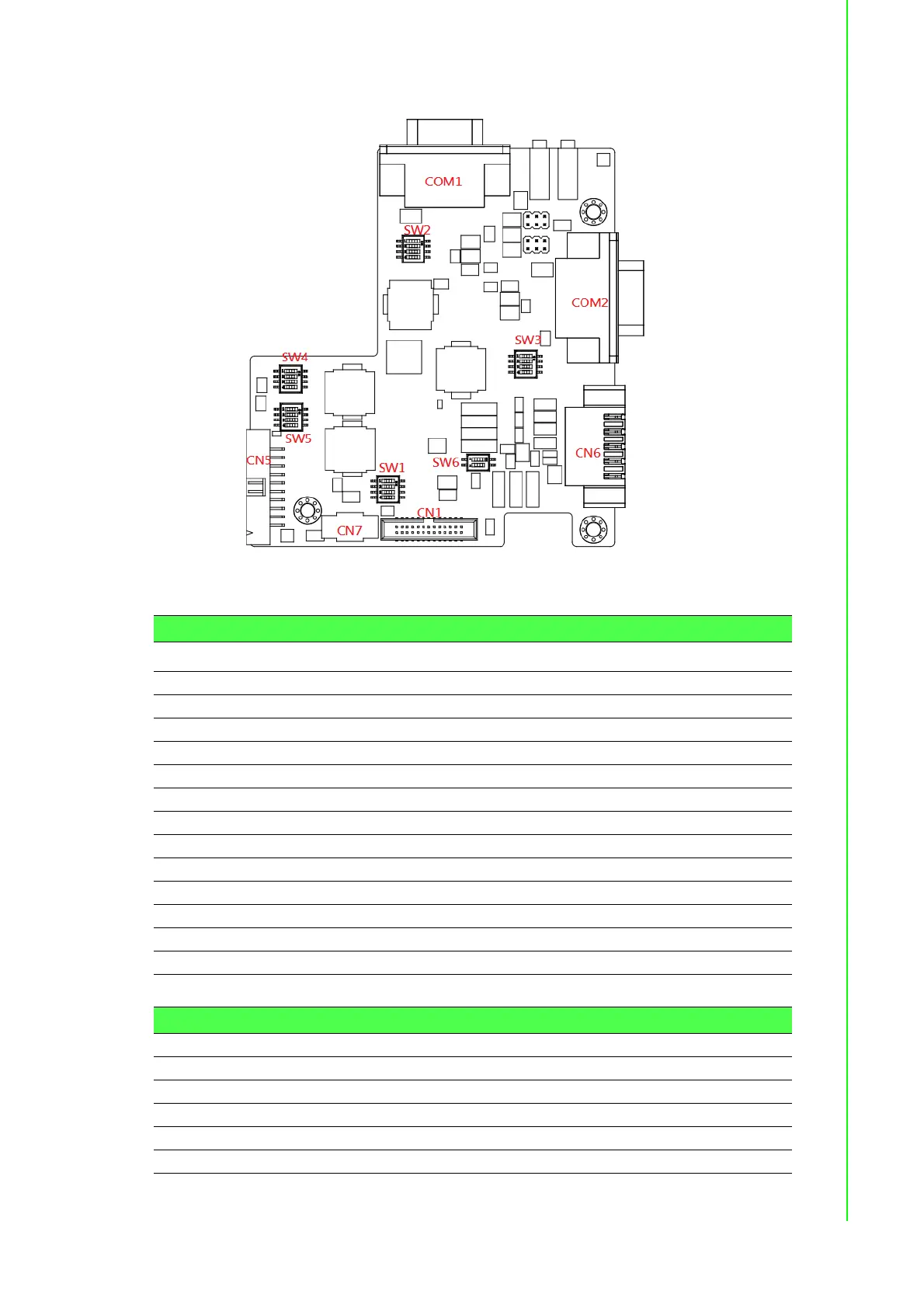

Figure A.2 Connector & Switch Locations on IO board
Table A.2: Connectors and Jumpers on MB
Label Function
CN20 Power in connector
CN35 HDMI connector
CN35 DisplayPort connector
CN19 USB3.0 and USB2.0 connector
CN25 RJ45 connector
PWR1 Power button
MINI2 PCI Express mini card socket / mSATA
CN8/CN9 SATA connector/SATA power connector
BH1 RTC battery connector
CN30 Internal power connector, voltage is same as DCIN
CN36 Clear CMOS switch
CN18 USB2.0 connector x2
MINI1 PCI Express mini card socket
Table A.3: Connectors and Jumpers IO board
CN6 Digital Input/Output Connector
CN5 COM3/4 Pin header
SW1 RS-485 Auto flow control
SW6 Dry/Wet Contact Setting of Digital Input
SW2~5 COM port RS-232/422/485 mode setting
COM1~2 COM1/2 port connector CN7
