7 UNO-1372G-J User Manual
Chapter 2 Hardware Functionality

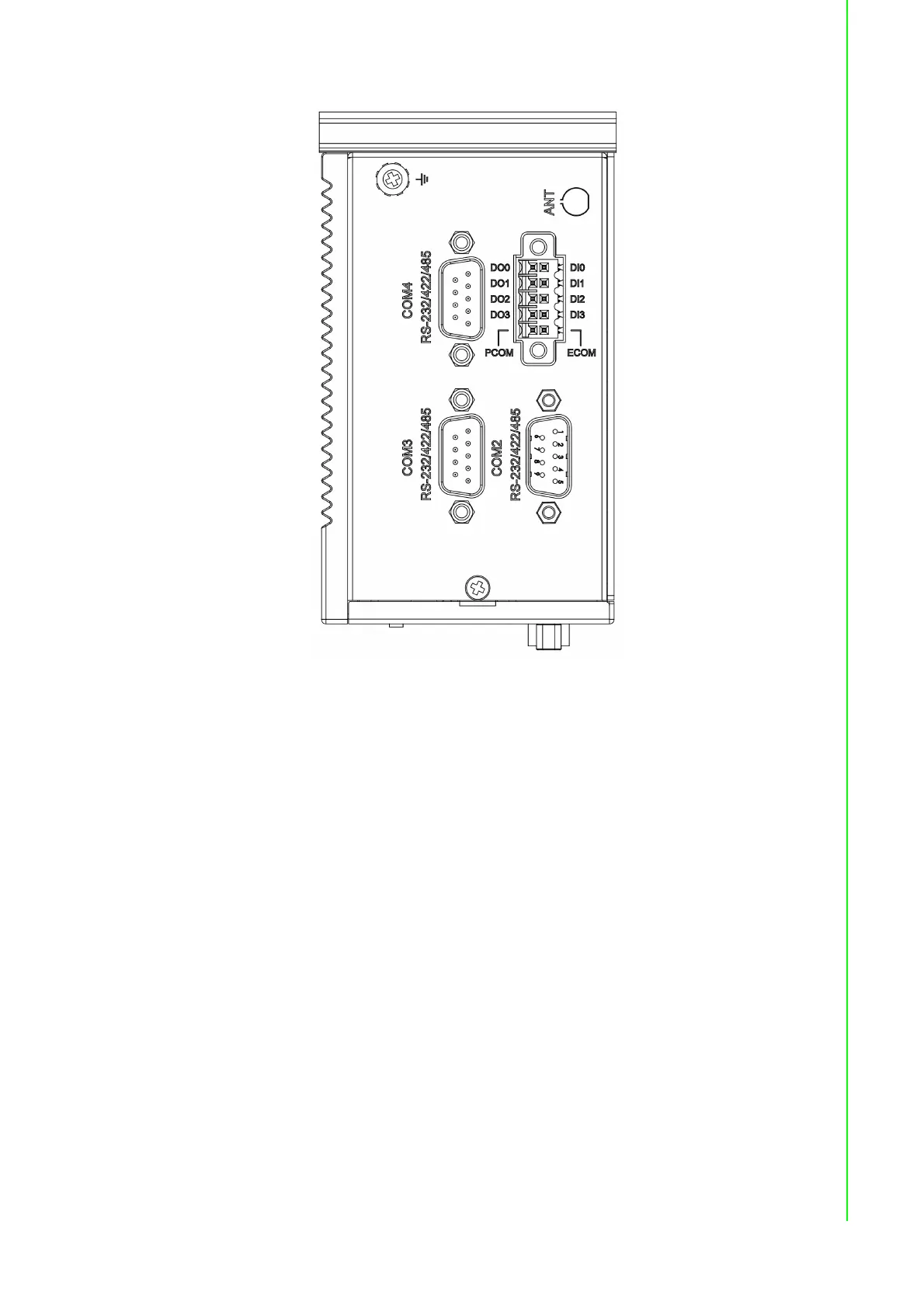

Figure 2.2 Top view of UNO-1372G-J
2.2 COM1~4: Serial Ports
The UNO-1372G-J equips four standard isolated COM serial communication ports:
COM1, COM2, COM3, COM4.
2.2.1 Isolated COM Port Interface (COM1, COM2, COM3, COM4)
UNO-1372G-J equips 4 x RS-232/422/485 ports, DB9, 50~115.2kbps. The default
setting of COM1~4 is RS-232. The setting can be adjusted via switches on board
(Refer to Appendix A.7).
2.3 LAN: Ethernet Connector
UNO-1372G-J is equipped with a two Gigabit LAN controller. The controller chip used
is an Intel i210 Ethernet controller that is fully compliant with IEEE 802.3u 10/100/
1000 Base-T. The Ethernet port is a standard RJ-45 jack, and LED indicators are on
the front to show its Link (off/ Green/ Orange LED) and Active (Green LED) status
(Refer to Appendix A.10).
2.4 Power Connector
UNO-1372G-J comes with a Phoenix connector that carries 10 - 36 V
DC
external
power input, and features reversed wiring protection. Therefore, it will not cause any
