23 TS-207 User Manual
Chapter 4 Pin Assignments
4.2.5 Ethernet Connector
TS-207 provides 4 x 10/100/1000 bps with M12 X-code circular connector. In addi-
tion, it also supports up to 4 x ports PoE (project-based support).
4 x ports full-load, IEEE802.3af Class 2 (7 Watt)
2 x ports full-load, IEEE802.3af Class 3 (15.4 Watt)

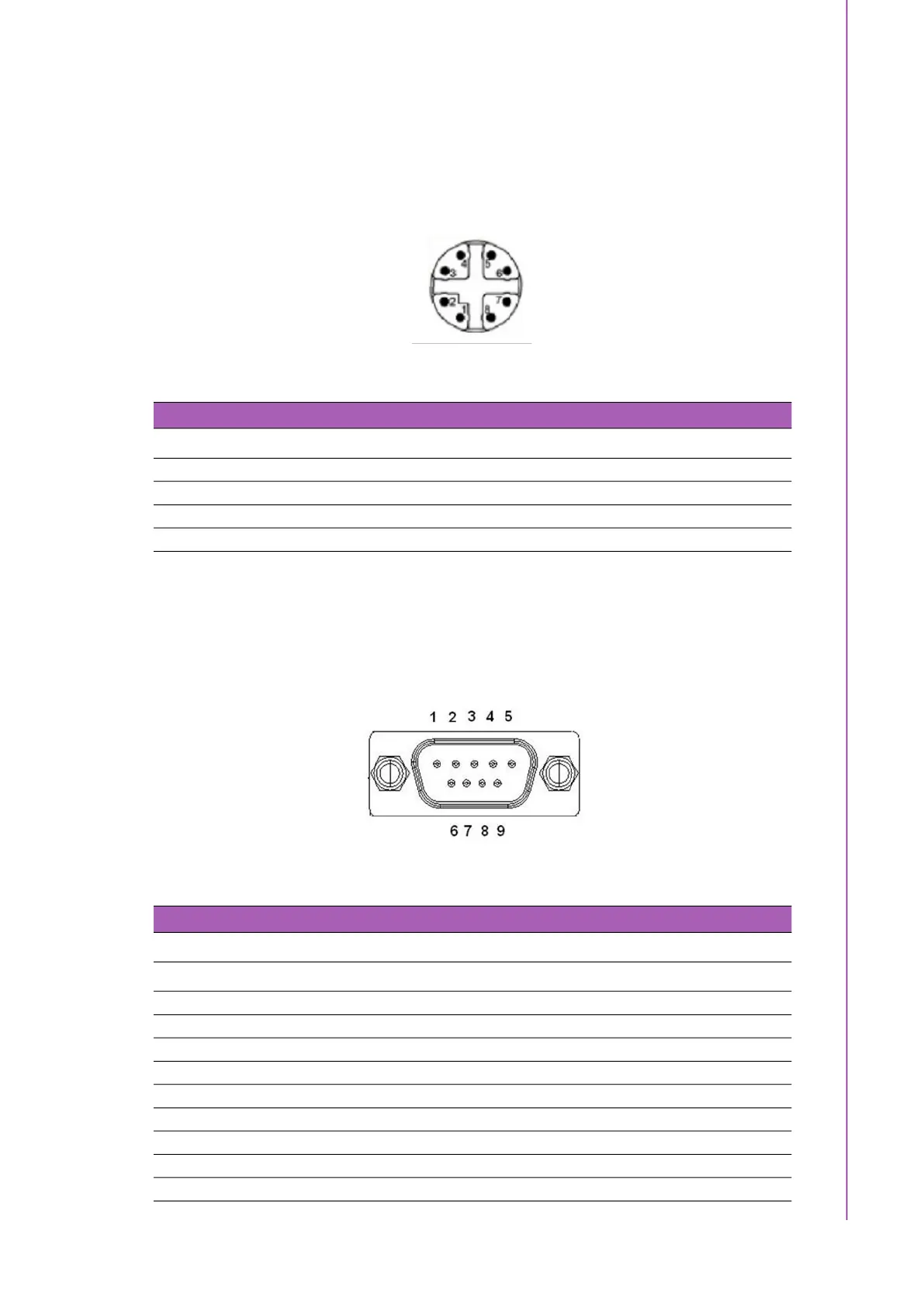

Figure 4.6 Ethernet Connector
4.2.6 COM Connector
TS-207 provides 2 x D-sub 9-pin connectors, which offers 2 x RS-232/422/485 serial
communication ports with 3 KV isolation and auto flow control. The setting of protocol
can be configured via the BIOS settings.
Figure 4.7 COM Port Connector
Table 4.5: Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 LAN_M0+ 2 LAN_M1+
3 LAN_M3+ 4 LAN_M2+
5 LAN_M0- 6 LAN_M1-
7 LAN_M3- 8 LAN_M2-
Table 4.6: COM Connector Pin Assignments
RS-232 RS-422 RS-485
Pin Signal Name Signal Name Signal Name
1 DCD Tx- DATA-
2 RxD Tx+ DATA+
3 TxD Rx+ NC
4 DTR Rx- NC
5 GND GND GND
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9 RI NC NC
