21 TS-207 User Manual
Chapter 4 Pin Assignments
4.2.2 Power On/Off Button
TS-207 comes with a power ON/OFF button that supports dual function of soft power
ON/OFF (instant off or 4-second delay), and suspend power functions. There are two
LEDs for indicating system status: LED green is for power ON status; and LED red is
for power OFF status.

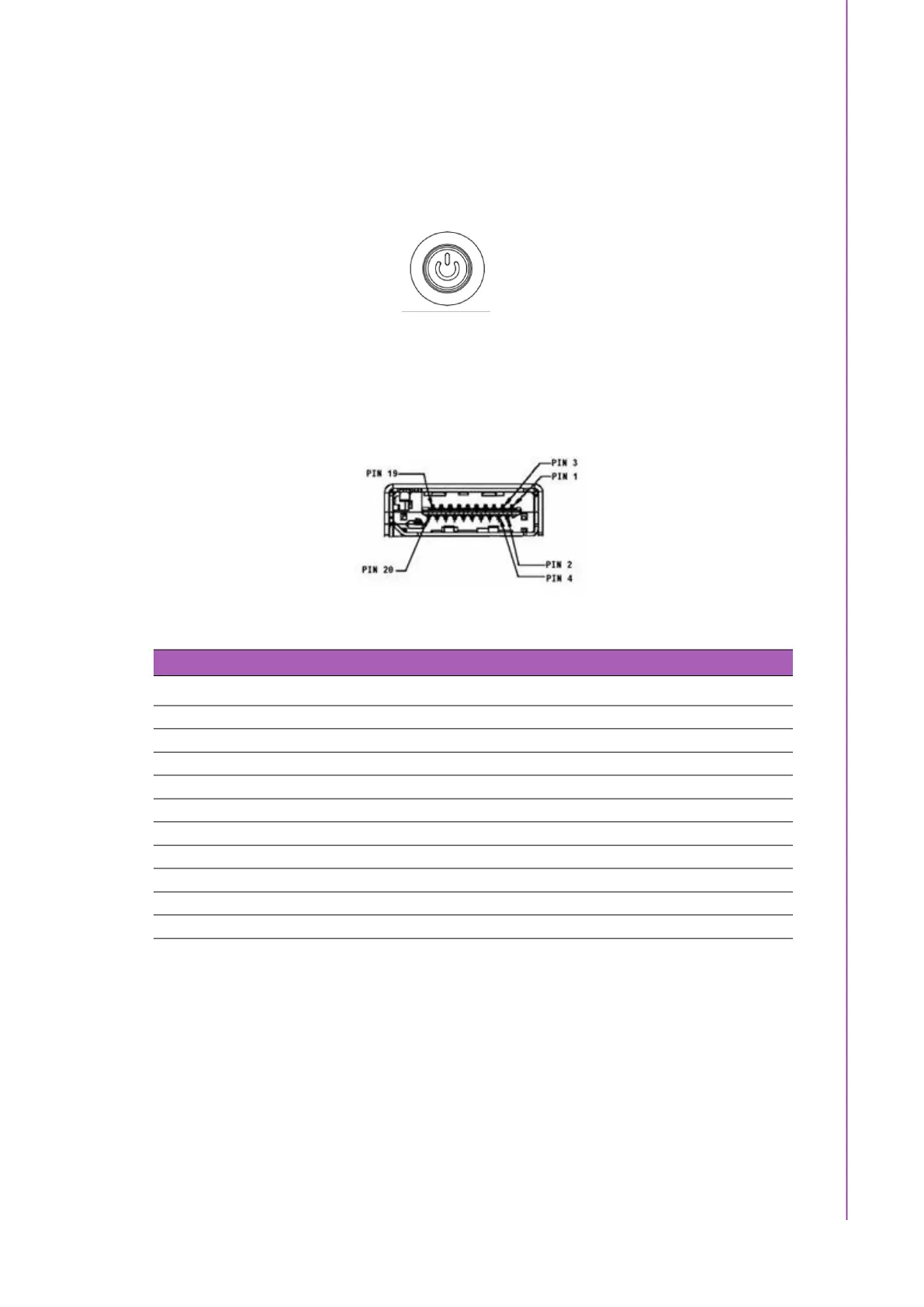

Figure 4.2 Power ON/OFF Button
4.2.3 HDMI Connector
TS-207 provides 2 x HDMI ports with resolution that can support up to 4K x 2K at 48-
60 Hz / 24bpp.
Figure 4.3 HDMI Connector
Table 4.2: HDMI/Display Port Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 TMDS_Data2+/DP_Data0+ 2 GND
3 TMDS_Data2−/DP_Data0- 4 TMDS_Data1+/DP_Data1+
5 GND 6 TMDS_Data1−/DP_Data1-
7 TMDS_Data0+/DP_Data2+ 8 GND
9 TMDS_Data0-/DP_Data2- 10 TMDS_Clock+/DP_Data3+
11 GND 12 TMDS_Clock−/DP_Data3-
13 NC 14 NC
15 SCL/AUX_CH+ 16 SDA/GND
17 DDC GND/AUX_CH- 18 +5V/Hot plug detect
19 Hot plug detect/Return 20 DP_PWR
