TS-207 User Manual 2
1.1 Introduction
Advantech’s TS-207 series are fanless embedded computers powered by the 11th
Gen Intel® Core™/Celeron® processors that leverage 14nm process technology for
transportation applications in outdoor environments. These solutions feature
extended operating temperatures (-40-70 °C), an IP65 enclosure rating, and isolated
I/O ports that provide high reliability and durability for outdoor applications. TS-207
supports DDR4 3200MT/s with 1.2V power design, up to 16GB memory down, and
32GB SO-DIMM. This solution also integrates 11th Gen. Intel® Core™ processors
Iris® Xe Graphics to empower up to 2 x independent 4K displays and further pro-
vides support 4 x IEEE802.3af PoE ports with a maximum power output of 60W for IP
camera surveillance applications. In addition, this series features Advantech’s iMan-
ager (SUSI4) software. This software meets embedded application requirements by
providing a multi-level watchdog timer, voltage & temperature monitoring, thermal
protection, and mitigation via processor throttling and embedded storage for custom-
ized information. When combined with Advantech WISE-DeviceOn, it can remotely
monitor and control devices.

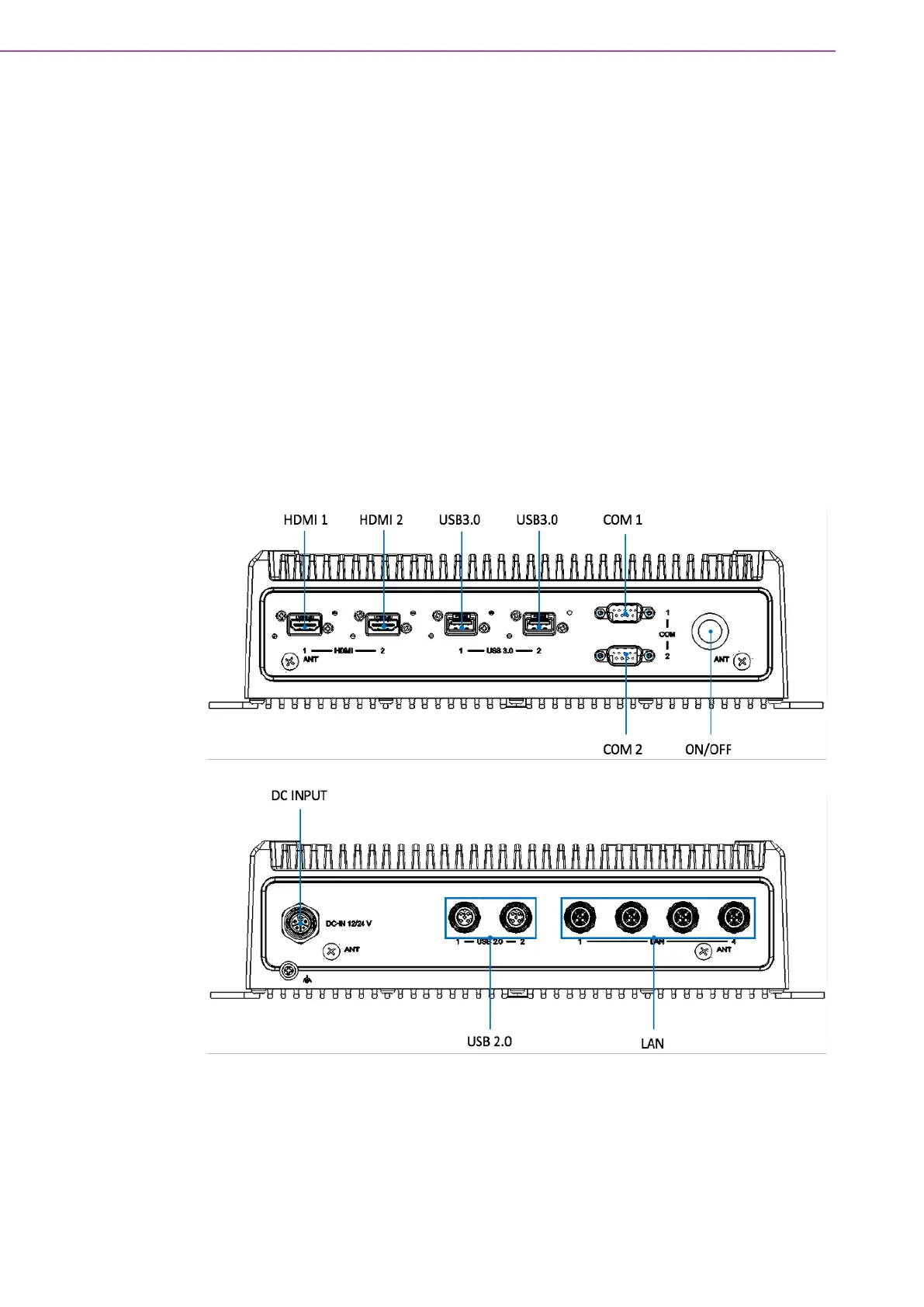

TS-207 I/O Overview
