TREK-570/303 User Manual
Testing Message Filter
1.
Selecting "VCIL Control" page
2.

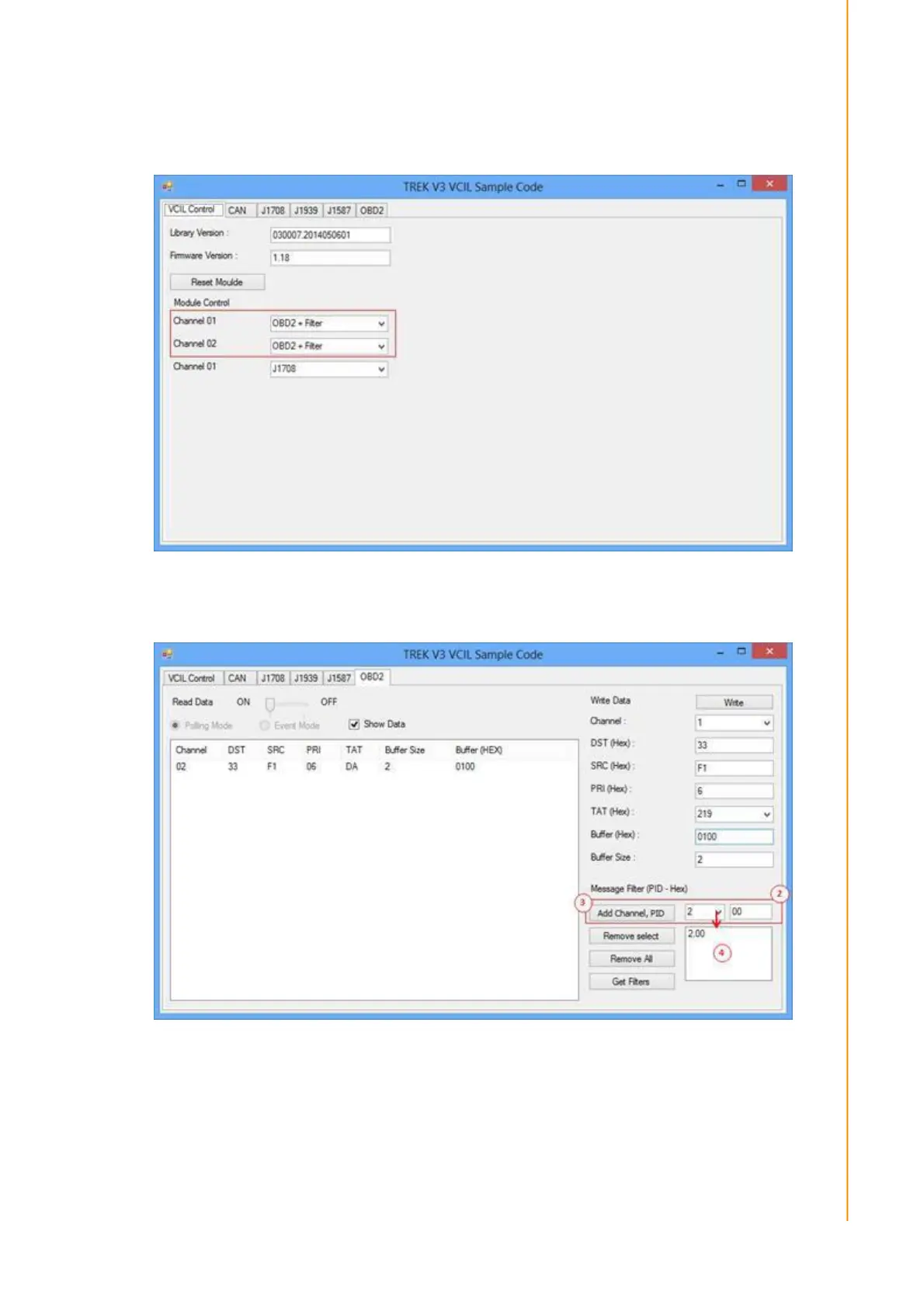

Press combo box on the channel and select "ODB2 + Mask" as below figure
Set Message Filter
1.
Selecting "ODB2" page as below figure
2.
Select Channel and specified PID to filter
3.
Press "Add Channel, PID" button to add the rule to filter
4.
You should see the filter was applied on the bus
5.
The system ignores all PID is not on the list
For example, as above figure setting. The system can receive the PID equal to 0x00,
otherwise no.
