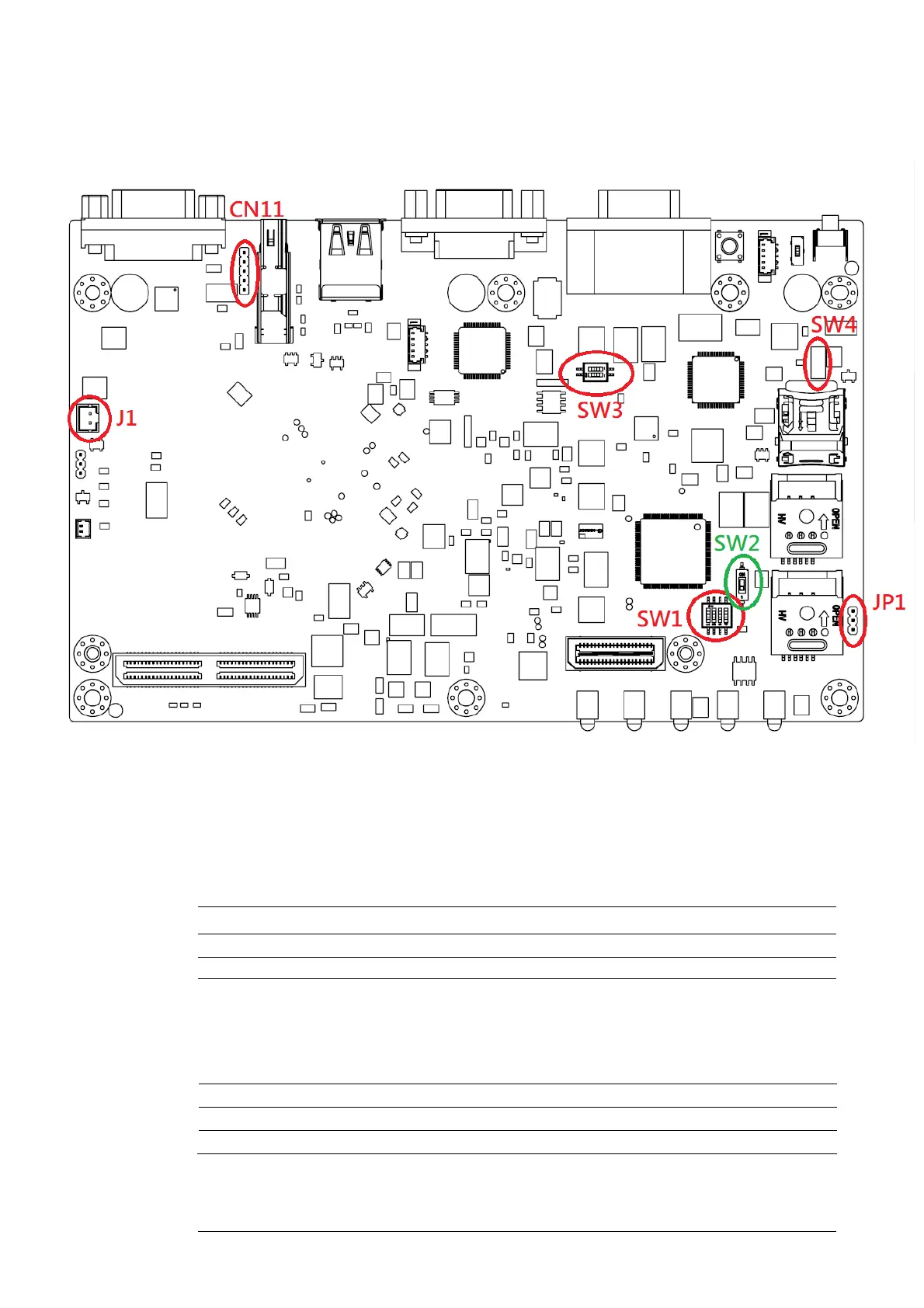

4.1 Setting Jumpers and Switches
It is possible to configure the In-Vehicle Computing Box to match the needs of the
application by resetting the jumpers. A jumper is the simplest kind of electrical switch.
It consists of two metal pins and a small metal clip, often protected by a plastic cover
that slides over the pins to connect them. To “close” a jumper, connect the pins with
the clip. To “open” a jumper, remove the clip. Sometimes a jumper has three pins,
labeled 1, 2, and 3. In this case, connect either pins 1 and 2, or pins 2 and 3.
JP1: Car Battery Mode
1-2 2-3
12V 24V
default: 1-2
SW1: WWAN voice call setting
1
2
3
4
WWAN
ON
OFF
ON
OFF
MC809x
OFF
ON
OFF
ON
MC73x4
default: OFF-ON-OFF-ON (for MC73X4)
