TREK-20 User Manual 10
2.2 Installation Procedures
2.2.1 Installing SIM/Micro SD Card
Remove enclosed security door screw to install SIM/Micro SD Card directly.

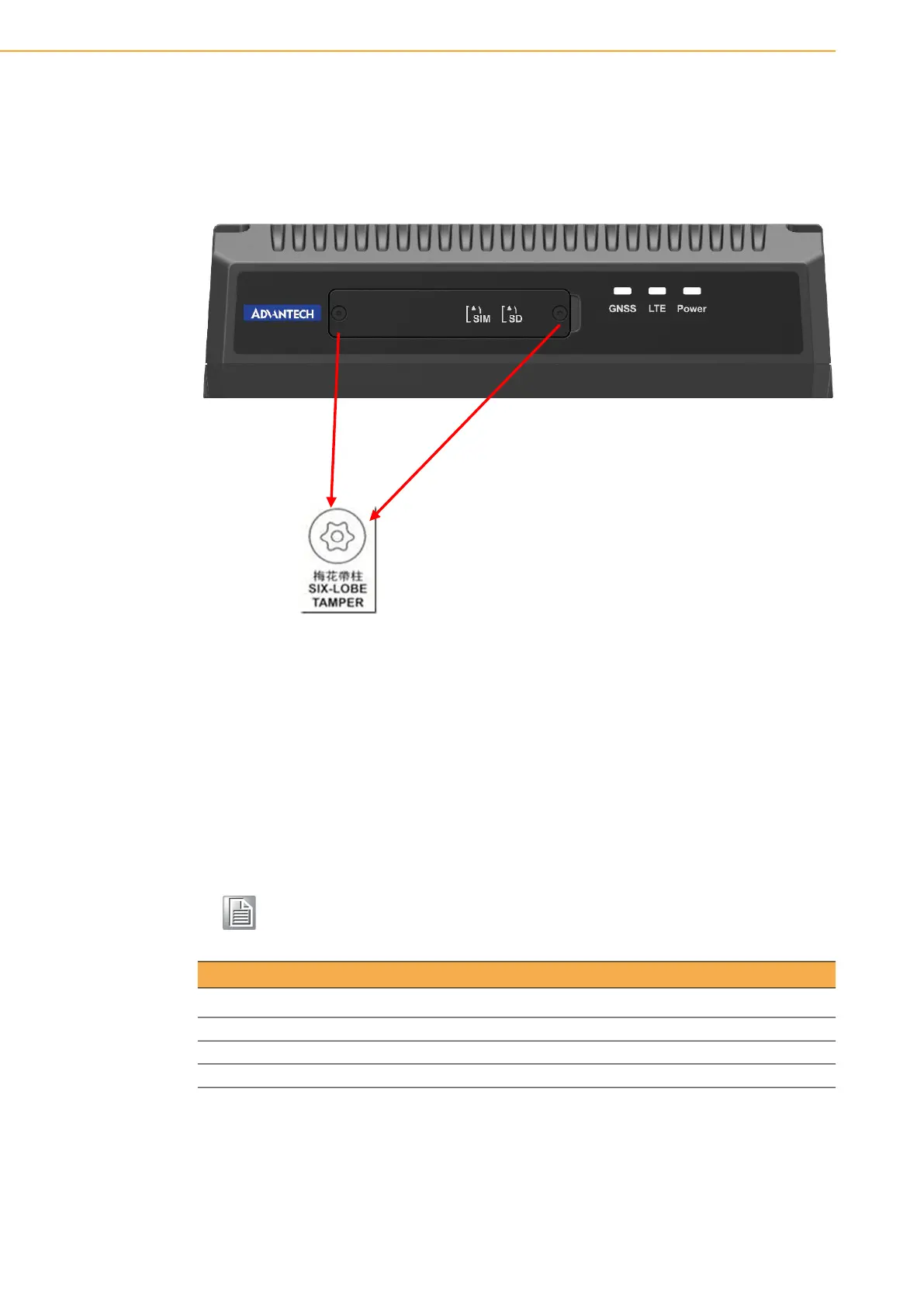

Figure 2.3 Installing SIM Card
Release the security TORX M2*3L T5 screws first, then insert the SIM or Micro SD
card in there.
2.2.2 Connecting Power
Connect the power cord to the DC inlet of the computing box. On the open-wire end,
one pin is reserved for positive voltage and is marked, "+"; one pin is reserved for
ground and is marked, "-"; and, one pin is reserved for the ignition signal with an
“ignition” mark.
Note! Ignition on/off setting: The TREK-20 supports an ignition on/off function
so that you can power on/off the TREK-20 via the ignition signal/volt
age and connect the TREK-20 ignition switch.
Table 2.3: Pin Definition of Power Cord
Pin Definition Color
1 - Black
2 + Red
3 Ignition Orange
