23 TPC-71W Series User Manual

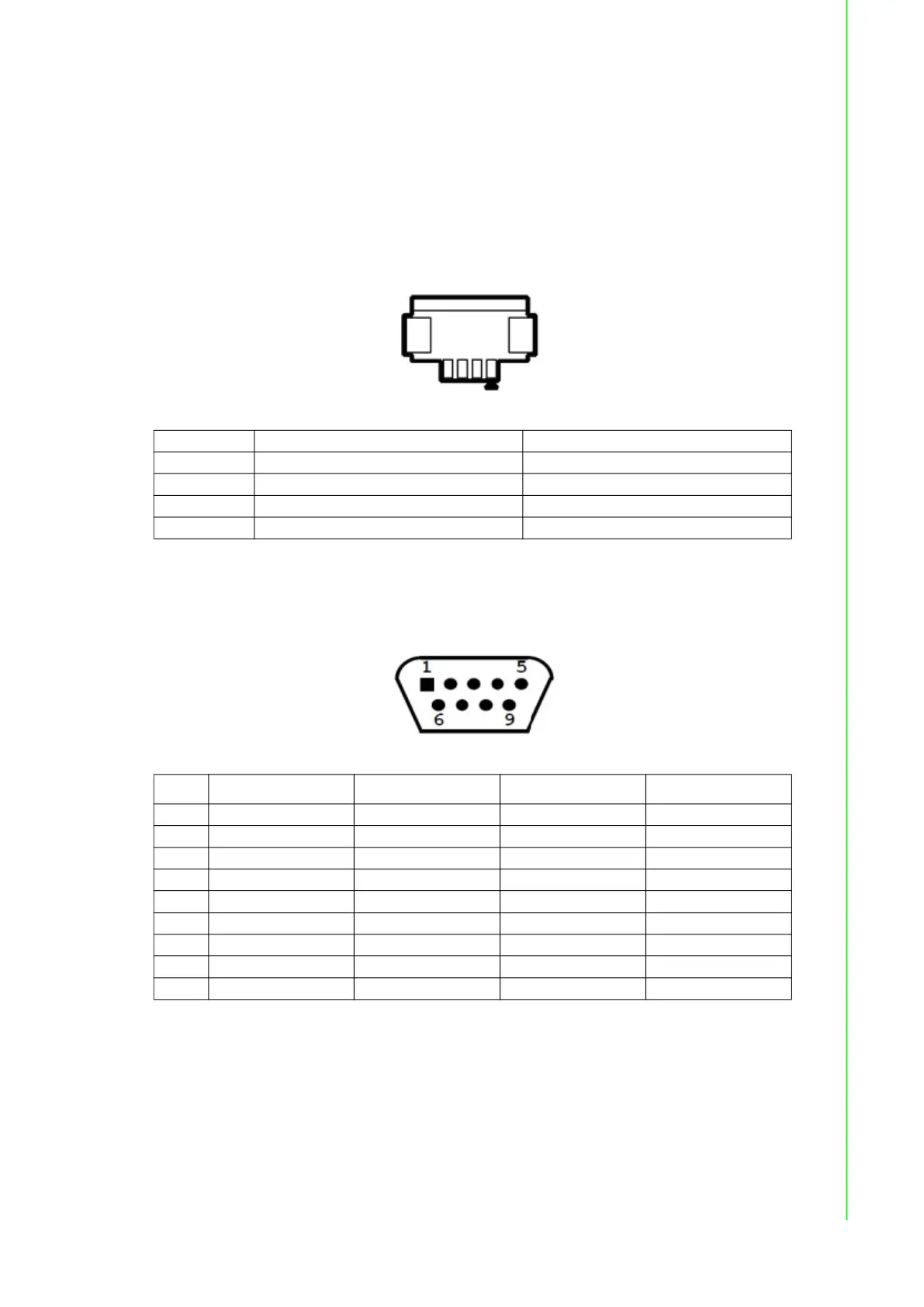

Appendix A Pin Assignments
* Supports PCI1.1/ PCI1.2 Power Definition
* +3.3Vaux was suspend power , power out to device +3.3V/1.1A
* +3.3V was core power
* +1.5V was core power , power out to device +1.5V/0.5A
A.2 4-pin USB Connector
1.25 mm 4-pin USB connector
A.3 COM Port
9-Pin Com Port Connector
Pin Signal Description
1 USB VBUS USB Power output ,USB2.0 5V/0.5A
2 USB_P- USB2.0 date -
3 USB_P+ USB2.0 date +
4 GND Ground for Power return
Pin RS232 RS422 RS485 CAN
1 - TX_Data- Data- -
2 RX TX_Data+ Data+ Data-
3 TX RX_Data+ - GND
4 - RX_Data- - -
5 GND GND GND -
6 - - - -
7 RTS - - Data+
8 CTS - - -
9 - - - -
