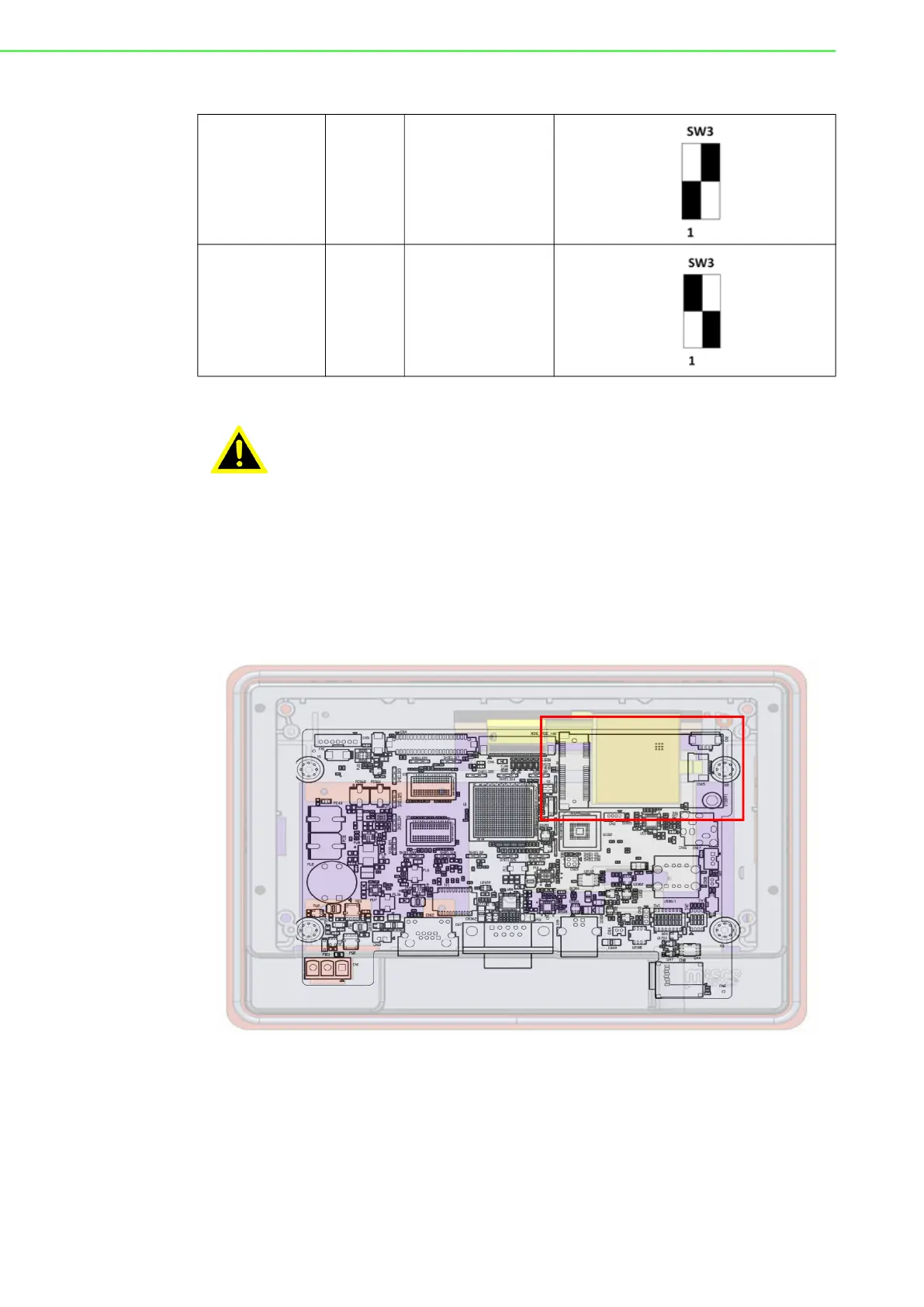

TPC-71W Series User Manual 10
Boot Mode: eMMC/SD Card
2.3 Mini PCI Express Module Installation
TPC-71W provides 1 MINI PCI Express slot and allows users to expend functions
like Wi-F, Bluetooth or the other PCI Express type modules. Open the rear bracket
and configure the MINI PCI Express module on MINI PCI Express slot. (Refer to
Appendix B for the detailed MINI PCI Express slot pin assignments)
SD boot the sys-
tem
SW3
Bit 2 ON
Bit 1 OFF
eMMC boot the
system
SW3
Bit 1 ON
Bit 2 OFF
Warning! To avoid the system damage, the device may unable to incorrect or
undefined switch may cause the system may be damaged when the
power is turned on if the power source is not connected to the correct
pins.
