15 TPC-300 Elkhart Lake Series User Manual
Chapter 2 Installation
2.3 VESA Mounting
1. TPC-300 Elkhart Lake series support VESA mounting (100x100).
2. M4 x 10L screws provided in the accessory box are recommended for attaching
the TPC devices to the VESA mount bracket.
3. Affix the VESA mount bracket at the top of the rear of the TPC device and fasten
in place using following screws:
TPC-312: M4*25L, Qty.8 PCS
TPC-315: M4*25L, Qty.10 PCS
TPC-317: M5*25L, Qty.10 PCS
TPC-324W: M5*20L, Qty.14 PCS
Torque: 5 kgf-cm (0.5 Nm)

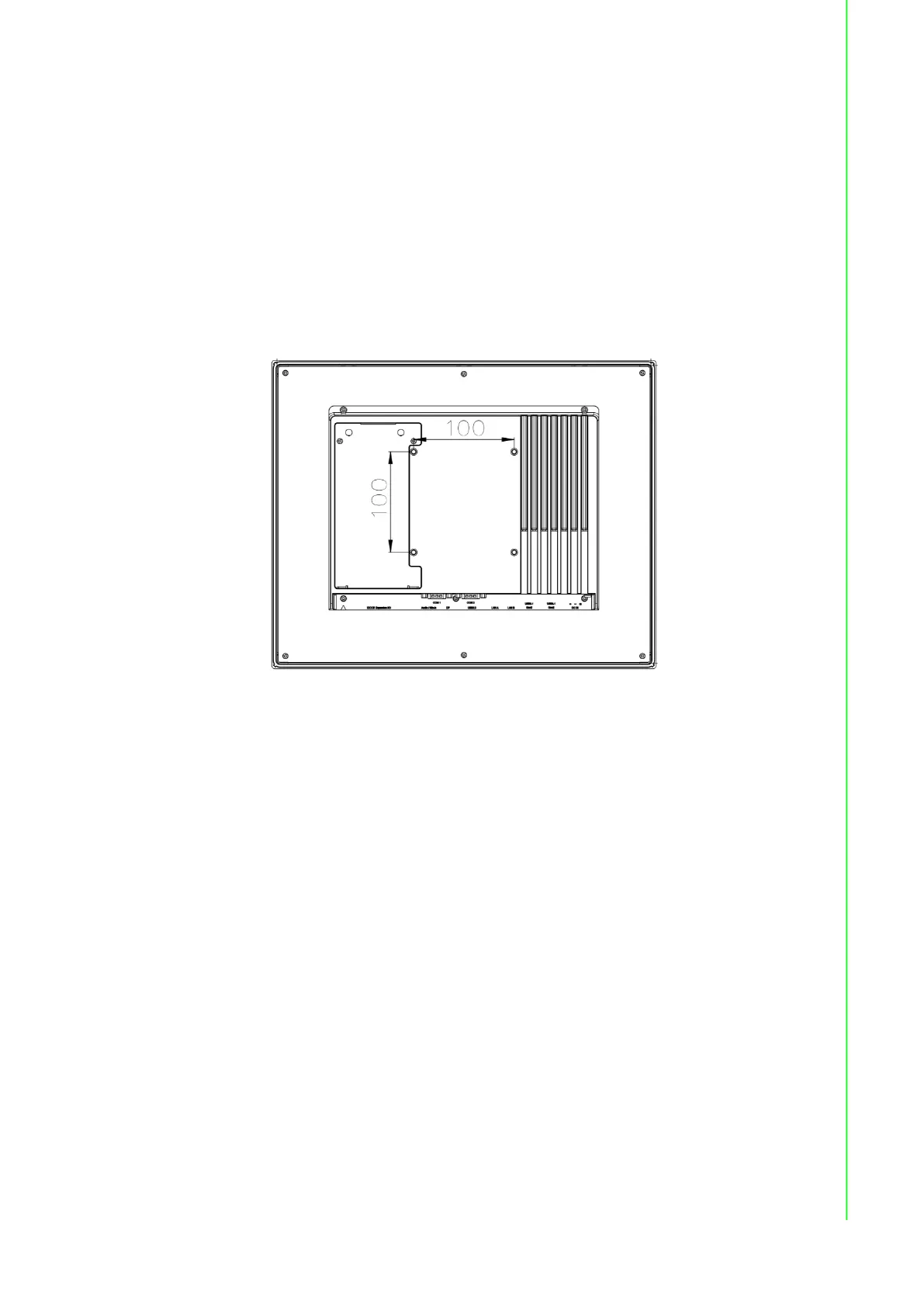

Figure 2.6 VESA Mounting
2.4 Cabinet Installation and Grounding
Follow these instructions to install the TPC device into a cabinet. The grounding pin
should be physically connected to the earth/ground. The TPC device is designed for
optimum EMI immunity, ESD immunity, surge immunity, and system isolation. If the
TPC device is installed in a cabinet, the TPC device ground, cabinet ground, and
earth/ground should be connected together.
