SQFlash
SATA DOM 630 Horizontal
Specifications subject to change without notice, contact your sales representatives for the most update information.
REV 1.0 Page 10 of 25 Apr. 1, 2016
5. Pin Assignment and Description
5.1 SATA DOM Interface Pin Assignments (Signal Segment)
Pin #
Pin Def.
Description
Mate Sequence
S1
GND
1
st
S2
A+
Host Transmitter
Differential Signal Pair
2
nd
S3
A-
2
nd
S4
GND
1
st
S5
B-
Host Receiver
Differential Signal Pair
2
nd
S6
B+
2
nd
S7
GND
1
st

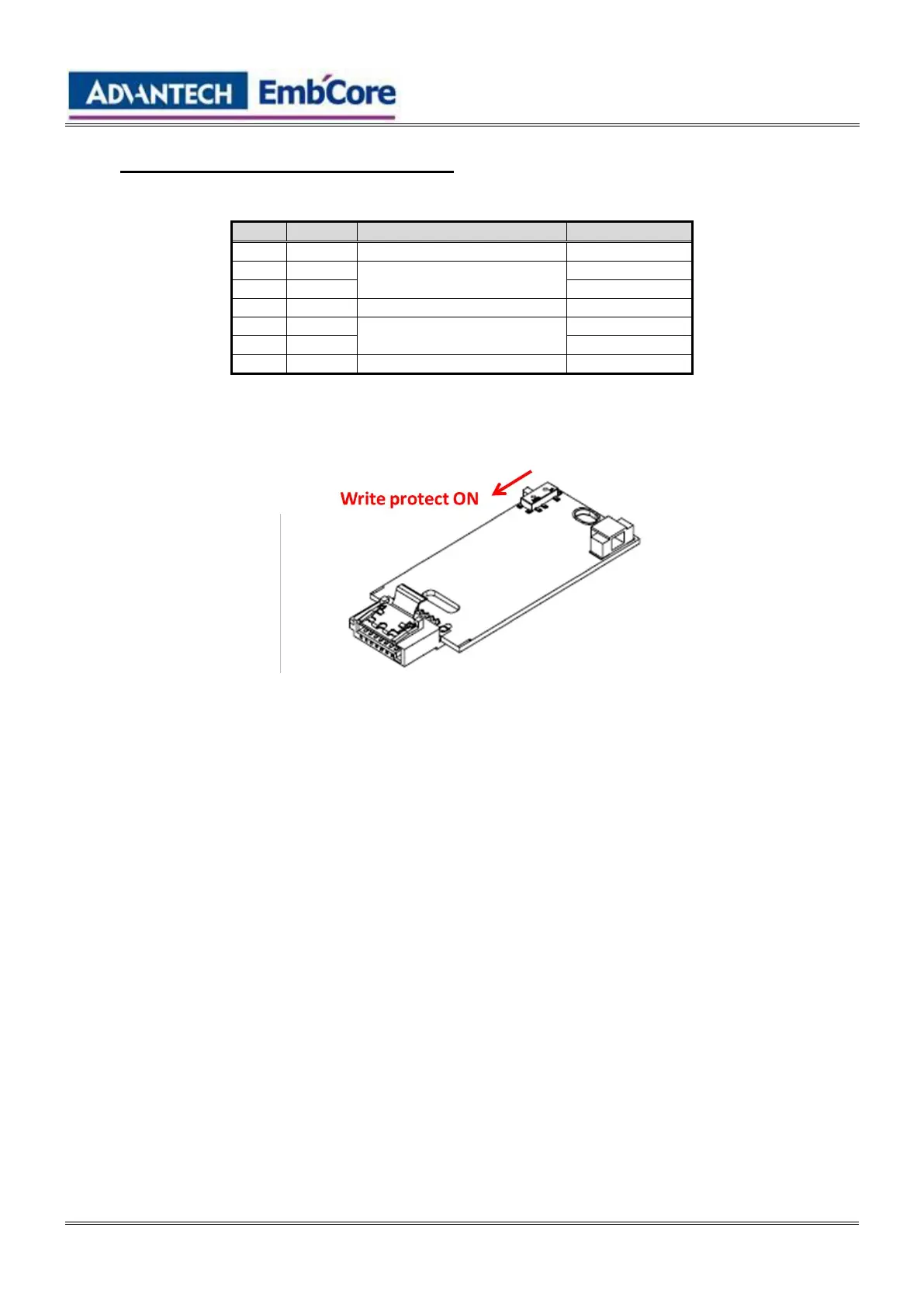

5.2 Write Protect Switch Direction
Bekijk gratis de handleiding van Advantech SQF-SDM 630, stel vragen en lees de antwoorden op veelvoorkomende problemen, of gebruik onze assistent om sneller informatie in de handleiding te vinden of uitleg te krijgen over specifieke functies.
Productinformatie
| Merk | Advantech |
| Model | SQF-SDM 630 |
| Categorie | Niet gecategoriseerd |
| Taal | Nederlands |
| Grootte | 4040 MB |
Caratteristiche Prodotto
| Breedte | 11.2 mm |
| Diepte | 4.2 mm |
| Hoogte | 44.7 mm |
| Interface | SATA III |
| Veiligheidsfunties | Shock resistant, Vibration proof |
