3 SOM-DB5920 User Manual
Chapter 1 General Information
SOM-DB5920 A2
1.2.1 Pin Description
Advantech provides useful checklists for schematic design and layout routing. The
schematic checklist will specify details about each pin's electrical properties and how
to connect it for different purposes. The layout checklist will specify the layout con-
straints and recommendations for trace length, impedance, and other necessary
information during design. Please contact your nearest Advantech branch office or
call to aquire design documents and further advanced support.

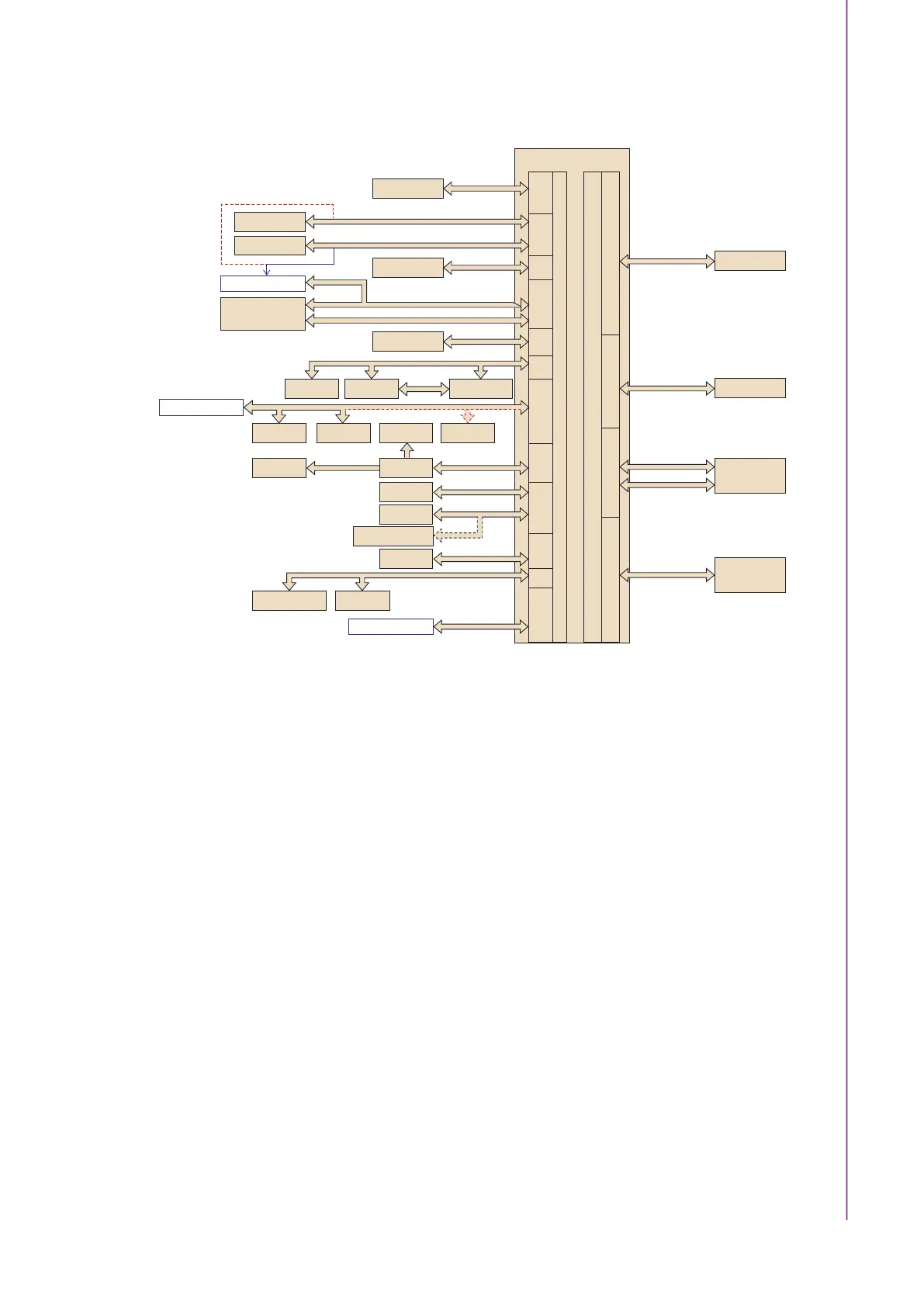

Type 7
SOM Module
PCIEX8
x16 Slot 2
PCIEx16
x16 Slot 1
AST2500
AST2500
AST2500
USB2.0 x 4
Pair with LAN2 (USB3.0 x2)
Pair with LAN1 (USB3.0 x2)
Connector Row A,B
Connector Row C,D
PCIEx4_0
x4 Slot1
PCIEx4_01
x4 Slot2
LAN1
RJ-45 (w/USB3.1 x2)
SATA III
Port 0-1
CB BIOS
PinHeader 1.27mm
CB BIOS
SPI Socket (SOB)
CB BIOS
PinHeader 4 x 2P
LPC
Pin Header 6x2P
Port 0-3
*Port 0
(option)
*eSPI (option)
Port 4-5
Port 4 (*Default)
I2C
Wafer Box 4P+EEPROM
Port 0-1
Port 2-3
Redundant
BIOS SPI
From EC
Port 3 option
Port 6-7 from Row C, D
PCIEX8
(PCIE8~15)
PCIEX16 (PCIE16~31)PCIEx1 Port 6-7KR & SideBand
PCIEX1
Port 0-5
USB 2.0
Port 0 - 3
LANSATA
USB 3.0 Port 0-3
SPILPC/eSPIGPIOCOMSMBUSNCSI I2C
Port 80
Port 80
GPIO
Pin Header 10P
Option
Circuit
PEGx1
Port 0-15
PCIEx4_1
x4 Slot2
Port 6-7
Port 4-5 from Row A,B
10G KR x 4
OCP Mezz Card
Connector C
USB 3.2 x 4
LAN1 (USB3.1 x2)
LAN2 (USB3.1 x2)
KR p15-x4 (Quad 0)
10GB Sideband
COM1
DSUB 9P
SMBUS
Wafer Box 4P
From EC
NC-SI
COM2
DSUB 9P
COM3&CANBUS
Box Header 5x2P
MicroSD
CARD
eSPI
Pin Header 5x2P
*eSPI (option)
(option)
