SOM-DB5720 User Manual 2
1.1 Introduction
SOM-DB5720 is a development board for COM-Express Type 1 & 2 pin-out module
that fully complies with the PCI Industrial Computer Manufacturers PICMG COM
Express standard. It is suitable for different form factor modules including COM-
Basic, COM-Compact, and COM-Mini. All functions provided by COM-Express type 2
pin-outs are implemented on SOM-DB5720 with the most popular interfaces or con-
nectors for ease of development and verification. Additional accessories help cus-
tomers evaluate more applications, such as DDI cards that provide extended
functions for HDMI/Displayport, PCIe riser card extend PCIe p10-x4 to PCIe x1, and tran-
sition boards make SOM-DB5720 compatible with type 1 pin-out. This board pro-
vides a reliable testing platform and the flexibility for customer vertical market
application pre-study.
1.2 SOM-DB5720 Connectors and Jumper Settings
1.2.1 SOM-DB5720 Connector Location

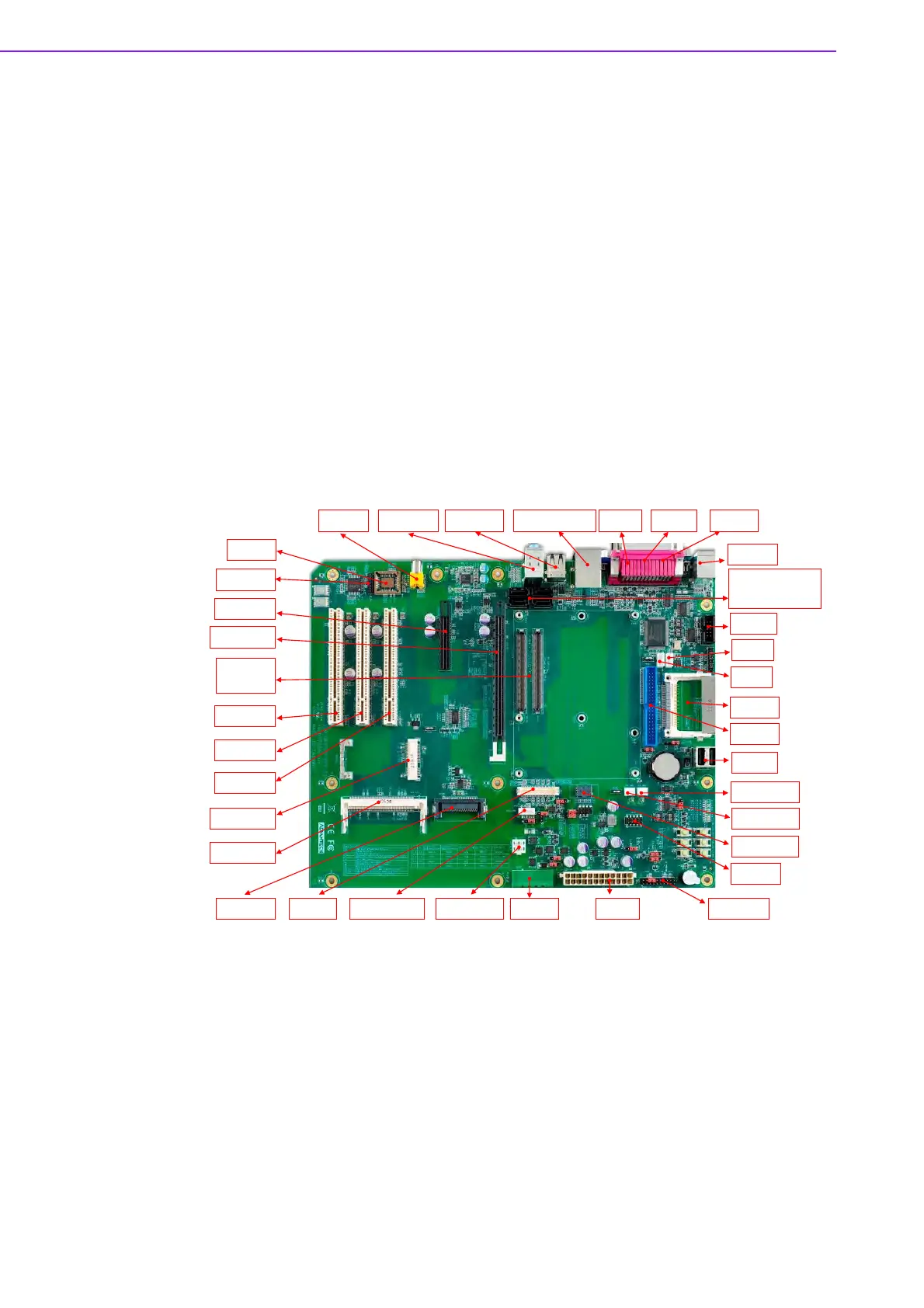

Figure 1.1 SOM-DB5720 Connector Location
3
FWH1
KBMS1
SOM-AB1
SOM-CD1
VGA1
COM1
LPT1
USB01_LAN1
USB23
AUDIO1
SATA0 SATA1
SATA2 SATA3
PCIE16X1
PCIE4X1
PCI2
SPDIF1
CF1
GPIO1
EPCARD1
DCIN1
ATX1
USB67
LVDS_IVTR1
LVDS1
MINIPCIE1
SYS_FAN1
SYS_FAN2
SPI_BIOS1
COM2
I2C1
SMB1
LPC_PH1
PATA1
MINIPCI1
ATX12V_1
PCI1
PCI0
F_PANEL1
