SOM-DB2500 User Manual 14
2.1 Board Information
The figures below indicate the main SMARC module locations on this carrier board.
When designing customized boards, be aware of positioning to avoid contact with
thermal solutions and other components for optimal performance and heat dissipa-
tion.

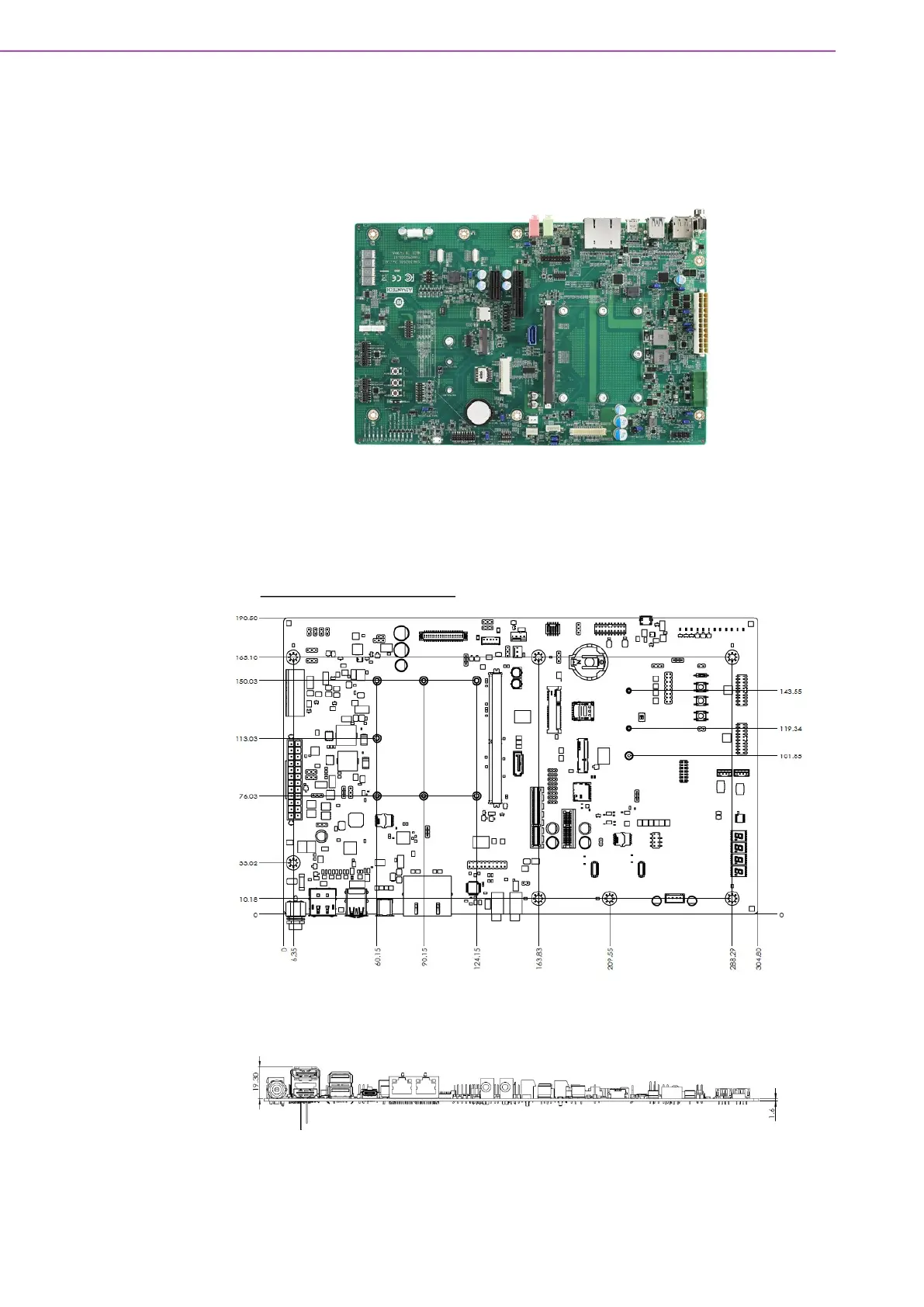

Figure 2.1 Board Chips Locations – Front
2.2 Mechanical Diagram
For more detail about 2D/3D models, please find on Advantech COM support service
website http://com.advantech.com
.
Figure 2.2 Board Mechanical Diagram – Front
Figure 2.3 SOM-DB2500 Board Mechanical Diagram - Side
