3 SOM-6872 User Manual
Chapter 1 General Information

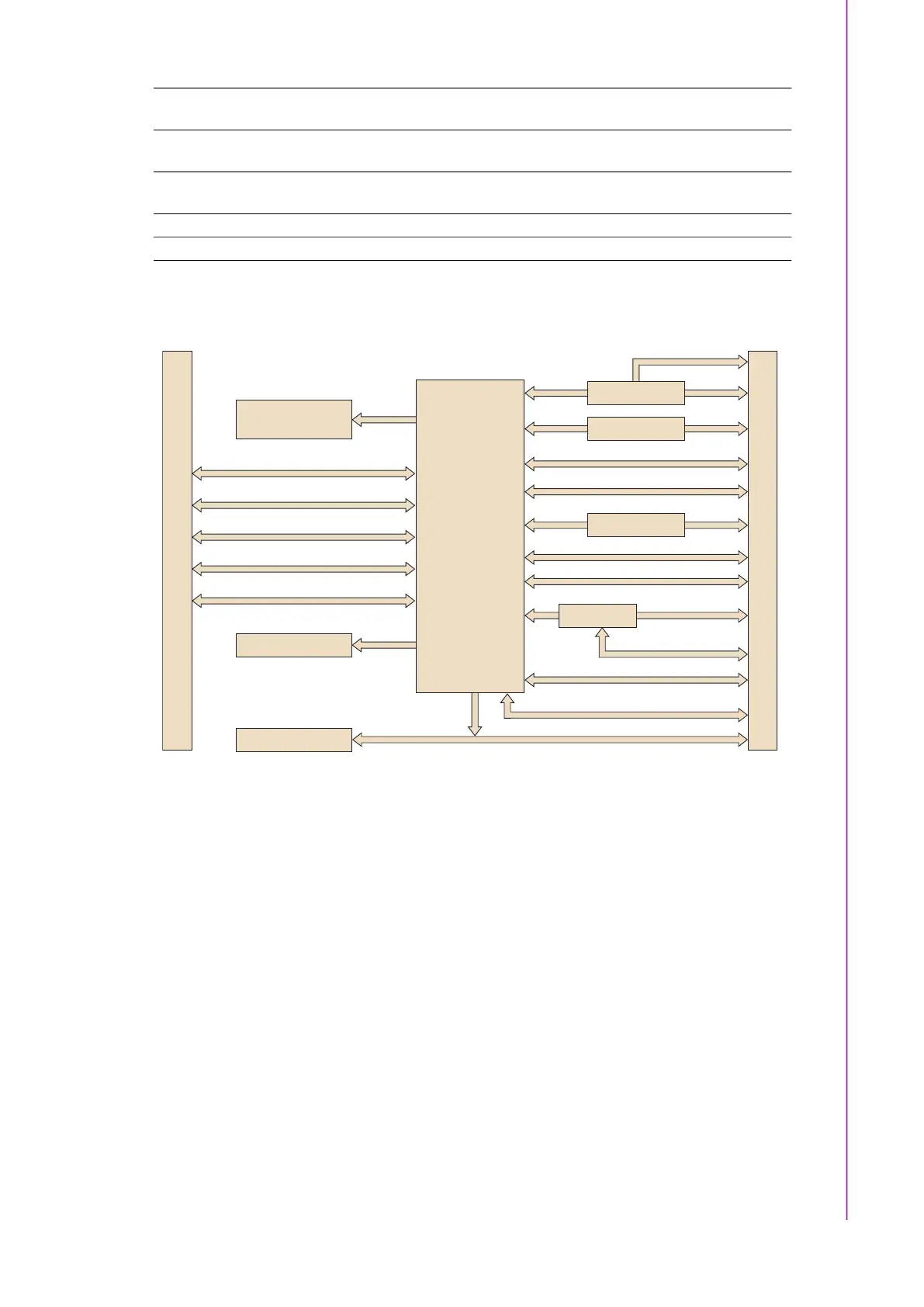

1.2 Functional Block Diagram
Figure 1.1 Functional block diagram (A1)
RTC
Real Time Clock – battery backed circuit in PC-AT systems that keeps system
time and date as well as certain system setup parameters.
SPD
Serial Presence Detect – refers to serial EEPROM on DRAMs that has DRAM
Module configuration information.
TPM
Trusted Platform Module, chip to enhance the security features of a computer
system.
UEFI Unified Extensible Firmware Interface
WDT Watch Dog Timer
Connector Row C,D
Connector Row A,B
2-CH DDR4 3200
SODIMM
Max. 64GB (w/ECC)
TPM 2.0
SPI BIOS
eDPto LVDS
DDI 1
LVDS
eDP(Option)
DP 3
DP 0
EIO-211
LPCLPC
DP to VGA
GbE
VGA
HD Audio
8x PCIex1 (max. 5 devices)
Bifurcate to x4, x2, x1
GPP #4-11
2x SATAIII
8x USB 2.0
I2C (Option)
SMBUS
I2C (default),
2 COM/1 CAN(option),
WDT, 8x GPIO, Smart Fan
GPP #2-3
GPP #0
DDI 2 DP 1
DDI 3 (Option , co-lay with VGA) DP 2
1x PEGx8 (max. 2 devices) GFX #0-7
SPI
2x USB 3.2 Gen 2
SOM-6872
COMeType 6
Compact (95x95)
AMD Ryzen
Embedded V2000
