11 SKY-MXM-A4500 User Manual
Chapter 2 System Requirements
2.6 DVI/HDMI on a DP Interface
Native DVI or HDMI connector support can be implemented using a DisplayPort
interface. Additional circuitry is required on the system and proper signal mapping
must be observed. As Figure 2.5 shows, 499Ω 1% pull-down resistors to ground on
the DP lane signals must be placed on the connector side of the AC coupling capaci-
tors gated by an FET to limit the leakage. Additionally, level-shifting circuits must also
be implemented on the DDC Data and Clock. Refer to the MXM Version 3.0 System
Design Guide for specific details.
Table 2.2 shows the mapping to connect the signals from the MXM connector to the
HDMI/DVI connector. For optional dual-link DVI support, refer to Table 2.3.

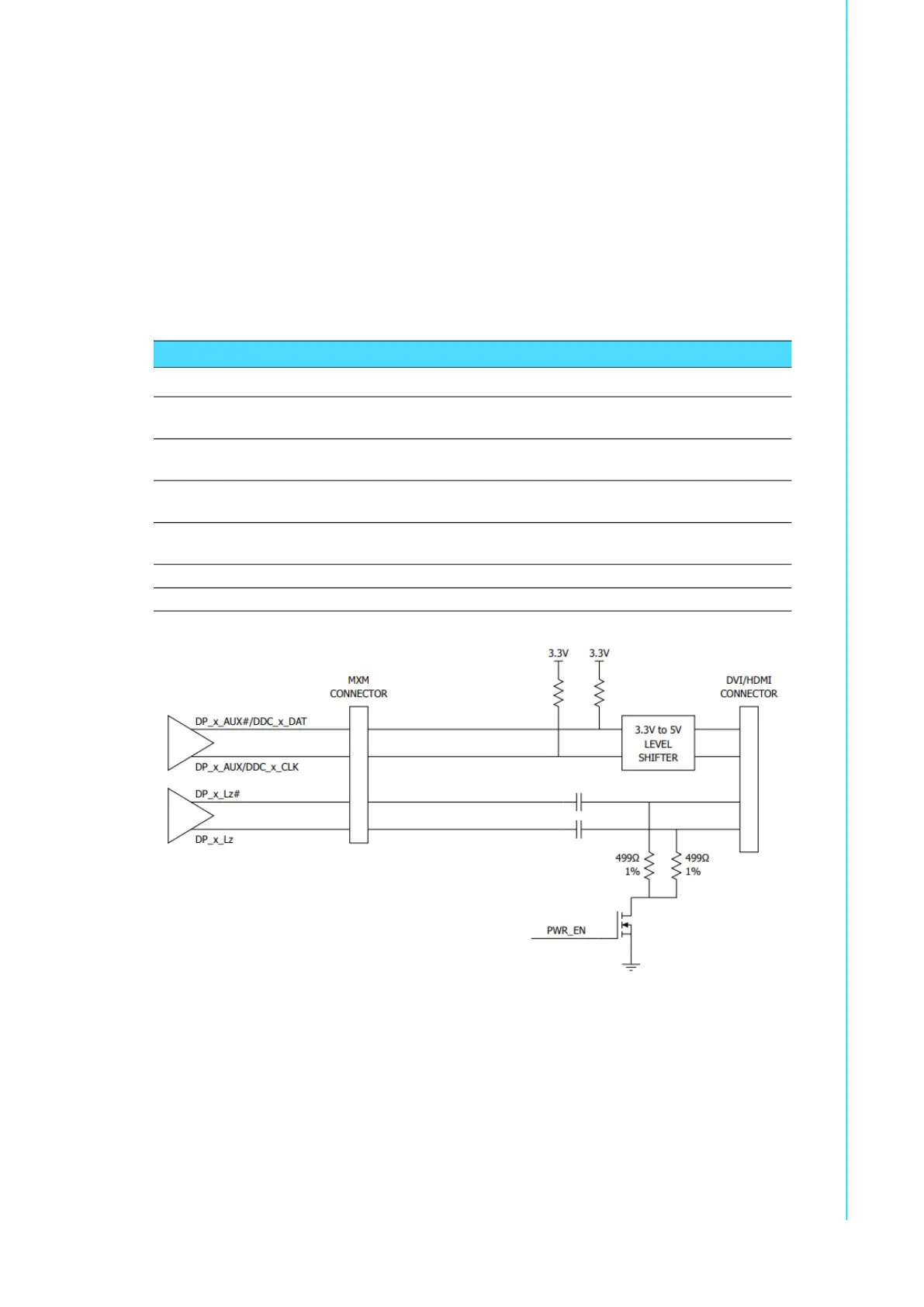

Figure 2.5 Dual-Mode DisplayPort Implementation
Table 2.2: DisplayPort Multiplexed Signal Definitions
Pin Name DVI/HDMI
DP_x_L0
DP_x_L0#
TX_x_D2
TX_x_D2#
DP_x_L1
DP_x_L1#
TX_x_D1
TX_x_D1#
DP_x_L2
DP_x_L2#
TX_x_D0
TX_x_D0#
DP_x_L3
DP_x_L3#
TX_x_CLK
TX_x_CLK#
DP_x_AUX DDC_x_CLK
DP_x_AUX# DDC_x_DAT
