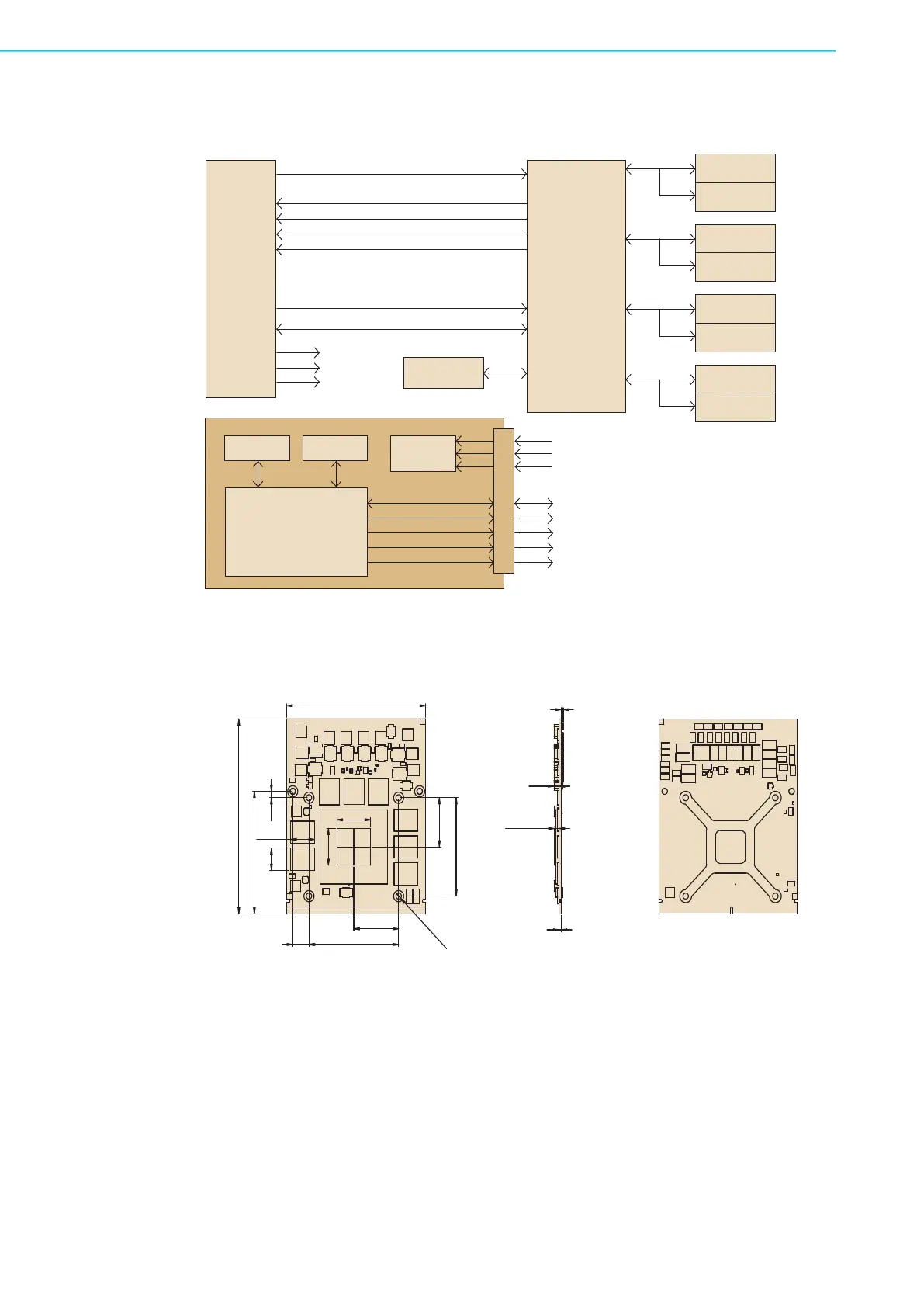

SKY-MXM-A4500 User Manual 4
1.4 Block Diagram
1.5 Board Dimensions
NVIDIA
Quadro A4500
EN20-E3-A1
115W
GDDR6 x32
memory down
8GB/16GB
GDDR6 memory,
256-bit
Channel A/B
16Mb
+7V~20V
+5V
+3.3V
PCI Express X16
DP_A: Display Port
DP_B: Display Port
DP_C: Display Port
DP_D: Display Port
PCIe p10-x16 Gen3
DP 1.4a
SPI
DP 1.4a
DP 1.4a
DP 1.4a
Power Management (PWR_EN、PWR_GOOD)
GDDR6
GDDR6 x32
memory down
SPI - VBIOS
VBIOS GDDR6
PWM
NVIDIA
Quadro A4500
MXM V3.1 G/F
MXM V3.1 Gold Finger
P_+3.3V
P_+12V
PCIe p10-x16 Gen3
IFPA
IFPB
IFPC
IFPE
DP_A
DP_B
DP_C
DP_D
PCIe
FBA
GDDR6 x32
memory down
8GB/16GB
GDDR6 memory,
256-bit
Channel A/B
GDDR6
GDDR6 x32
memory down
FBB
GDDR6 x32
memory down
8GB/16GB
GDDR6 memory,
256-bit
Channel A/B
GDDR6
GDDR6 x32
memory down
FBC
GDDR6 x32
memory down
8GB/16GB
GDDR6 memory,
256-bit
Channel A/B
GDDR6
GDDR6 x32
memory down
FBD
IFPA
IFPB
IFPC
IFPE
I2CS
PM
SPI
P_+5V
53.00
53.00
105.00
82.00
9.60
3.45
Ø3.25
19.74
19.84
66.00
12.00
14.00
26.50
26.50
3.00
2.90 ±0.15
1.20
1.20
