RSB-4710 User Manual 14
2.4.2 Connector Settings
2.4.2.1 Audio (AUDIO)
RSB-4710 supports Line-Out, Line-In, Mic-In, and Speaker-Out. Earphones should
not be connected to the Line-Out pin header. If earphone functionality is required, an
amplifier must be added, and the microphone connected to the Mic-In pin header.
RSB-4710 also supports a mono speaker (2.8W 4Ω or 1.5W 8Ω). Use a cable
(Advantech part number: 1700031093-01) for Line-Out and Mic-In tests.
The audio connector pins are defined below.

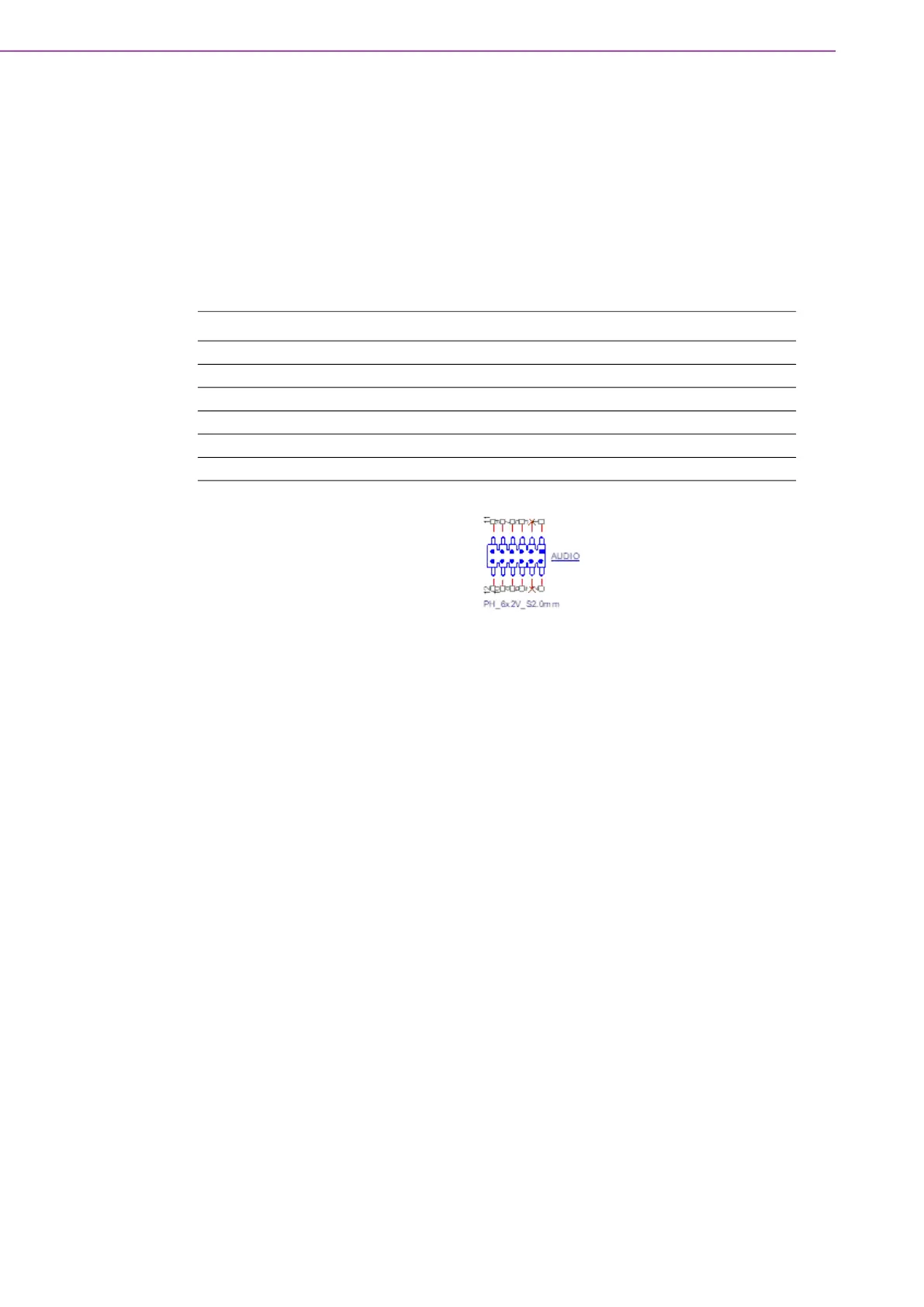

Figure 2.1 Audio Connector
Pin Pin Name Pin Pin Name
1 LOUTRC_M 2 LOUTLC_M
3 NC 4 NC
5 GND_A 6 GND_A
7 MIC_IN1_P 8 MIC_IN1_N
9 LINE_IN_R 10 LINE_IN_L
11 SPO_P 12 SPO_N
