13 RSB-4680 User Manual
Chapter 2 H/W Installation
LVDS Connector
2.2.2.5 LVDS Backlight Connector (LVDS_BL)
For avoiding to damage LCD panel, please make sure set a right voltage level before
power on while connecting a LVDS panel (refer to jumper setting description for
LVDS_BLP and LCD datasheet that you will use).

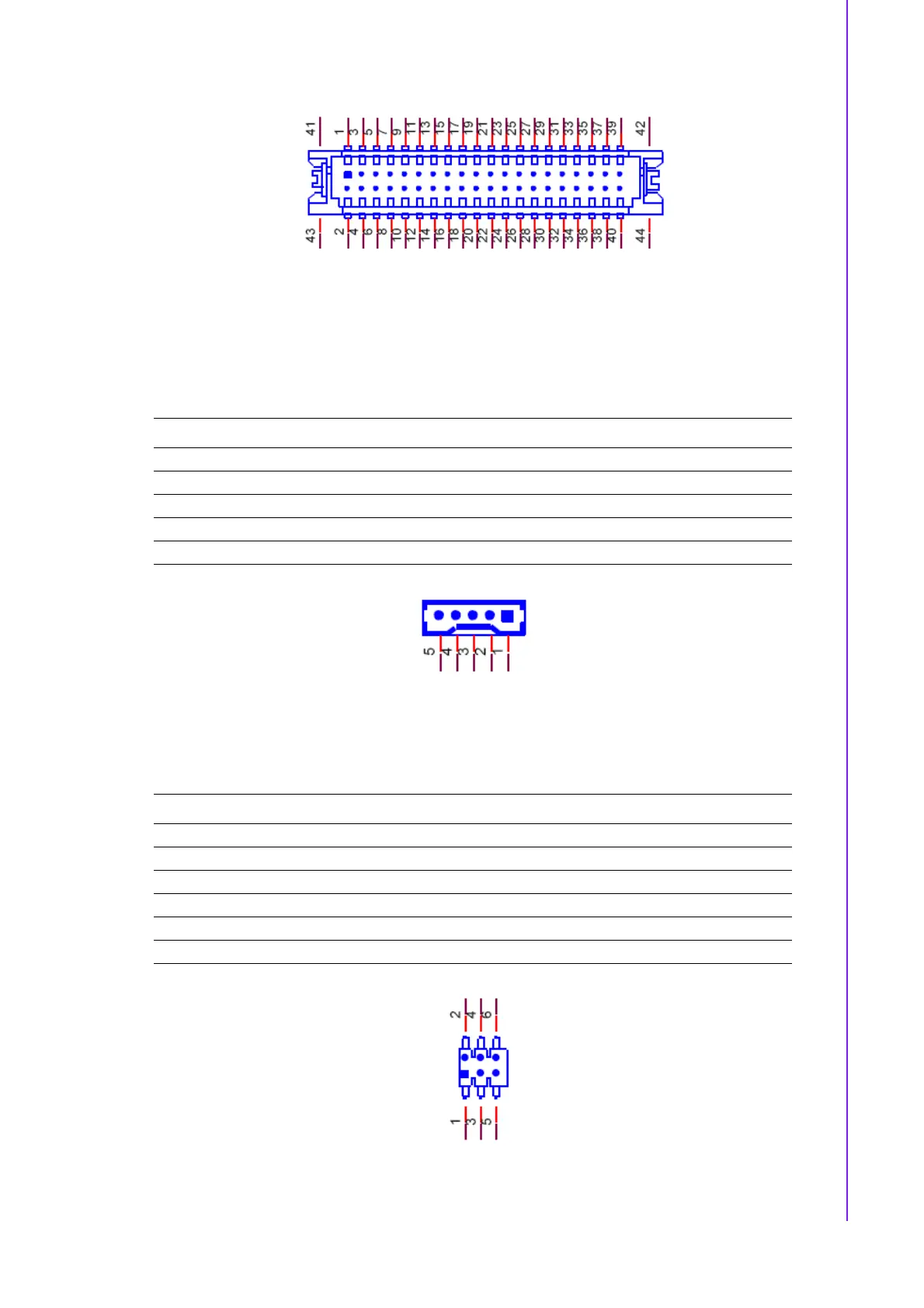

LVDS Backlight Connector
2.2.2.6 Power Button & LED (CN5)
RSB-4680 supports power button, power LED light and 4G LED light by 2x3 pin
header.
Power Button, Power LED and 4G LED Pin Header
Pin Pin Name
1 +VDD_BKLT_LVDS
2GND
3 LVDS_BKLT_EN
4 LVDS_BKLT_PWM
5 VCC_SYS(+5V)
Pin Pin Name
1 PWR BTN(PWR_BTN+)
2 GND(PWR_BTN-)
3 PWR_LED(PWR_LED+)
4GND(PWR_LED-)
5 +3.3V_PCIe(4G_LED+)
6 4GLED_WWAN#(4G_LED-)
