11 RSB-4680 User Manual
Chapter 2 H/W Installation
2.2.2 Connector Settings

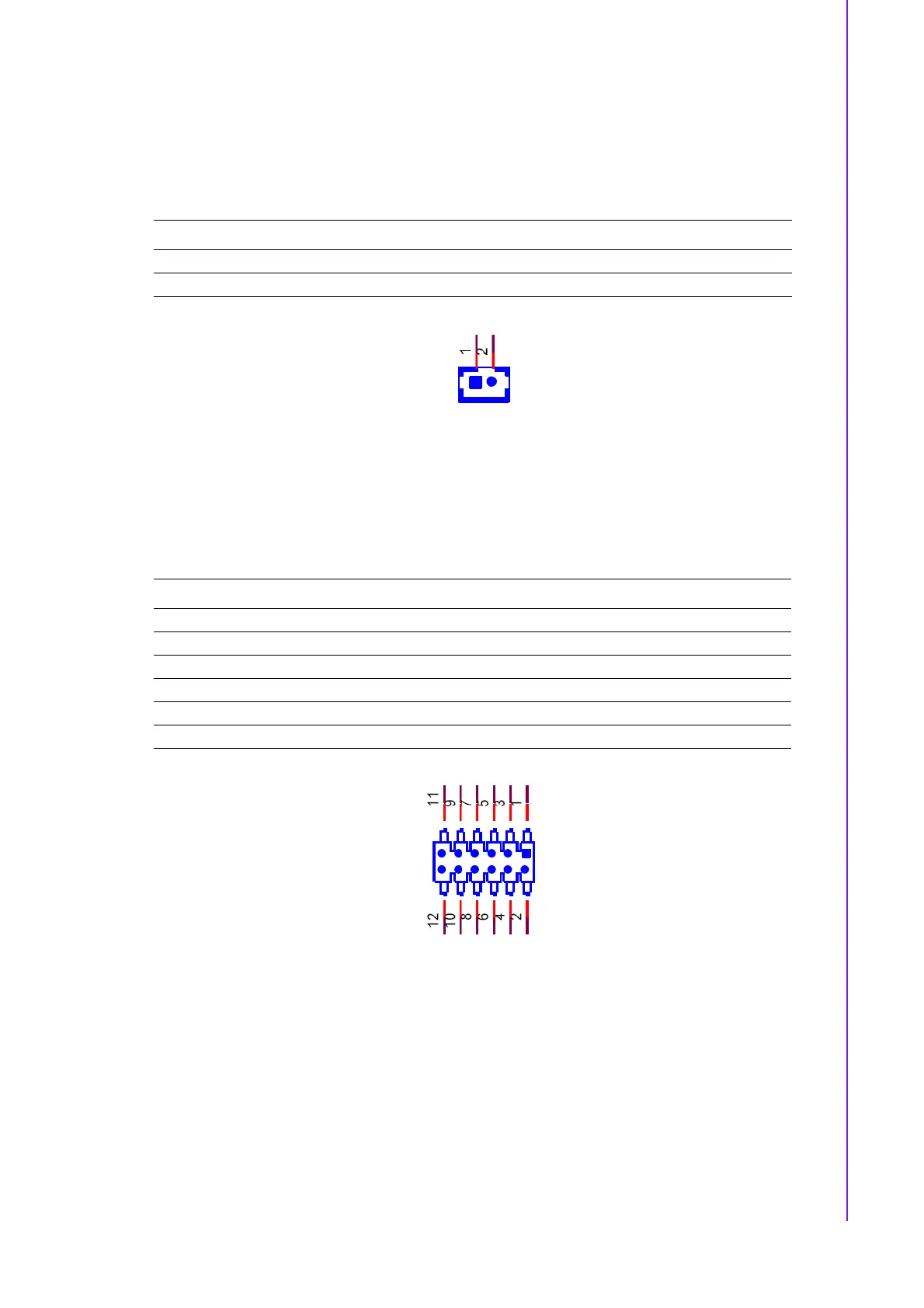

2.2.2.1 RTC Battery Connector (BAT)
RSB-4680 supports a lithium 3V/210mAH CR2032 battery with wire via battery con-
nector.
2.2.2.2 Audio (CN2)
RSB-4680 supports line-out stereo speakers, MIC in and speaker out. Earphones
can be connected to the line-out pin header, and the microphone can be connected
to the MIC in pin header. It also supports mono speaker. (2.8W 4Ω or 1.5W 8Ω)
Detailed pin-definitions are below:
Audio Connector
Pin Pin Name
1COIN_RTC
2GND
Pin Pin Name Pin Pin Name
1 Line-out R+ (AMP_R+) 2 Line-out L+ (AMP_R-)
3 AMP_R- 4 AMP_L-
5AMP_AGND 6 GND_AUDIO
7 MIC_IN1_P 8 MIC_IN1_N
9 MIC_IN3_P 10 MIC_IN3_N
11 SPEAKER_P 12 SPEAKER_N
