3 RSB-4411 User Manual
Chapter 1 General Introduction
1.2.2 Mechanical Specifications
Dimension: 146 x 102 mm (5.7”x4”)
Height: 15.92 mm
Reference Weight: 640 g (including whole package)
1.2.3 Electrical Specifications
Power supply type: DC-in 12 V/ 19V /24V
Power consumption:
– Kernel Idle mode: TBD
– Max mode: TBD
RTC Battery:
– Typical voltage: 3.0 V
– Normal discharge capacity: TBD
1.3 Environmental Specifications
Operating temperature: 0 ~ 60° C (32 ~ 140° F)
Operating humidity: 40° C @ 95% RH Non-condensing
Storage temperature: -40 ~ 85° C (-40 ~ 185° F)
Storage humidity: 60° C @ 95% RH Non-condensing

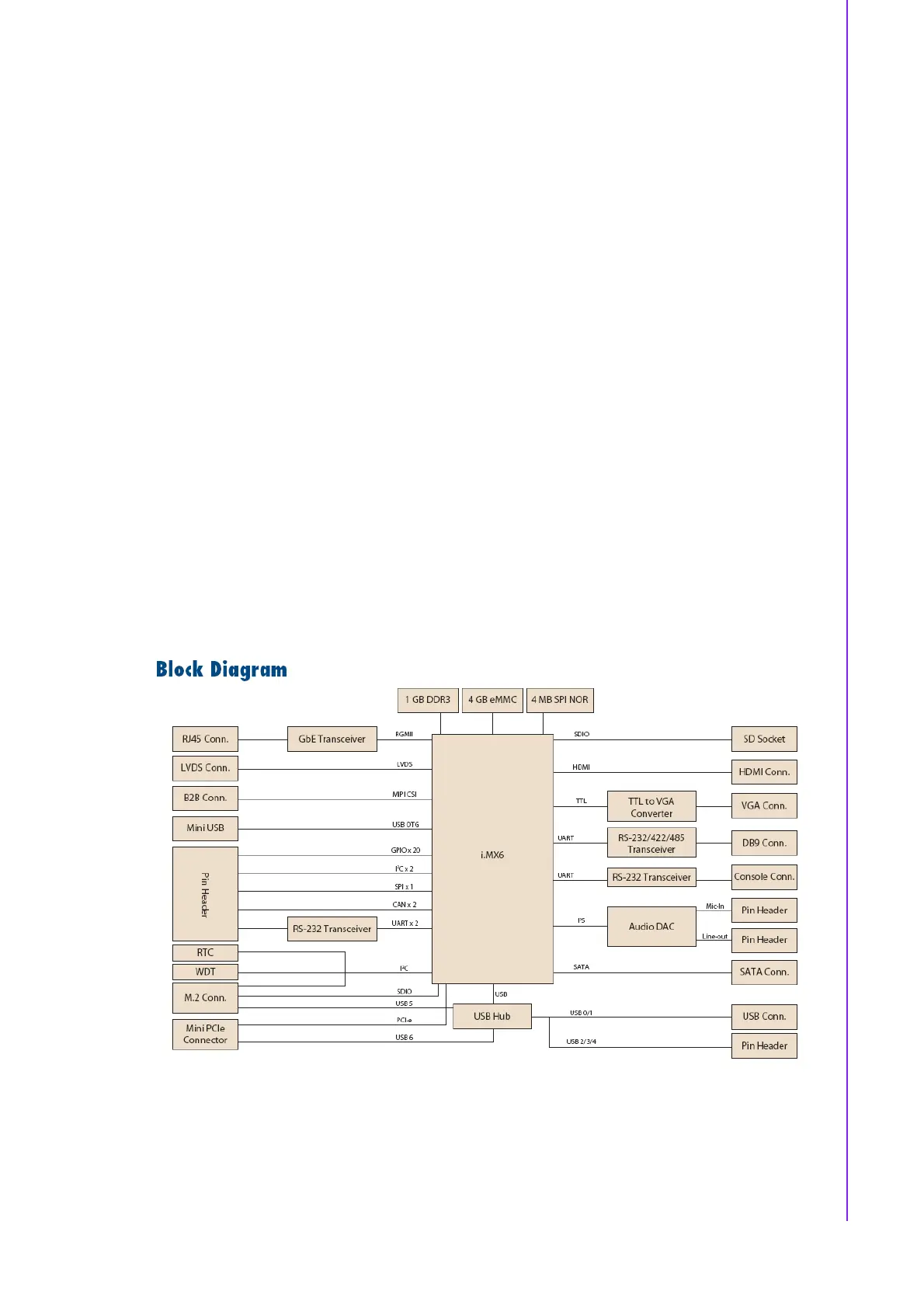

1.4 Block Diagram
