3 RSB-4410 User Manual
Chapter 1 General Introduction
1.2.2 Mechanical Specifications
Dimension: 146 x 102 mm (5.7”x4”)
Height: 15.92 mm
Reference Weight: 640 g (including whole package)
1.2.3 Electrical Specifications
Power supply type: DC-in 12 V
Power consumption:
– Kernel Idle mode: 2.3 W
– Max mode: 4.08 W
RTC Battery:
– Typical voltage: 3.0 V
– Normal discharge capacity: 3 uA
1.3 Environmental Specifications
Operating temperature: 0 ~ 60° C (32 ~ 140° F)
Operating humidity: 40
° C @ 95% RH Non-condensing
Storage temperature: -40 ~ 85
° C (-40 ~ 185° C)
Storage humidity: 60° C @ 95% RH Non-condensing

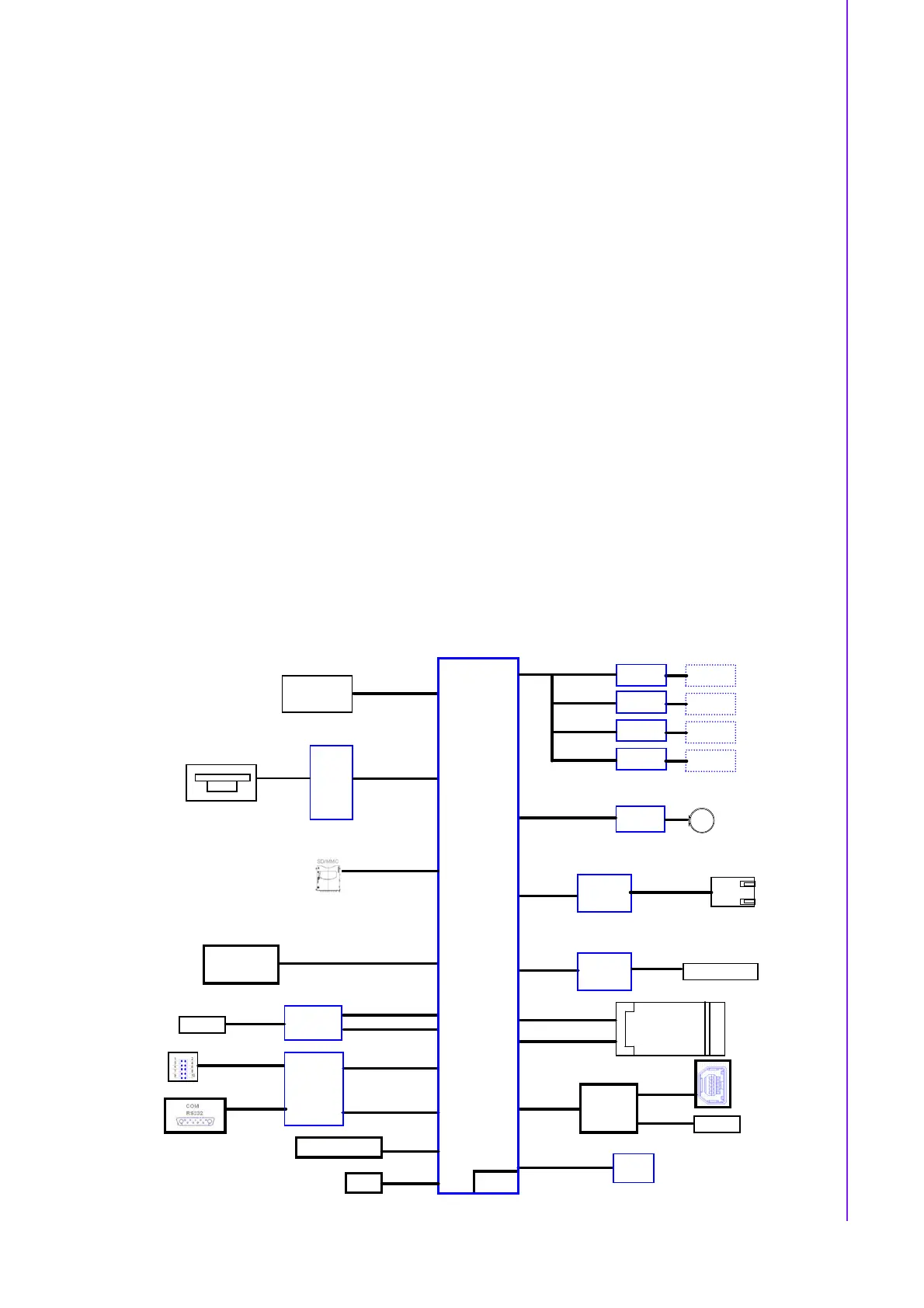

1.4 Block Diagram
RS232 Port
ECSPI-1
Flash (boot)
VGA
PCT_PCT25
I2S
I2S Audio DAC
FSC
STGL5000
Line IN
USB 0
CY7C65630
SD-Port 4
Watchdog
TI_MAX3232IPW
CH7055A
VGA
USB Port * 2
UART * 2
Pin Header
TTL 24bit
VGA
LAN
3G Module
RS232 TX/RX
TI_MAX3243IDB
(Debug Port)
SEIKO
S-35390A
RTC
BH1
Battery
Holder
RTC Battery (Cable)
UART4_(2Wire)
UART3_(2Wire)
GIGA
ATHERO
AR8033-AL1B
RGMII
Ethernet
DDR3 BGA
256MB
DDR3 BGA
256MB
DDR3 BGA
256MB
DDR3 BGA
256MB
DDR3 BGA
256MB
DDR3 BGA
256MB
iNAND
4GB
Wireless LAN Module
PCI-E * 1
HDMI
HDMI Connector
Freescale
i.MX6
DDR3 BGA
1GHz
256MB
DDR3/ 800 MHZ
DDR3 BGA
256MB
I2C-1
SD-Port 2
LVDS0
LVDS Connector
CIR
PHONE JACK
USB 1
USB HUB
Pin Header
UART1_(2Wire)
UART2_(4Wire)
