3 RSB-4220 User Manual
Chapter 1 General Introduction
1.2.2 Mechanical Specifications
Dimensions: 146 x 102 mm (5.7 x 4”)
Height: 15.92 mm
Reference Weight: 640g (entire system)
1.2.3 Electrical Specifications
Power Supply Type: DC-in 12/19/24 V
Power Consumption:
– Kernel idle mode: 7.06 W (w/display)
– Max mode: 7.7 W (w/display)
RTC Battery:
– Typical voltage: 3.3 V
– Normal discharge capacity: 210 mAh
1.3 Environmental Specifications
Operating Temperature: 0 ~ 60° C (32 ~ 140°F) / -40 ~ 85° C (-40 ~ 185°F)
Operating Humidity: 40 °C @ 95% RH non-condensing
Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
Storage Humidity: 60 °C @ 95% RH non-condensing

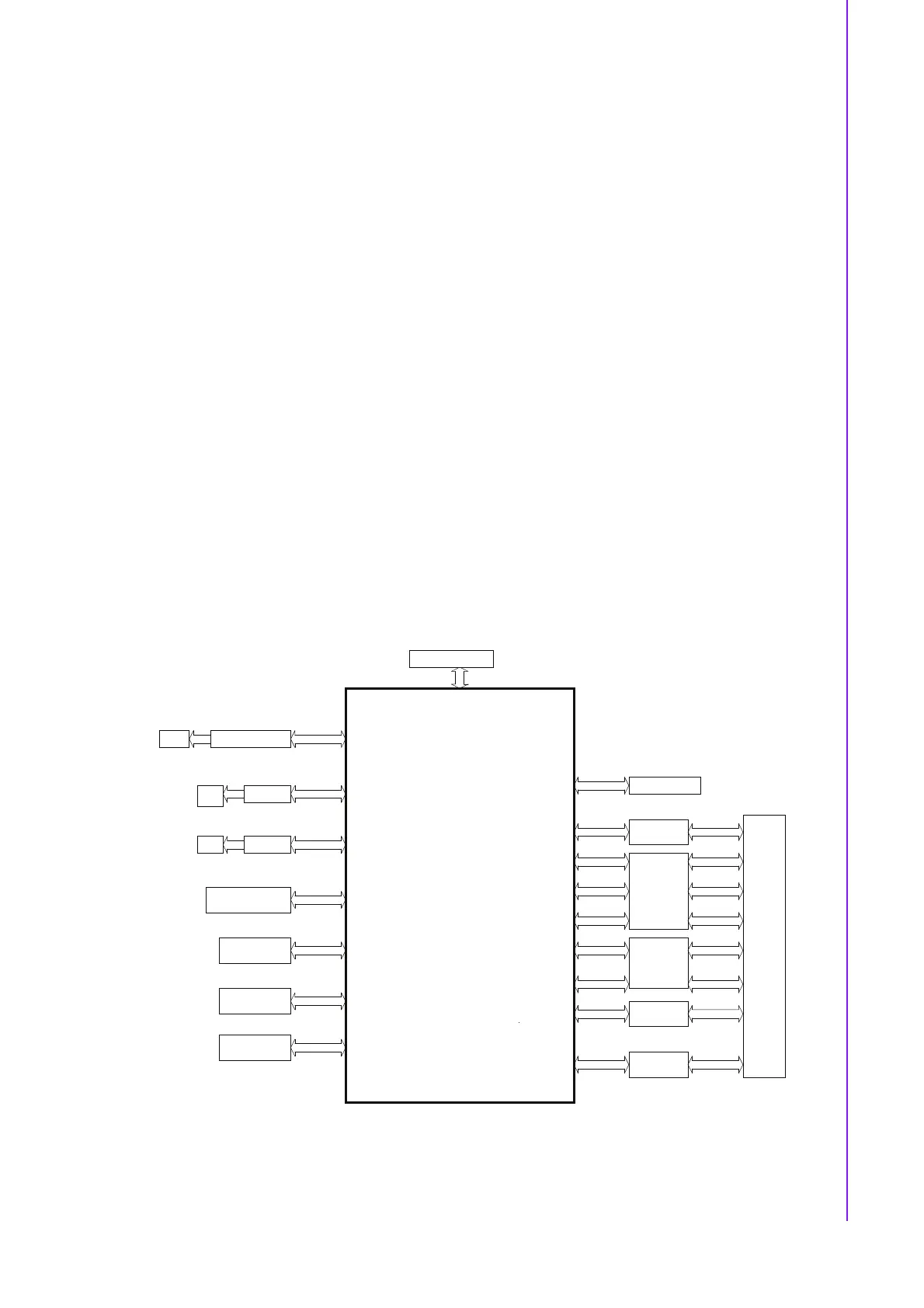

1.4 Block Diagram
2*256Mb*8 DDR3
TI Sitara
AM3352 1GHz
SN75LVDS83ADGGRLVDS
RTL8211E
RJ45
RTL8211E
USB Host/OTG
MINI-PCIE SOCKET
SD SOCKET 4bit
4MB NOR FLASH
4GB NAND FLASH
MAX3243
SN65HVD232
RGMII1
RGMII2
USB1
USB0
SDIO
I2C0
SPI0
eMMC
DDR3
RJ45
Terminal Block
UART1
UART2
UART5
UART3
UART4
UART0
PCA9538
MAX3243
LCD
CAN0
MAX3243
GPIO
