RSB-4220 User Manual 22
2.4 Quick Start
2.4.1 Debug Port Connection
1. Connect debug port cable to the RSB-4220’s debug port.
2. Connect the other end of the debug cable to a USB-to-RS-232 cable connected
to your PC.
2.4.2 Debug Port Setting
RSB-4220 supports communication with a host server (Windows or Linux) via serial
cables. Standard serial communication programs, such as HyperTerminal, Tera Term
or PuTTY, can be used for this purpose. The example below demonstrates the serial
terminal setup process, using HyperTerminal on a Windows host.
1. Connect RSB-4220 to your Windows PC via a serial cable.
2. Open HyperTerminal on your Windows PC, and select the settings shown in Fig-
ure 2-7.
3. After the bootloader is programmed on the SD card, insert the power adapter
connector into the DC jack on RSB-4220 to power up the board. The terminal
screen will display the bootloader prompt.

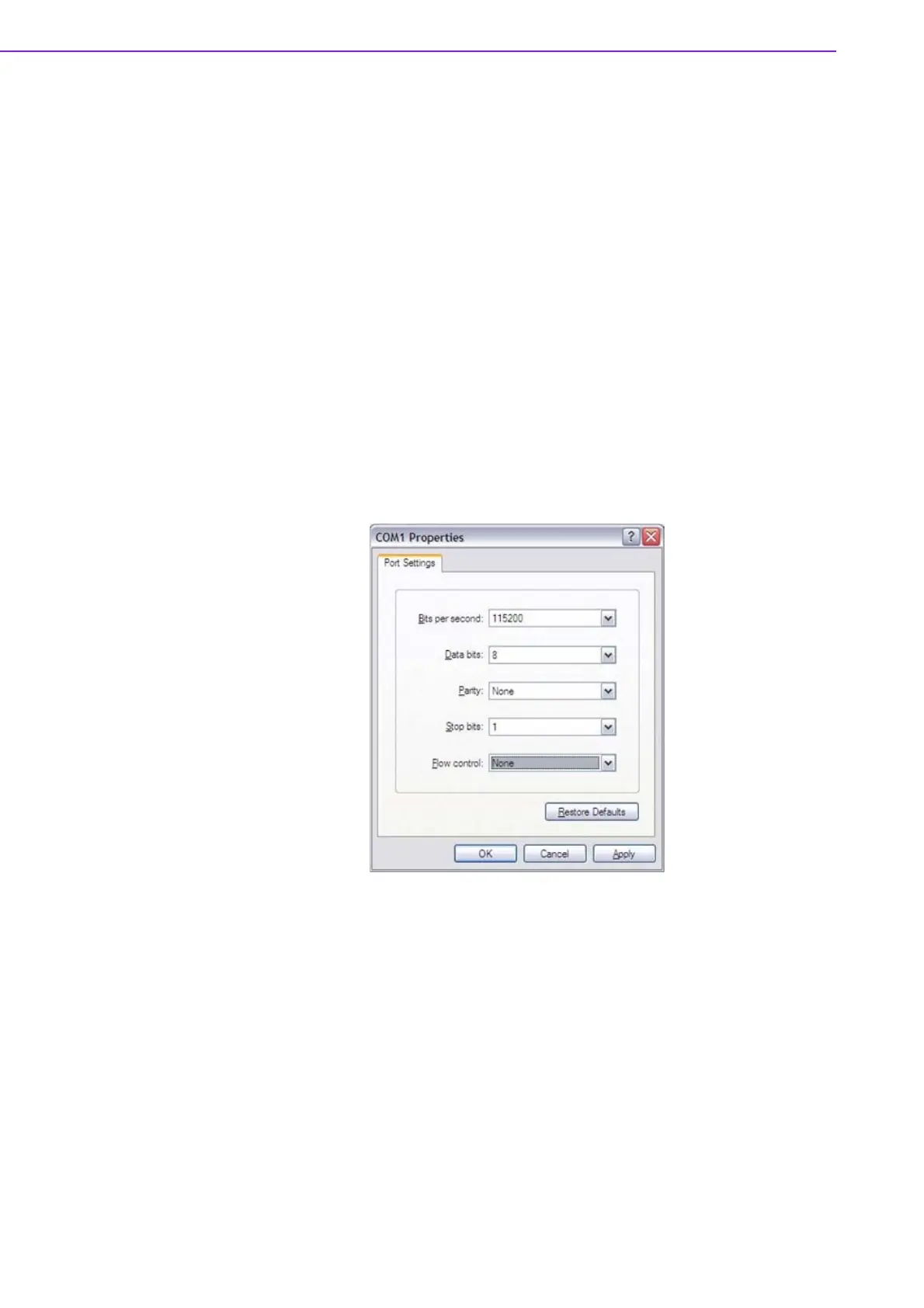

Figure 2.17 HyperTerminal Settings for Terminal Setup
