27
RSB-3810 User Manual

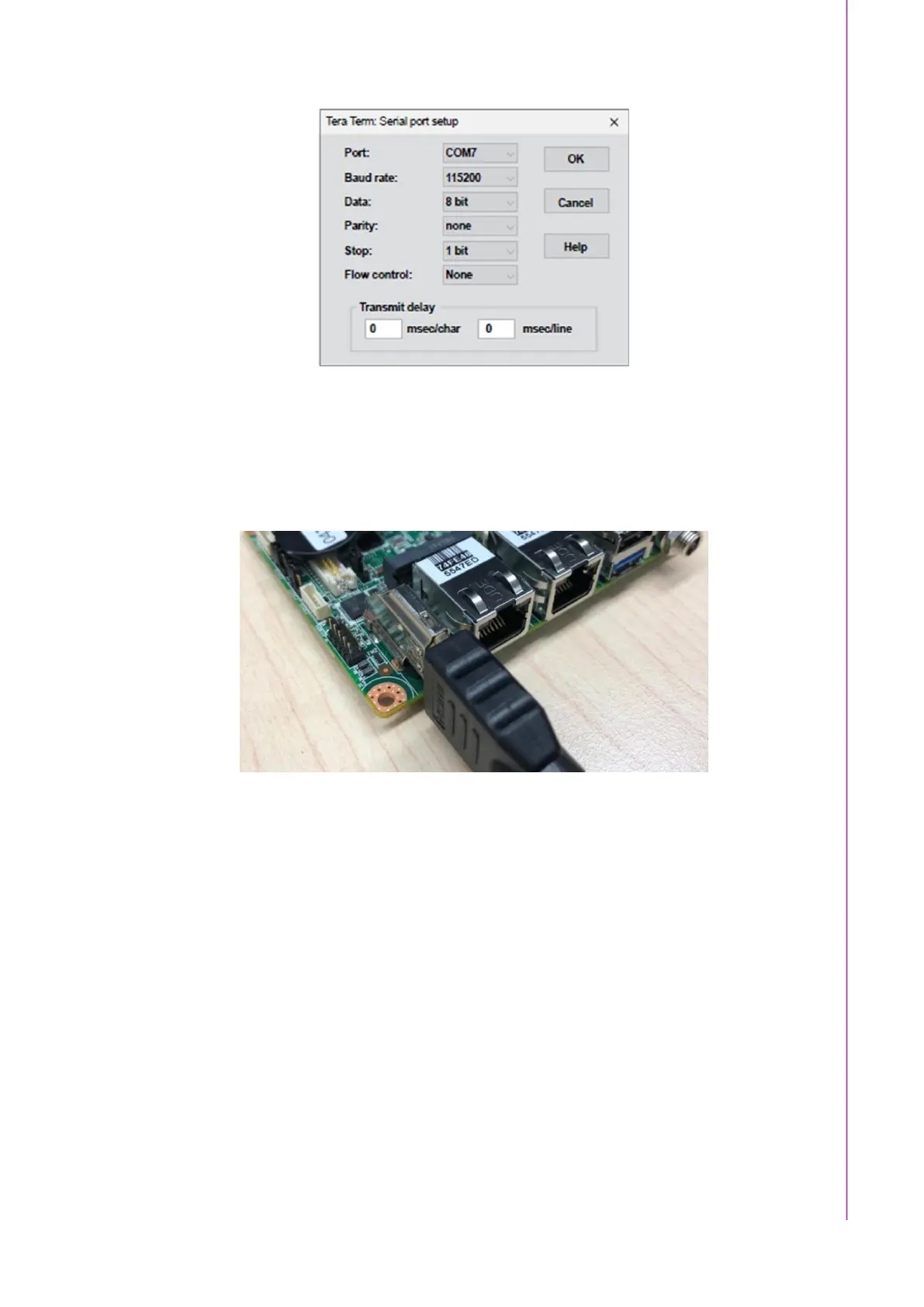

Figure 2.4
3. Connect a Display:
RSB-3810’s default display interface is HDMI. When you use HDMI display as an
example, please connect the HDMI display cable to RSB-3810’s HDMI con- nector
as shown in Figure 2.24.
Figure 2.5
4. Connect the Power Source:
RSB-3810’s power input is 12VDC. The power interface’s location is DCIN1. Please
choose a suitable adapter and power cord to connect the board (please refer to P/Ns
on datasheet and Optional Accessories of this manual) as shown in Figure 2.25.
Chapter
2
Hardware
Installation
