7 RSB-3720 User Manual
Chapter 2 Hardware Installation

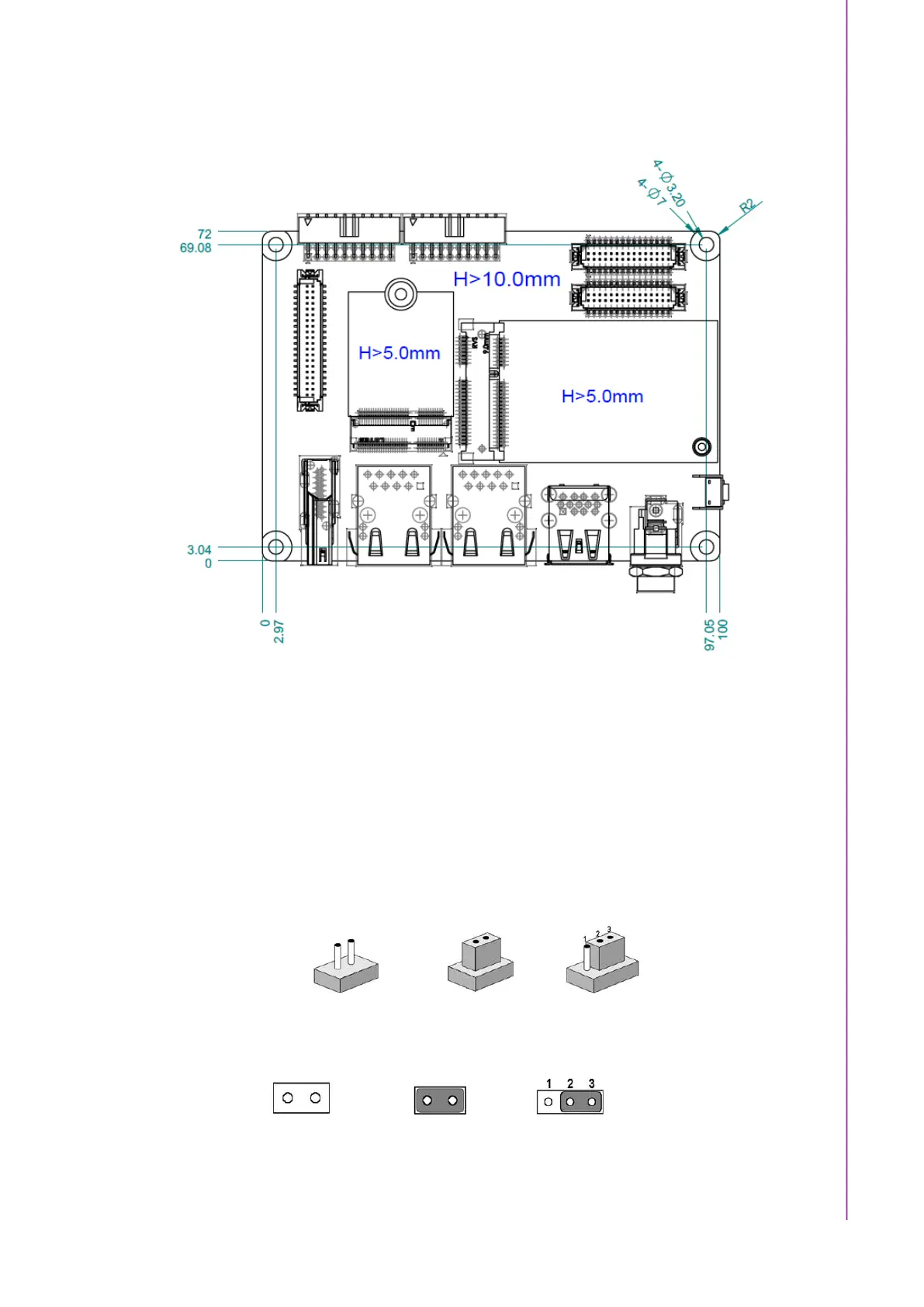

2.2 Board Dimensions
2.3 Jumpers
2.3.1 Jumper Description
Cards can be configured by setting jumpers. A jumper is a metal bridge used to close
an electric circuit. It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To close a jumper, con-
nect the pins with the clip. To open a jumper, remove the clip. Sometimes a jumper
will have three pins labeled 1, 2, and 3. In such cases, connect either pins 1 and 2 or
pins 2 and 3.
The jumper settings are schematically depicted in this manual as follows:
