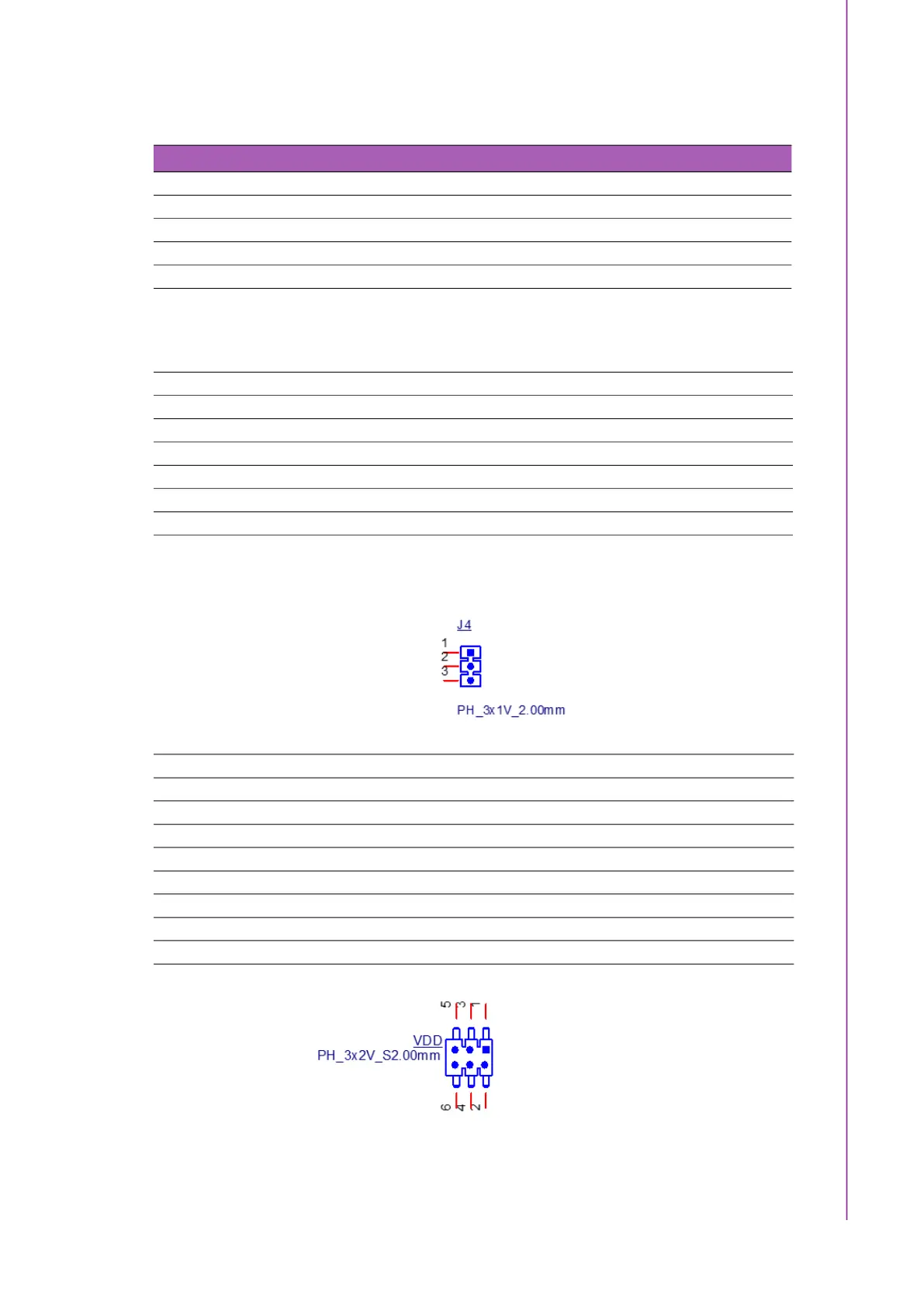

7 RSB-3710 User Manual
Chapter 2 H/W Installation
2.2.2 Jumper List
2.2.3 Jumper Settings
This pin header is designed for selecting the com port and debug mode select.
Table 2.1: Jumper List
J4 COM2RS232 and debug mode select
VDD LVDS VDD 3.3V &5V level select & LVDS BKL PWR 3.3V&5V PWR select
BLP2 LVDS BKL PWR 12V select
SW1 AT & ATX Mode Switch
BTN Maskrom mode select
J4 Uart2 use for com port and debug mode select
Part number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2) Debug port
(2-3) RS232
VDD LVDS VDD 3.3V &5V level select & LVDS BKL PWR 3.3V&5V PWR select
Part number 1653003260
Footprint HD_3x2P_79
Description PIN HEADER 3x2P 2.0mm 180D(M) SMD 21N22050
Setting Function
(1-3) LVDS VDD 5V
(3-5) LVDS VDD 3.3V
(4-6) LVDS BKLT PWR 3.3V
(2-4) LVDS BKLT PWR 5V
