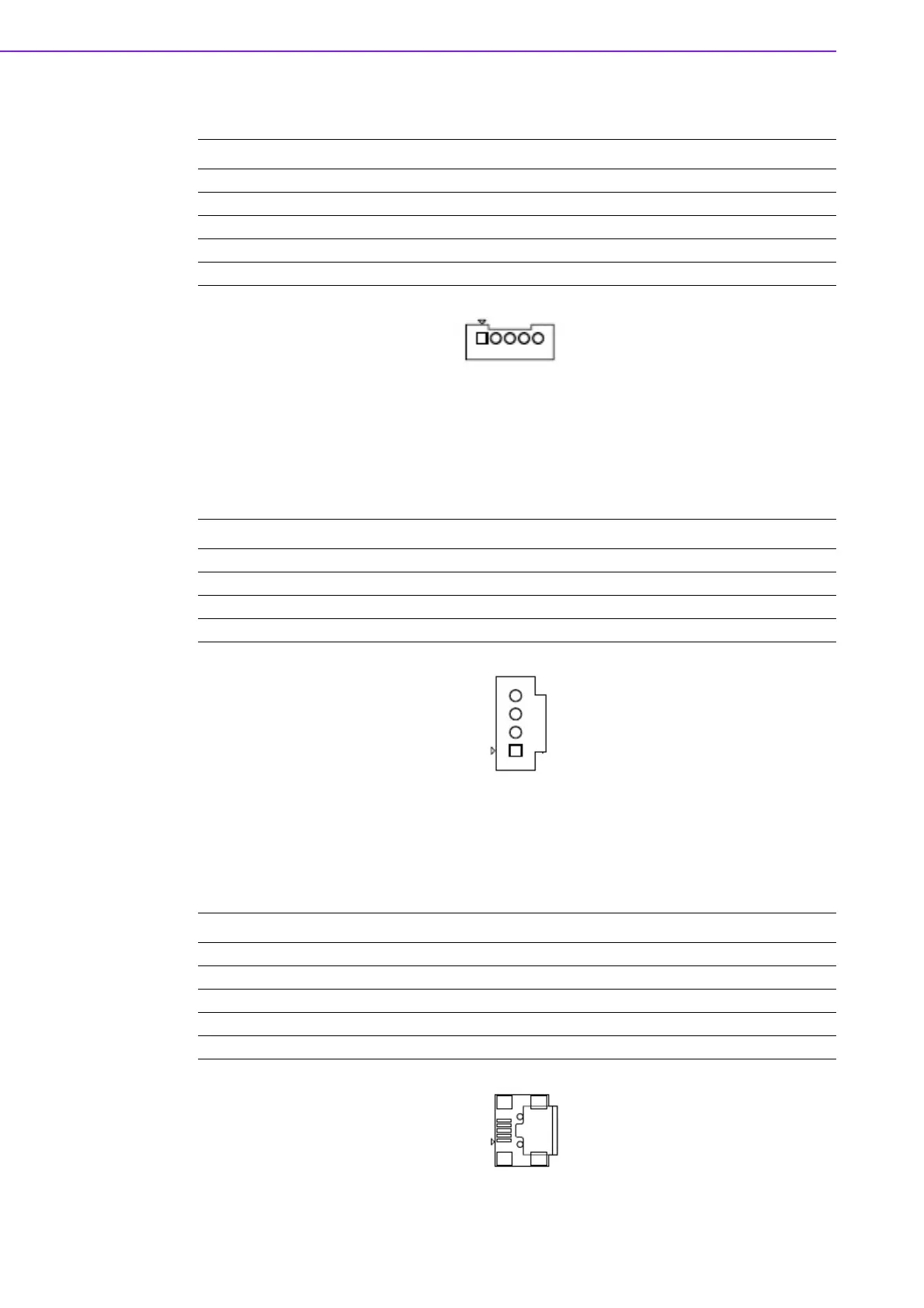

ROM-7420 User Manual 18
L. LVDS Inverter Power Connector
Please also refer to jumper setting in page 10 before connecting LVDS panel.
Figure 2.13 LVDS Power Connector
Q. Front Panel USB Header
This pin header is for USB extension of the USB port(s) in the front panel of the min-
iATX Chassis. We provide adapter cable along with ROM-7420 evaluation kit for
device integration.
Figure 2.14 USB Header
P. U S B O T G
Standard mini USB connector is used for USB OTG support. Users can connect
ROM-7420 evaluation kit to desktop/laptop PC through this connector.
Figure 2.15 USB OTG
Pin Signal Name
1 +12V
2GND
3 BKL_EN
4 BKL_CTL
5+5V
Pin Signal Name
1+5 VDC
2D -
3D +
4Ground
Pin Signal Name
1+5V
2 USB OTG D -
3 USB OTG D +
4OTG ID
5GND
