ROM-7420 User Manual 12
2.4.1 Back panel connectors
There are several connectors located in the back panel of ROM-DB7500. Since
ROM-DB7500 is in mini-ITX form factor, it can fit any mechanical chassis specialized
for miniITX form factor. As a result, below back panel I/Os were reserved for system-
leveled integration.

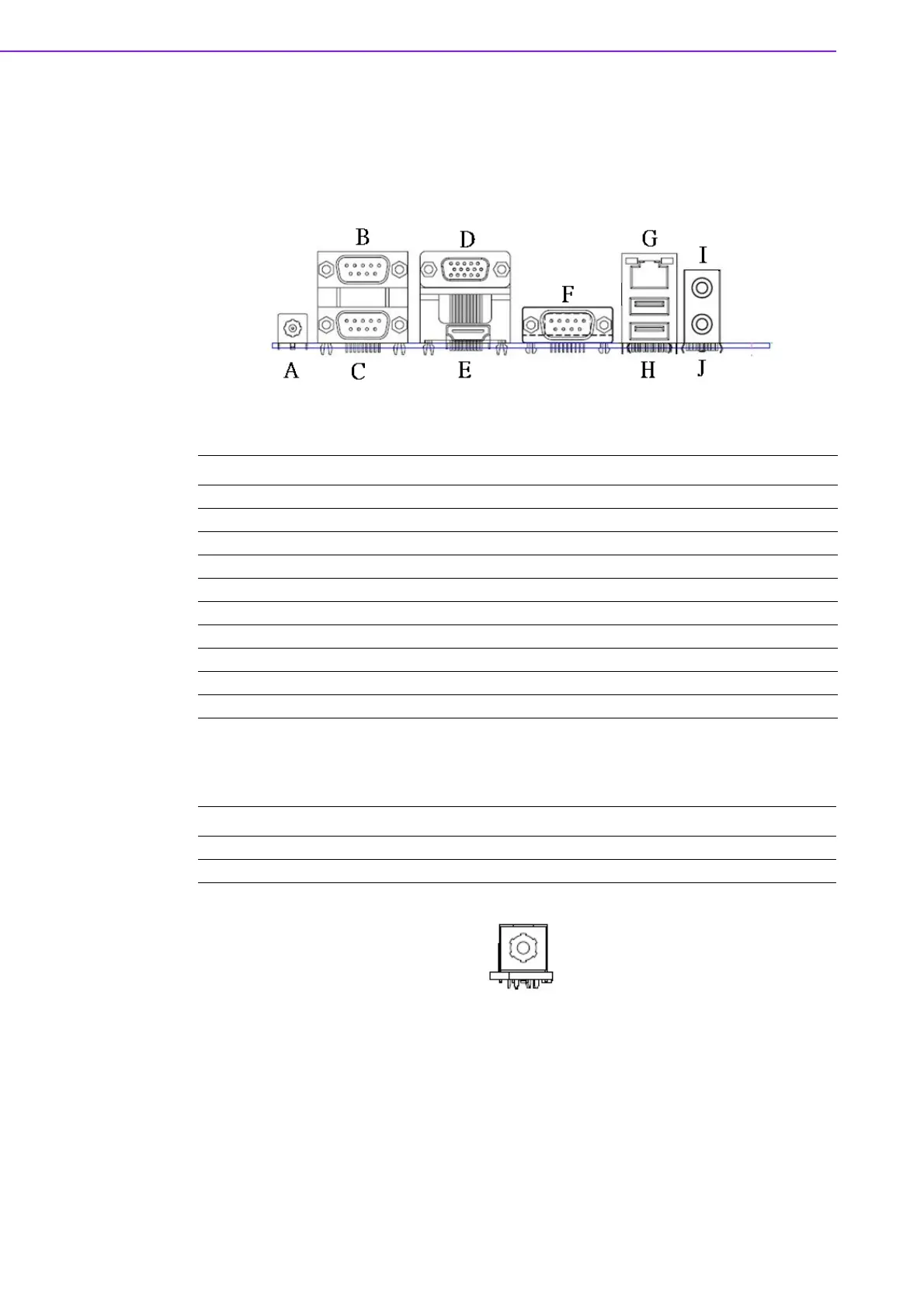

Figure 2.4 Back Panel connectors
A. DC Jack Connector
Please apply 12V power adapter through this connector.
Figure 2.5 DC Jack
Item Description P/N
A DC Jack 1652005624
B CAN Bus 1 1654009494
C CAN Bus 2 1654009494
D VGA Port 1654010443
E HDMI Port 1654010528-01
F GPIO Port 1654008866
G NIC Port 0 (GbE) 1652003674
H USB 2.0 Port 2 (lower) and 1 (upper) 1652003674
I Line-Out Port 1652005286
J MIC-In Port 1652005286
Pin Signal
1 +12V
Shield GND
