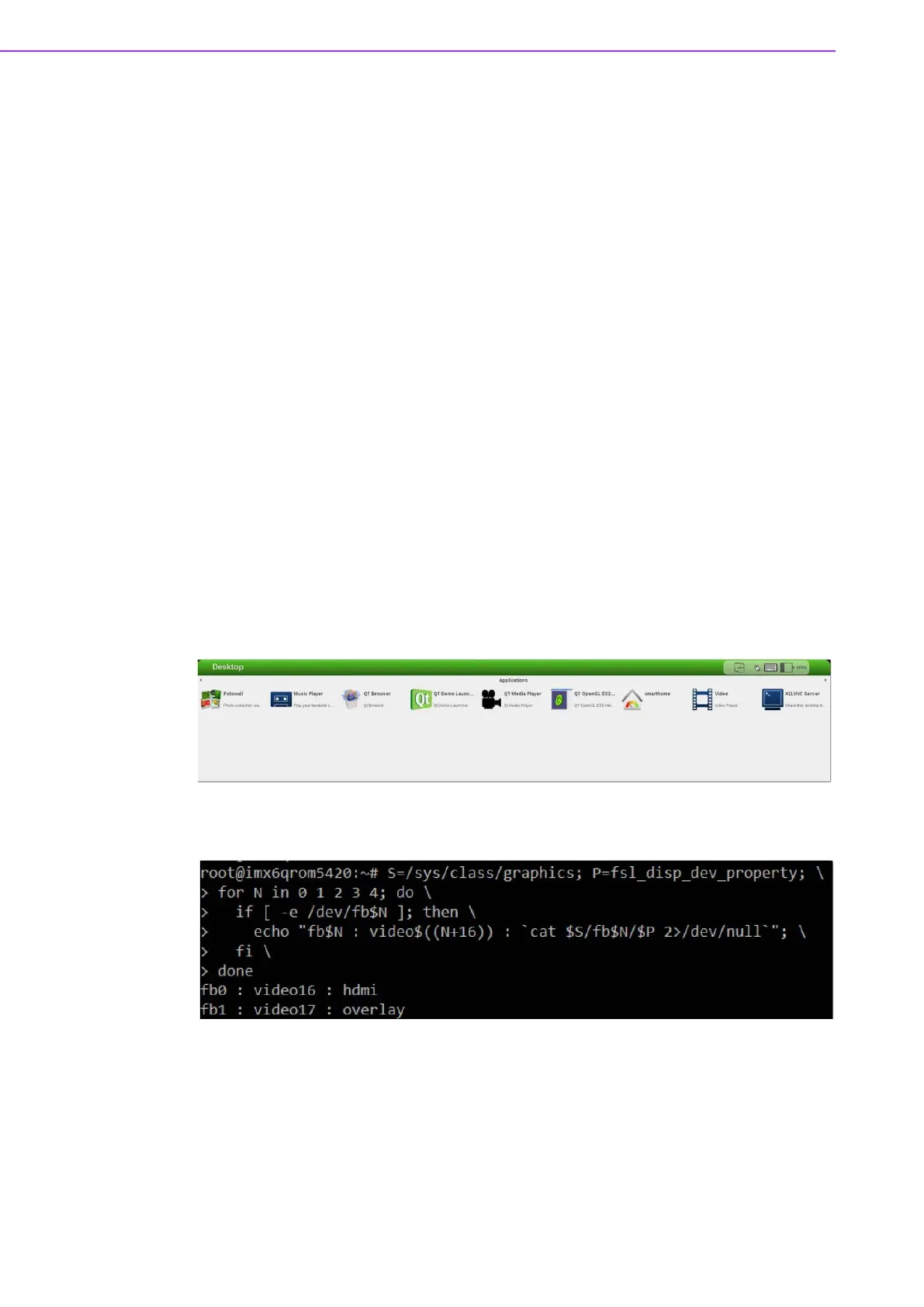

ROM-5420 B1/B2 User Manual 10
3.1 Test Tools
All test tools must be verified with the ROM-5420 Evaluation Kit. Please prepare the
required test fixture before verifying each specified I/O. If you have any problems get-
ting the test fixture, please contact your Advantech representative for help.
3.1.1 Display Test
Use the following command to test the functionality of the video device.
# S=/sys/class/graphics; P=fsl_disp_dev_property; \
for N in 0 1 2 3 4; do \
if [ -e /dev/fb$N ]; then \
echo "fb$N : video$((N+16)) : `cat $S/fb$N/$P 2>/dev/null`"; \
fi \
done
3.1.1.1 Single Display - HDMI
U-Boot configuration
> setenv mmcargs setenv bootargs console=${console},${baudrate}
${smp}
root=${mmcroot} video=mxcfb0:dev=hdmi,1920x1080M@60,if=RGB24
video=mxcfb1:off
video=mxcfb2:off
> saveenv
> reset
Test the functionality of the video device
Play video on the HDMI overlay
# gst-launch filesrc location=/tools/Advantech.avi typefind=true !
aiurdemux ! queue ! vpudec ! mfw_v4lsink device=/dev/video17
3.1.1.2 Single Display - LVDS
Setup power voltage for LVDS_BL (V5 or V12)
U-Boot configuration
