29 PPC-6151C/6171C User Manual
Chapter 2 System Installation and Setup

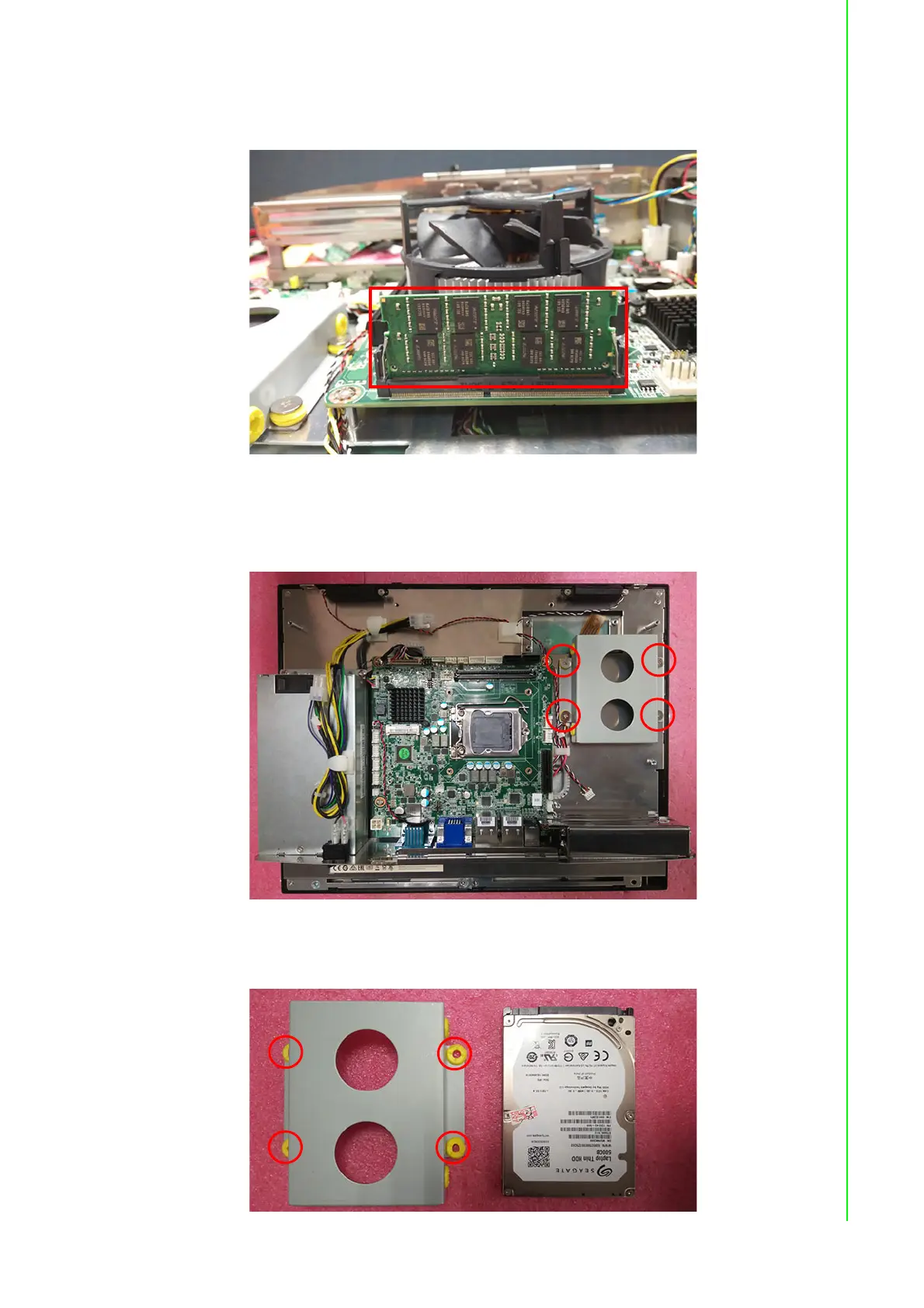

2) When the card is in the slot, apply firm pressure to the card until the clamps on
the side click and lock the card into place.
2.5.4 HDD Installation
1. Unscrew the four screws indicated in the image below. Then remove the HDD
bracket.
2. Place the HDD into the HDD bracket and affix it into place using four screws.
(HDD screws are included in the accessory box.)
