25 PPC-6151C/6171C User Manual
Chapter 2 System Installation and Setup
2.4.6 Connect the Daughter Board and Motherboard Using a Cable

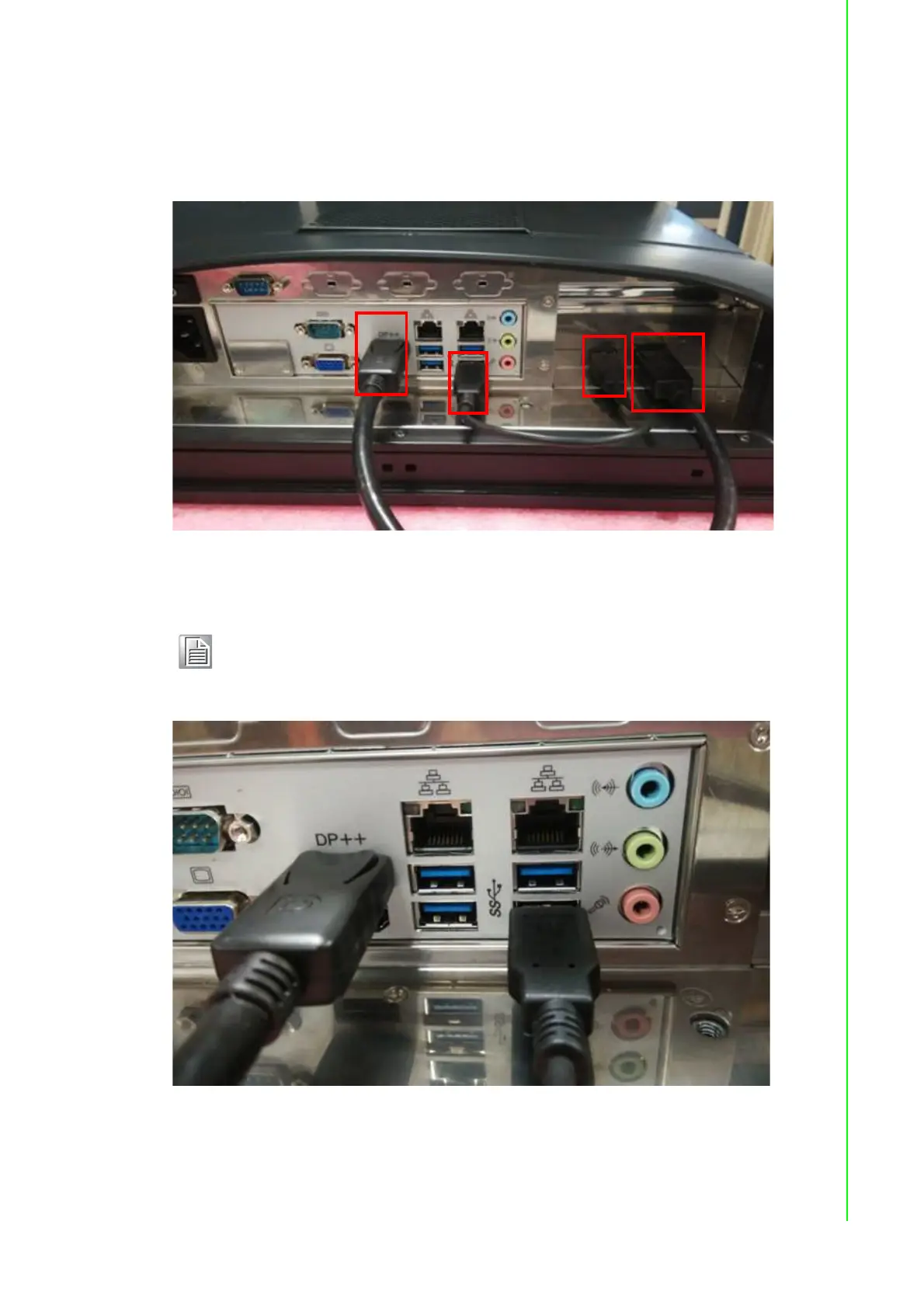

1. Connect the DP Input port with the motherboard DP port to enable the display.
Connect the USB Input port with a motherboard USB port to enable touch func-
tion. (Cables are included in the accessory box.)
2. Connect the motherboard.
Note! Use a DP cable to connect the motherboard DP port and the chassis DP
Input port. Use USB cable to connect one of the motherboard USB
ports. The motherboards must have a DP port.
DP
USB
DP
USB
