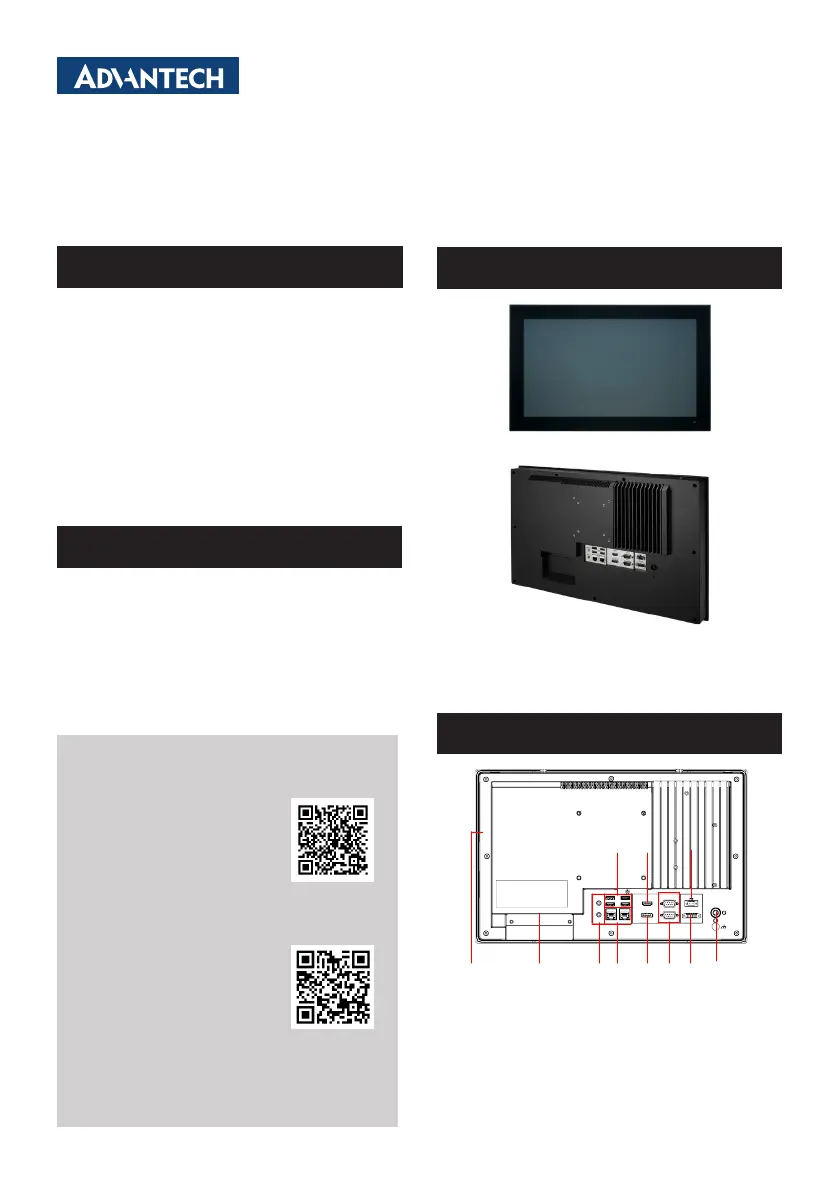

PPC-415W/421W Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x PPC-415W/PPC-421W startup manual
3. 2 x Phoenix connector
4. 10/12 x Mount brackets (12 for PPC-421W, 10 for
PPC-415W)
5. 10/12 x Mount screws (12 for PPC-421W, 10 for PPC-
415W)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-415W/PPC-421W 15.6”/21.5” Panel PC with
TFT LCD and 13th Gen Intel
®
Core
TM
i Processor
Startup Manual
Front View
Front View
Rear View
VESA mount screws: 4 x M4 screws
Screw depth: 8 mm (max.)
A. 1 x Expansion slot (PCI or PCIe x1)
B. 1 x Mic-In/Line-Out C. 2 x Intel Gigabit Ethernet
D. 1 x DisplayPort E. 2 x RS-232
F. 1 x Isolated RS-422/485 G. 1 x Power button
H. 1 x DC Input and AT/ATX switch
I. 1 x HDMI J. 3 x USB 3.2, 1 x USB 2.0
K. 2 x RS-232 (right side, optional)
A
B
C
D E F G
J I H
K
Packing List
For more information about this product, visit the
Advantech website at
http://www.advantech.com/products/fanless-panel-
pcs/sub_1-2jkjm3
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for PPC-415W/421W series, Rev. A0.
Part No. 2041421W00
Printed in China
Edition 1
November 2023
Appearance
I/O Layout
Software Installation
