PPC-415 TGL User Manual 8
2.1 A Quick Tour
Before you install the panel PC, please be familiar with the location and function of
each control key, driver, connector and port (please refer to the following content and

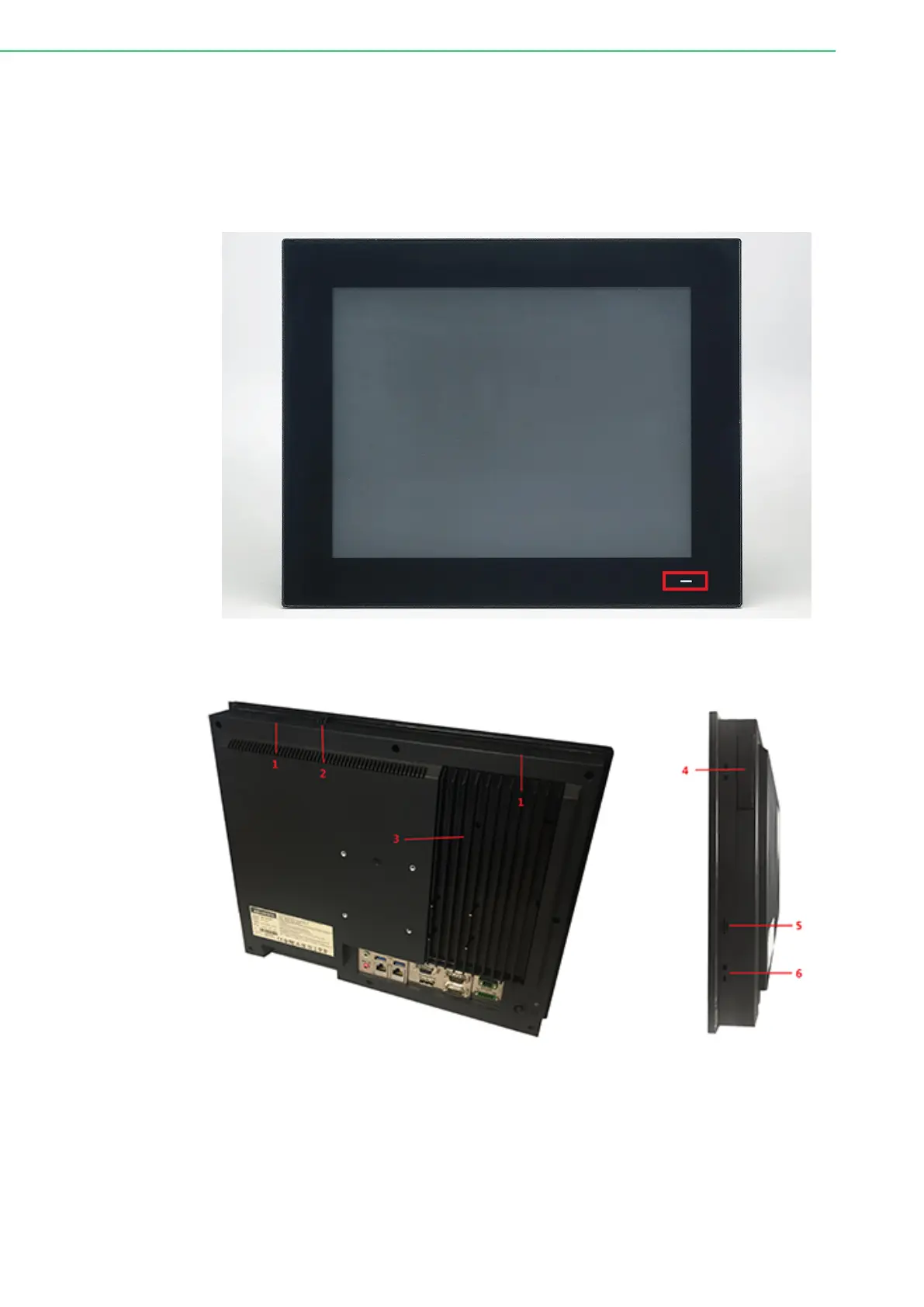

figures). When the panel PC is placed on the desk, its front panel is shown as Figure
2.1.
Figure 2.1: Front View
Power status LED: Off (S5) Orange; Sleep (S3) Orange; On (S0) Blue.
Figure 2.2: Side View
1. Antenna hole 4. Expansion slot for optional module
2. Quick installation clip 5. Speaker (left, right)
3. CPU heatsink 6. Hooking holes for panel installation (ten holes)
I/O connectors:
